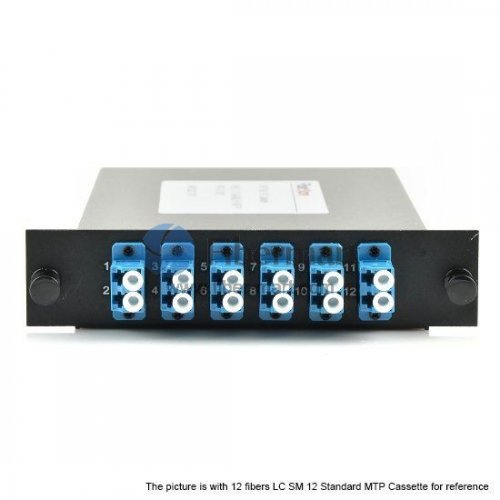

12 Fibers Single-Mode LC/SC/ST/FC 12 Strands MTP LGX Cassette

Product Item: #1224
P/N: FM12OSM-LGX-2MTP-XX
US$89.00

Please Choose:


Fiber Count






Order Today, Ship before 04/02/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

12 Fibers, MTP to LC/SC/ST/FC, 9/125 Singlemode Fiber, 12 Standard, LGX - MTP Cassette Panel



Fiber-Mart’s MTP Cassette Modules provide secure transition between MTP and LC,SC,ST or FC discrete connectors with two types.
The MTP modules are fitted with 12 or 24 fibers and have LC, SC adapters on the front side and MTP at the rear.

Cassette Type: Standard Cassette Type: Irregular shape


The term MTP is a registered trademark of US Conec, it has been the main trend in European and American areas.


Features

  • High performance zirconia sleeve adapters.
  • Rapid deployment Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes.
  • MTP interface MTP components feature superior optical and mechanical properties.
  • Optimized performance Low loss MTP Elite, discrete Premium connectors and OM4 fiber assures low insertion losses and power penalties in tight power budget, high-speed network environments.
  • High density 12 or 24 fiber cassettes can be mounted in 1U scaling up to 72 or in 4U scaling up to 288 discrete connectors.
  • Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.

Application

  • Data centers
  • LAN, WAN and SAN
  • Interoffice cross-connects
  • Campus environments



Mechanical Drawing:


1U slide and tilt panel - holds up to 3 cassettes (72 fibers) MTP Cassette housing in 4U Rack mount



MTP Cassette Structure

MTP cable connect with MTP Cassette MTP Harness cable housing in MTP Cassette



Specifications

Connector requirements
    Multimode Single mode
IL MTP Single max:0.35dB(L)
Single max:0.60dB(G)
Single max:0.35dB(L)
Single max:0.75dB(G)
LC max:0.10dB(L)
max:0.15dB(G)
MAX:0.3dB
RL MTP >20dB >60dB(8°Angle Polish)
LC >30dB >50dB(UPC)
>60dB(APC)
Mechanical MTP <0.2dB,200times insertion
LC <0.2dB,200times insertion
Environmental Working Temp. -20~ +60℃
Storage Temp. -40~ +70℃
Install Temp -5~ +50℃

Order Information

Order Information Packaging
Mode Type Fiber Standard Fiber Connector Fiber counts Polish Type 1. MTP-FC/SC/ST/LC Fiber Optic Cable
( The type of fiber mode according to
your choice MTP/MPO Cassettes )
2. FC/SC/LC/ST Fiber Adapter
3. MTP/MPO Fiber Adapter
4. LGX box
OM4 12 Fiber Standard
24 Fiber Standard
MTP-FC ( 12 fiber available )
MTP-SC (12 fiber available )
MTP-LC (12&24fiber available )
MTP-ST (12 fiber available )
12 Fibers
24 Fibers
UPC APC
OM3
OS1/2
OM2
OM1




Datasheet to Download

Customer Reviews

Displaying 1 to 3 (of 3 reviews)

by Andrea Ferri
Date Added: 08/16/2023

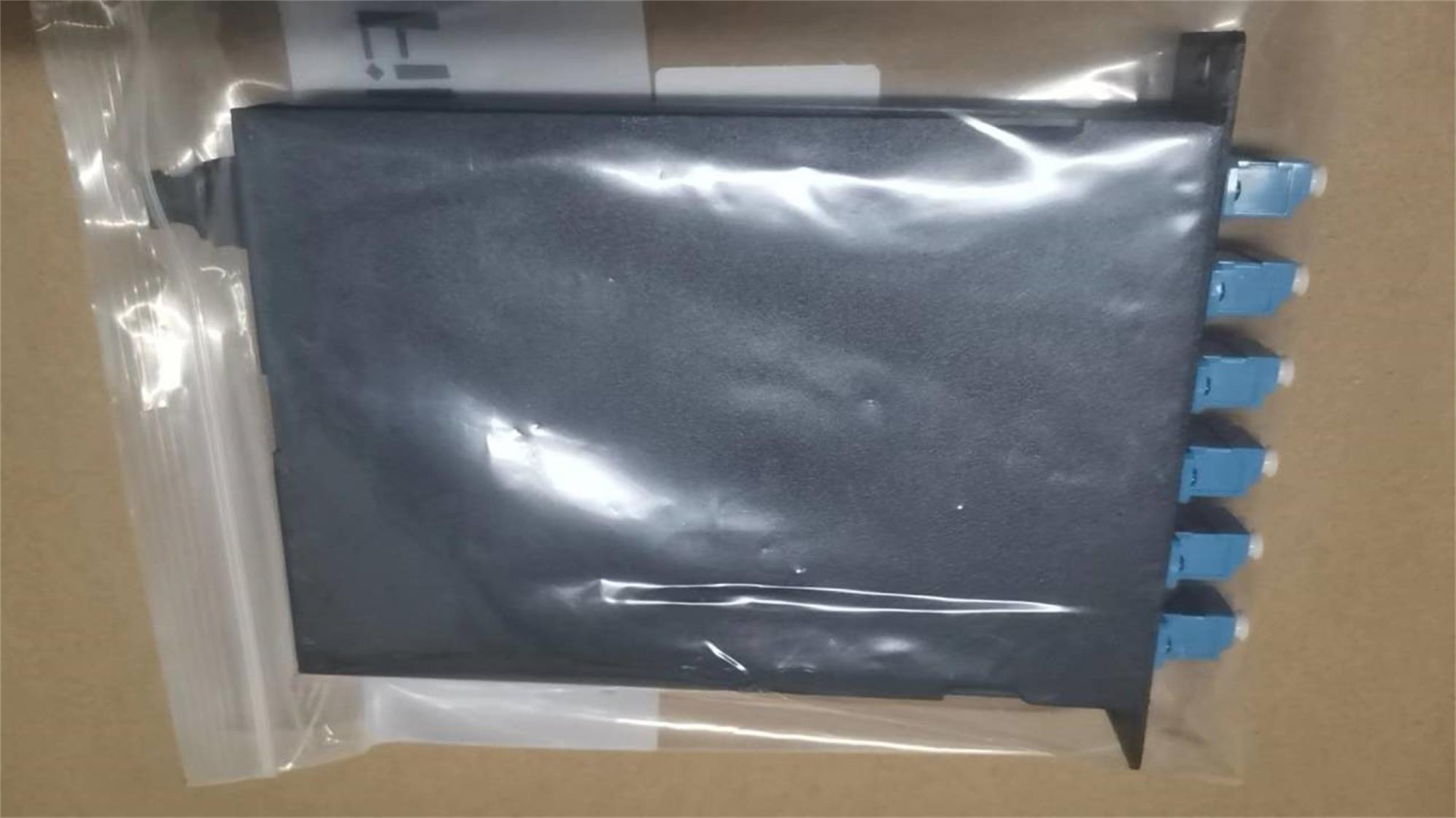

Good quality, the sc 12 fiber mtp box perfectly help me to manage and stably connect diverse cable.

Rating: 5 of 5 Stars [5 of 5 Stars]
12 Fibers Single-Mode LC/SC/ST/FC 12 Strands MTP LGX Cassette

by Panason
Date Added: 07/21/2023

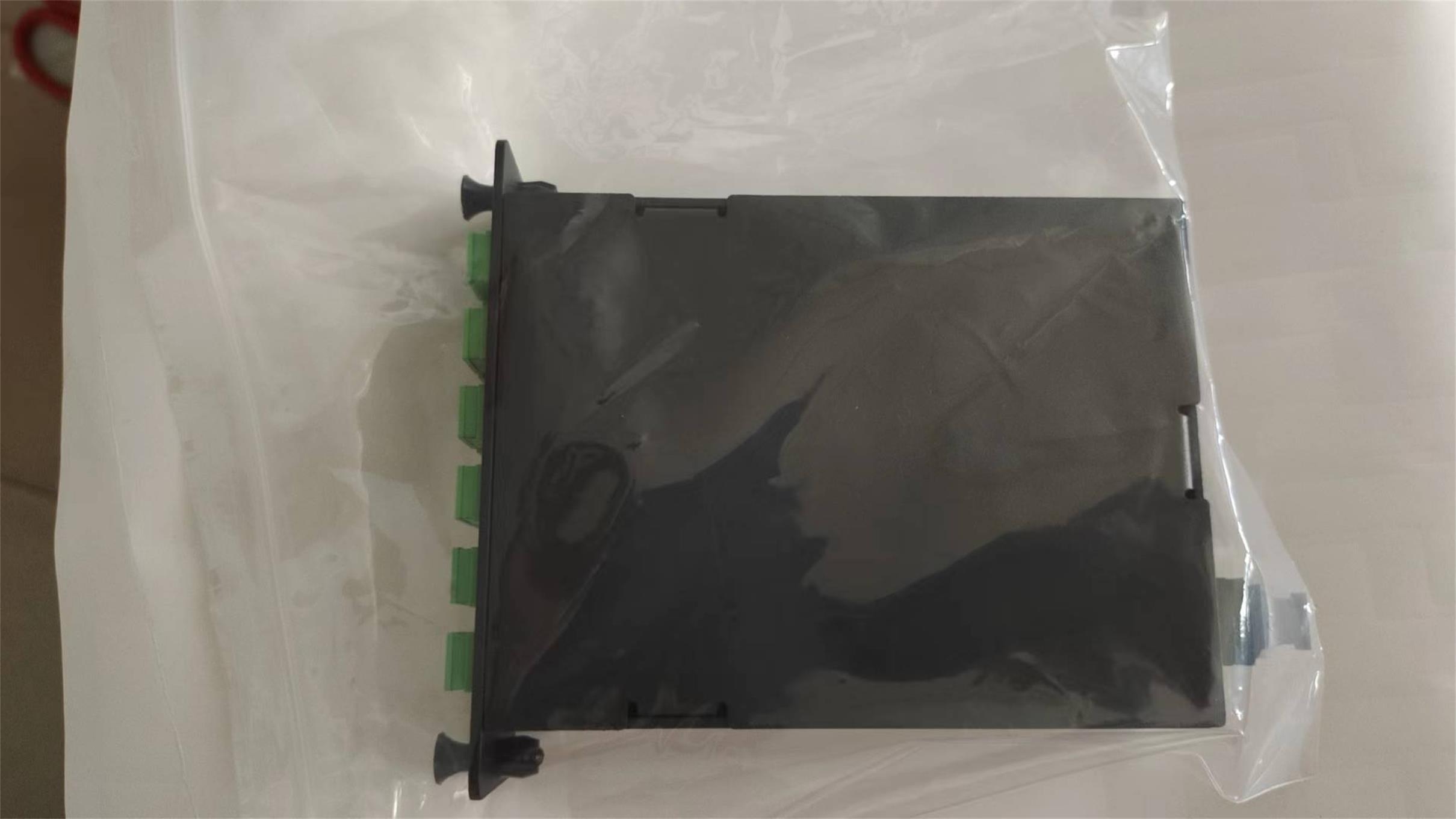

The sc 12 fiber mtp box just what we need in sc apc connector port, thanks team!

Rating: 5 of 5 Stars [5 of 5 Stars]
12 Fibers Single-Mode LC/SC/ST/FC 12 Strands MTP LGX Cassette

by Scarlet
Date Added: 06/08/2018
Saving my time of arrange the optical fibers, and it's easy to clean. Cooperated with my fiber adapter panel, much better than I expected~ When there's a promotion, I will buy more to reserve for backup.

Rating: 4 of 5 Stars [4 of 5 Stars]
