IP67 Harsh Environment OptoElectronic Hybrid Waterproof Type (Socket) to LC/SC/ST/FC Fiber Optic Patch Cable

Product Item: #14115
P/N: OEHW-S-LC-PP-FM
US$160.00

Please Choose:





Order Today, Ship before 04/03/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

Waterproof Fiber Optic Patch Cable, Opto-Electronic Hybrid Socket to LC/SC/ST/FC, Waterproof Type Connecting



This opto-electronic hybrid fiber optic patch cable combines the optical and electricity in one, with the simultaneous transmission of optical signals and electrical signals and special seal design, to ensure the using security and reliable connection, and has features such as waterproof and dustproof. In fiber-mart, we can provide customers 2 fibers/2 powers and 4 fibers/2 powers connector type fiber optic patch cables, and it can also be customized according to customer's requirements. It is a lightweight and very compact solution for stadiums, sports arenas or outside broadcast applications and is widely used in remote base stations and other long-distance transmission equipment.


Product Type Opto-Electronic Hybrid Cable Fiber Type (Default) Singlemode
Connector1 Opto-electronic Hybrid Socket Connector2 LC/SC/FC/ST
Fiber counts 2 fibers(Default),4 fibers Power Type 2 powers(Default), 4 powers
Cable Diameter 5mm, 7.5mm Connecting Type Waterproof Type
Connector Polish UPC Shell Material Stainless Steel
Insertion Loss ≤0.7dB Return Loss ≤0.50dB
Protection Rating IP67 Durability ≥ 500 cycles
Rated Voltage (Default) 220V Operating Temperature -40°C-85°C

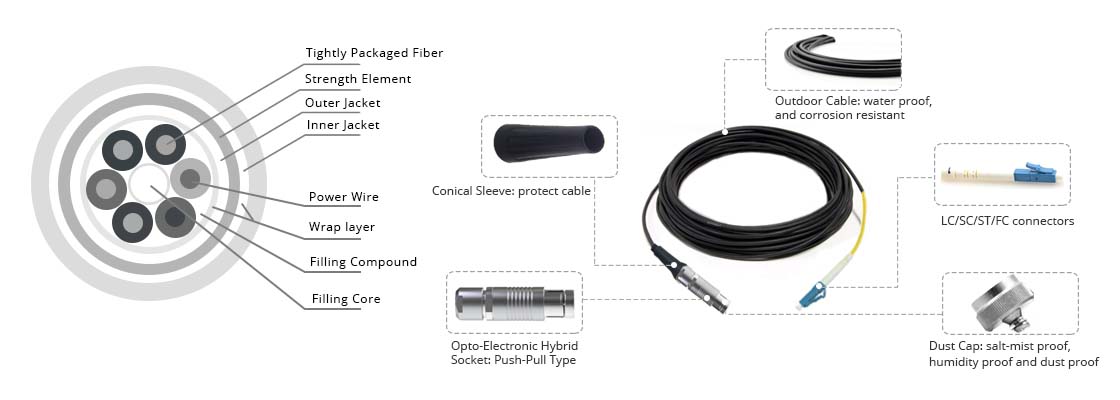

Cable Structure



Features

5.0mm-7.5mm cable diameters availableIP68 protection, salt-mist proof, and EMI protection Thread locking mechanism to ensure long-term reliable connection Opto-Electronic types are available in 2 fibers 2 powers, 2 fibers 4 powers, 4 fibers 2 powers

Easy, reliable and cost-effective installationConnector - push-pull opto-electronic hybrid waterproof socket to LC/SC/ST/FCOutdoor surveillance system power supply and signal transmissionSuitable for outdoor communication devices synchronize access to the optical and electrical signal



Safe Locking and Easy Installation

Compared to a traditional screw-thread mechanism, our patch cable is with unique, easy to use, push-pull locking system, which can reduce the time taken to achieve a robust connection. The push and pull system allows the connector to be mated by simply pushing the plug axially into the socket. Once firmly latched, connection cannot be broken by pulling on the cable or any other release sleeve.



Opto-Electronic Hybrid Waterproof Fiber Optic Patch Cable

In Fiber-MART.COM, the Opto-Electronic Hybrid waterproof fiber optic patch cable are execellent for using in all kinds of outdoor conditions, such as outdoor extreme environment using optical fiber communication, the military communication equipment, oilfield, mining communication connection, optical fiber sensor, remote wireless base station, video monitoring system, optical fiber sensor, railway signal control application, intelligent substation communication, and etc.



Kindly Remind

As plug should work with socket, this product should be ordered together with the first item Opto-Electronic Hybrid Screw Plug to LC/SC/ST/FC Waterproof Fiber Optic Patch Cable(Part Number: OEHW-P-S-ST-FS), thus not to order individually.



Opto-Electronic Hybrid Waterproof Fiber Optic Patch Cable

Item Parameter
Fiber Type(Default) Singlemode
Cable Diameter Range 5.0mm to 7.5mm
Shell Material Stainless Steel
Jacket TPU/LSZH
Ingress Protection Mated IP68
Insertion Loss ≤0.7dB
Return Loss ≤0.50dB
Tensile Strength(long term) 200N
Tensile Strength(short term) 600N
Durability ≥500 cycles
Rated Voltage(Default) 220V
Operating Temperature -40°C-85°C
Flammability UL 94 V0
Material Body Connector and Backshell Thermoplastic & halogen free


















Datasheet to Download
