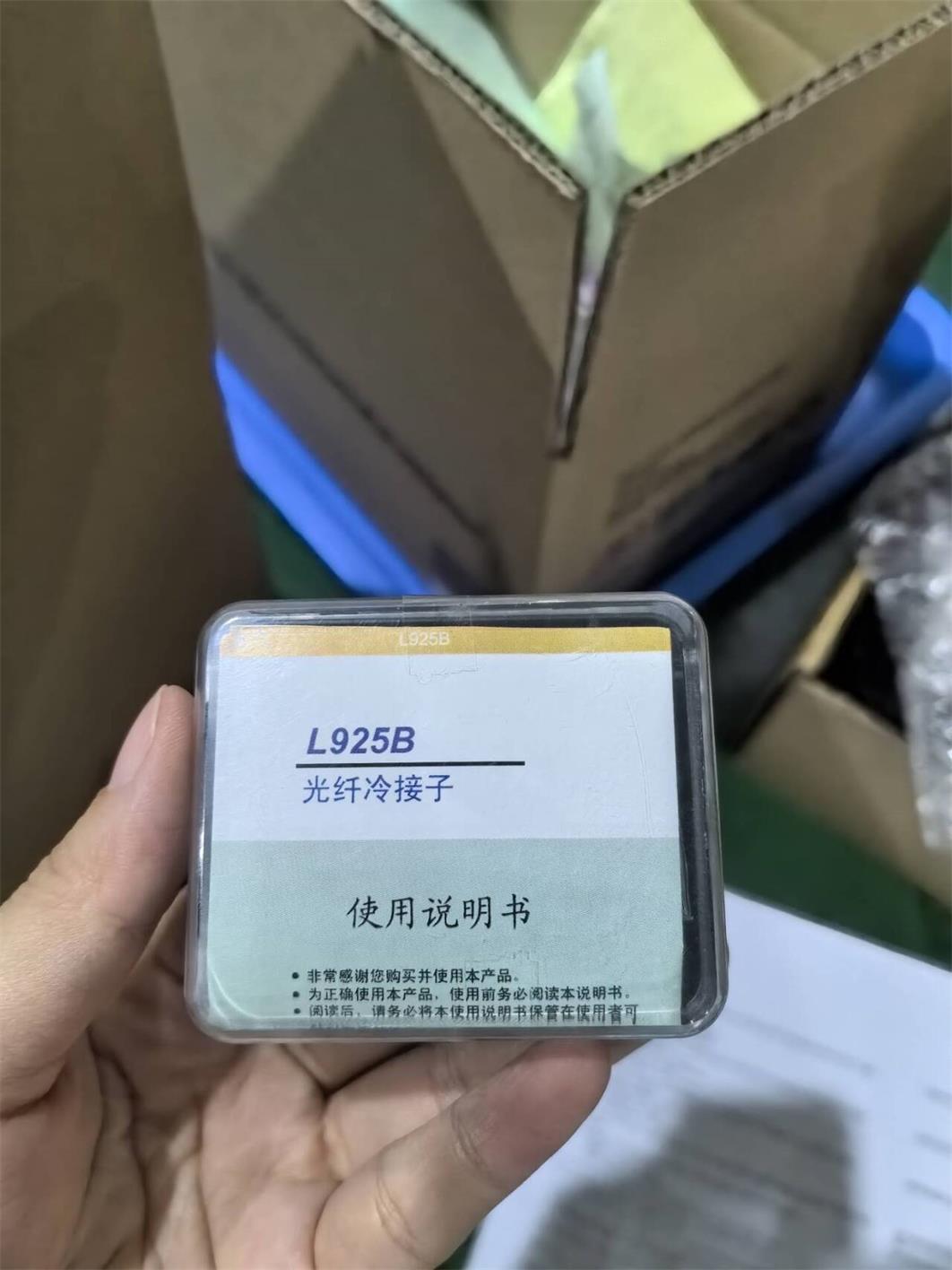

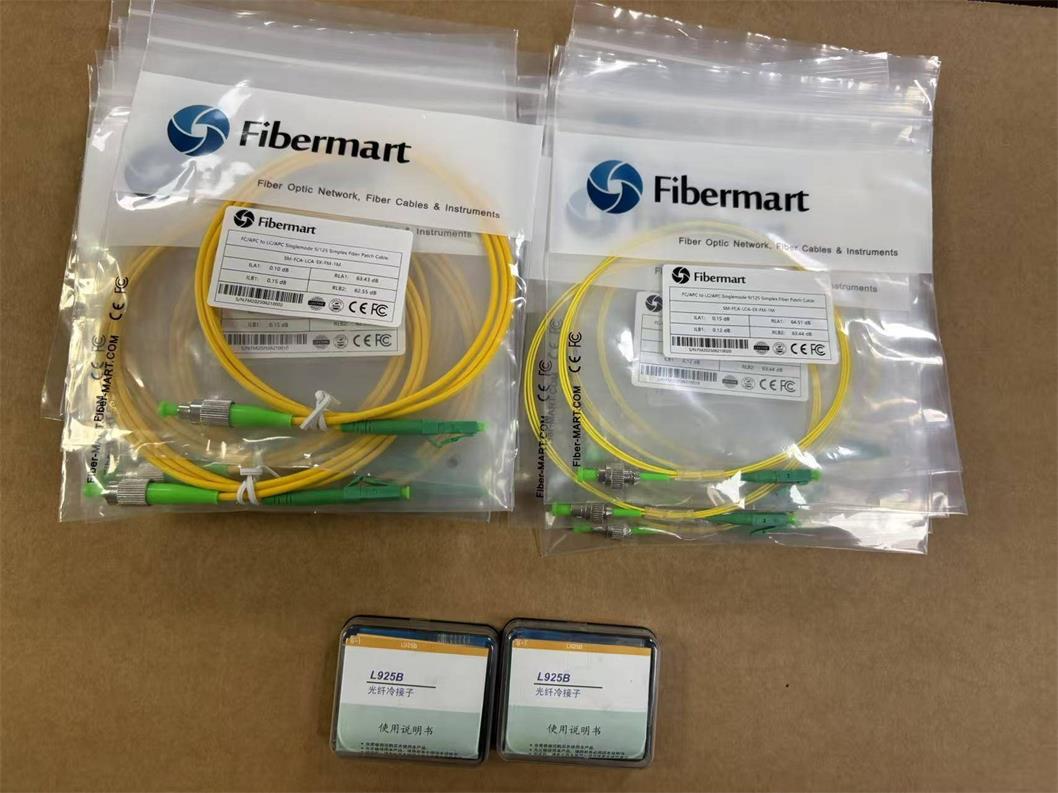

MC-L925B Optical Fiber Mechanical Splicer

Product Item: #10393
P/N: FM-MC-L925B-MS
US$2.82

Please Choose:





Order Today, Ship before 04/03/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

MC-L925B Optical Fiber Mechanical Splicer



Mechanical splicing maintains physical contact between mating fibers. Fiber can be spliced simply in this way in a very short time, a typical installation of Fiber-Mart Mechanical Splice takes less than two minutes. It can be used for 900/900µm ,250/250 µm, 250/900 µm fibers..



Features

  • Unique Box type crimping technology
  • Precision metal alloy components coaxial autocollimator on the core, excellent durable optical performance
  • Fiber axial solid fit, reducing the performance degradation caused by the loss of matching fluid
  • Intermittent fit connection technology to ensure signal transmission
  • Bare fiber, tight-clad and pigtail triple can fully meet environmental requirements for end-customer
  • Integrated shell protection, can be long-term used outside
  • High rate of success for installation and easy installation, the average connecting time is 150 seconds
  • It is applicable for optical fiber splicing and restoration for damaged lines.



Applications

  • FTTx fast field termination
  • Telecommunication Network
  • Data Communication Network



Specifications

ITEM Technical Parameters
Applicable for φ0.25 mm &φ0.90 mm Fiber
Optical fiber diameter 125μm ( 657A & 657B )
Tight buffer diameter 250μm
Fiber mode Single & multi mode
Operation time About 60s( no fiber cut )
Insert loss ≤ 0.1dB(1310nm & 1550nm)
Return loss ≥40dB
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Using temperature -40℃~+75℃
Repeatability(10 times) △ IL ≤ 0.2dB △ RL ≤ 5dB



Datasheet to Download
