100GBASE-ZR4 QSFP28 1310nm 80km DOM LC SMF Fiber Transceiver

Product Item: #17100

(0 Customer Reviews)

P/N: QSFP28-ZR4-100G-FM

US$2,299.00

Please Choose:

Compatible Brand

Other Brand & PN

Order Today, Ship before 06/14/2026, from U.S. or Hong Kong

Description
Datasheet
Tags
FAQ

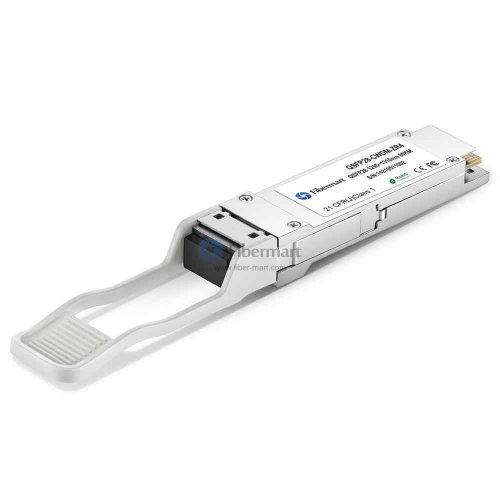

100GBASE-ZR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 80km, LC, DOM)

The 100GBASE-ZR4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 80km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, telecom and data center.

Spotlights

BOX Packaging, EML+APD, Built-in Dual CDR
≤6W Low Power Consumption
Fully Compatible With 200+ Vendors
For Data Center and Telecom Applications
Hot Pluggable QSFP28 MSA Compliant

Description

Part Number	QSFP28-ZR4-100G	Vendor Name	Fibermart
Form Factor	QSFP28	Max Data Rate	103.125Gbps (4x 25.78Gbps)
Wavelength	1310nm	Max Cable Distance	80km
Connector	LC Duplex	Cable Type	SMF
Transmitter Type	EML	Receiver Type	APD
DDM/DOM	Supported	Commercial Temperature Range	0 to 70°C (32 to 158°F)
TX Power	2~6.5dBm	Receiver Sensitivity	<-28dBm
Powerbudget	31dB	Receiver Overload	2dBm
Power Consumption	≤6W	Extinction Ratio	>6dB
Modulation Format	NRZ	CDR (Clock and Data Recovery)	TX & RX Built-in CDR
Packaging Technology	BOX Packaging	Host FEC	Supported
Bit Error Ratio (BER)	5E-5	Protocols	QSFP28 MSA Compliant
Application	100GBASE Ethernet, Data Center, Telecom	Warranty	5 Years

Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator according to the table.

Distance(100G)	≤ 1km	≤ 5km	≤ 10km	≤15km	≤ 20km	≤25km
Attenuator	10dB	10dB	8dB	6dB	4dB	2dB
Distance(112G)	≤ 1km	≤10km	≤15km	≤ 20km	≤30km
Attenuator	12dB	10dB	7dB	5dB	3dB

Datasheet

Part Number	Distance	Fibers	Port	Datasheet
QSFP28-SR4-100GFM	100m	MMF	MTP/MPO-12
QSFP28-PIR4-100GFM	500m	SMF	MTP/MPO-12
QSFP28-IR4-100GFM	2km	SMF	LC
QSFP28-LR4-100GFM	10km	SMF	LC
QSFP28-BLR4-100GFM	10km	SMF	LC
QSFP28-ER4-100GFM	40km	SMF	LC
