1m (3ft) CS™ UPC to LC UPC Flat Clip Uniboot Duplex OS2 SingleMode PVC (OFNR) 2.0mm Fiber Patch Cable, for 200/400G Network

Press Esc key to close this popup
  • 1m (3ft) CS™ UPC to LC UPC Flat Clip Uniboot Duplex OS2 SingleMode PVC (OFNR) 2.0mm Fiber Patch Cable, for 200/400G Network

1m (3ft) CS™ UPC to LC UPC Flat Clip Uniboot Duplex OS2 SingleMode PVC (OFNR) 2.0mm Fiber Patch Cable, for 200/400G Network

Product Item: #17162
P/N: HD-SM-UCS-ULCDX
Starting at: US$22.00

Please Choose:







Order Today, Ship before 06/17/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

CS UPC to LC UPC Uniboot Duplex 9/125μm Single Mode PVC Fiber Optic Patch Cable



Senko CS™ connector is designed for next generation 200/400G transceiver QSFP-DD and OSFP, meeting the requirement for CWDM4, FR4, LR4 and SR2, which is optimized as a robust higher density replacement over the duplex LC connector in both the rack and structured cabling environments.



The CS™-LC uniboot duplex single mode fiber optic patch cables are available to interconnect or cross connect fiber networks. It is also backward compatible with 40Gb and 100Gb networks, so you can future-proof your current application for an eventual upgrade to 400Gb.



Description

Connector Type
Senko CS™ to LC Flat Clip
Polish Type
UPC to UPC
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
400G Ethernet Distance
2km with OSFP-400G-2FR4
Glass Fiber
Corning Fiber
Insertion Loss
CS™≤0.2dB, LC≤0.2dB
Return Loss
≥50dB
Fiber Grade
G.657.A1 (Compatible with G.652.D)
Minimum Bend Radius
10mm
Attenuation at 1310 nm
0.4 dB/km
Attenuation at 1550 nm
0.22 dB/km
Fiber Count
Duplex
Cable Diameter
2.0mm
Cable Jacket
PVC
Polarity
A(Tx) to B(Rx)
Operating Temperature
-20 to 70°C
Storage Temperature
-40 to 80°C
Note: CS™ is a trademark of Senko Advanced Components, Inc. 2016-2020 © All Rights Reserved.


Product Highlights

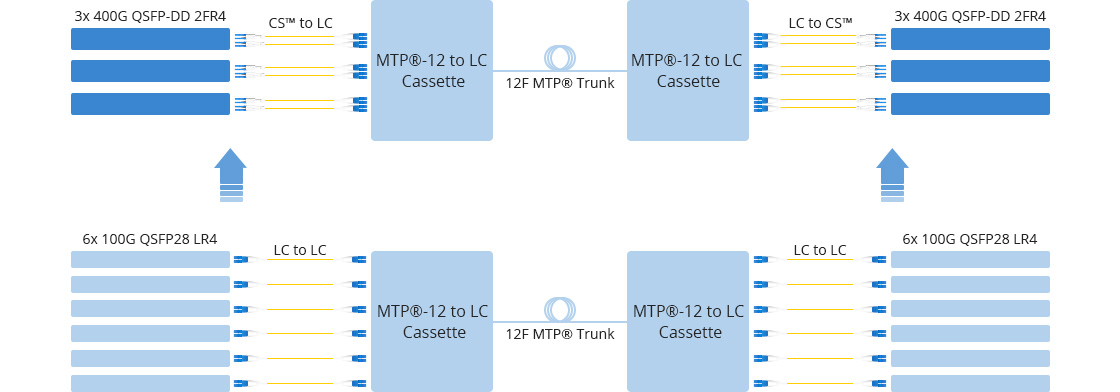

Upgrading to 400G Links with CS™ to LC Fiber Patch Cables

The CS™ to LC uniboot fiber optic patch cables allow you to upgrade the network to 400G links without making changes to the existing fiber cable infrastructure.



cs to lc patch cable

For Next Generation Beyond 100G High Density

Reach Higher Density with CS™ Connector  40% size reduction compared to LC duplex. Double the density in patch panel compared to LC.

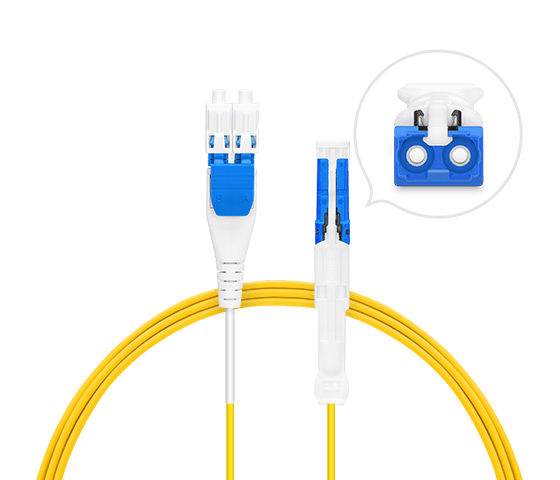

cs lc patchcord

High Performance SENKO CS™ Connector
cs lc fiber cable



SENKO CS™, 0.3db low insertion loss

48mm push-pull tab for high density applications

One piece duplex dust cap for easy operation
2mm slim uniboot design reducing cable congestion
Corining fiber, 10mm min. bend radius
