1x4 Fiber PLC Splitter with Fan-out Kits

Product Item: #2021
P/N: PLC-F-1X4
US$14.03

Please Choose:








Order Today, Ship before 04/02/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

1x4 PLC Splitter, G.657A Fiber 900μm for input and output, FC, SC, LC or ST connectors for choice.



1x4 PLC Splitter divides or combines a signal inputs to 4 outputs.

Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Fiber-Mart PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
PLC splitter with fan-out is mainly used for 0.9mm optical fiber where the ribbon fiber can be converted to 0.9mm optical fiber through fan-out, Fiber adapters can be provided both for the input and out put ends of this kind of splitters so that they can be used directly to meet the low demand on the size of the splitter, for instance all kinds of precision splitter insertion box and splitter wall-mounted cabinets.
Fiber-Mart provides a various of 1xN and 2xN PLC fanout splitters, including including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 with fanout type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 with fanout type PLC splitters.



Fanout PLC Splitter Features

  • Come with Fan-out kits
  • Good uniformity and low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Mechanical
  • Stability Telecordia GR-1221 and GR-1209
  • Components through TLC-Certified,Conform to YD1117-2001
  • Operating environment: -40ºC to +85ºC
  • High Polarization Extinction Ratio & Excellent Uniformity
  • Fiber input: 900μm (Default)
  • Fiber output: 900μm
  • G.657A Fiber



Fanout PLC Splitter Applications

  • Fiber to the point (FTTX)
  • Fiber to the home (FTTH)
  • Passive optical networks(PON, GEPON)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Test equipment



Packaging

(Shipping fee is calculated by volume weight)A.Standalone carton box
B.Economical packing -- One carton box contains several items

Fiber-Mart Fiber-Mart
A B



Mechanical Drawing



V.S FBT Coupler, the advantages of PLC are as follows

  • The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength
  • High spectral uniformity, can splitter the signals on average
  • Compact structure, small volume
  • The cost advantage is very obvious on many splitter channels



Order Information

Fiber-Mart provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2x64 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. 900μm for input and output is the default, 250μm is also available for no connectors.
d. The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.

  • Our Factory

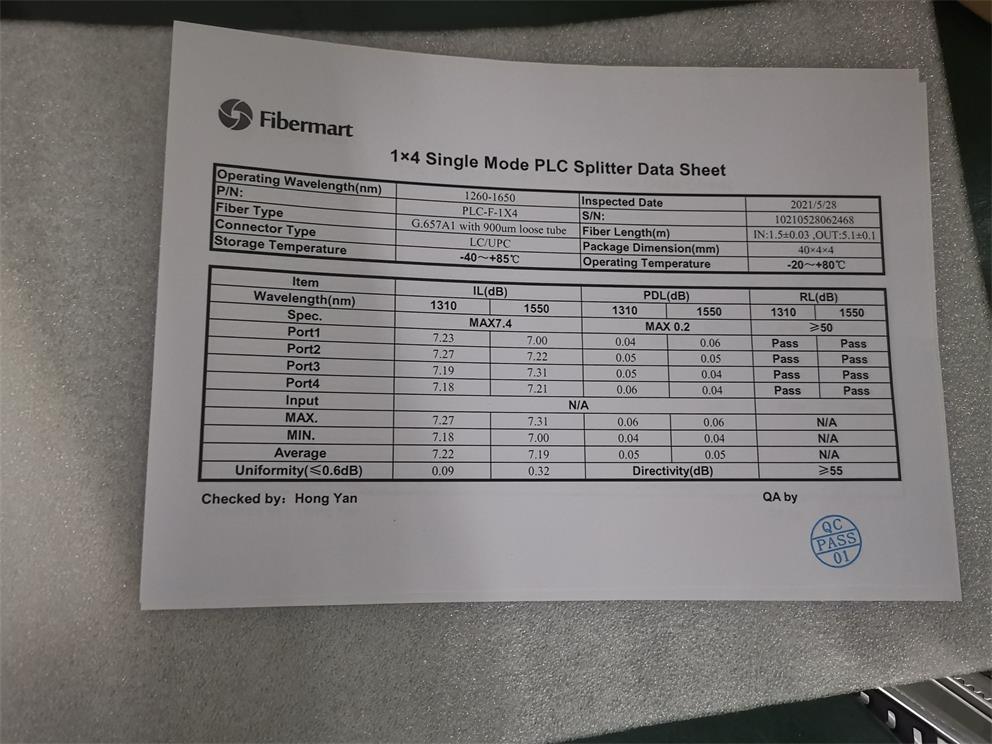

Parameter Port Configuration
  1X2 1X4 1X8 1X16 1X32 1X64
Fiber Type G.657A
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 3.9 7 10.2 13.2 16.2 19.7
Max 4.2 7.4 10.7 13.7 17.1 21.2
Loss Uniformity (dB) Max 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) Min 50 50 50 50 50 50
PDL (dB) Max 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) Min 55 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.5 0.5 0.8
Temperature Dependent Loss (-40~+85°C)  Max 0.5 0.5 0.5 0.8 0.8 1
Operating Temperature (°C) -40~+85
Storage Temperature (°C) -40~+85







Customer Reviews


by Thomas Fazzio
Date Added: 05/31/2021

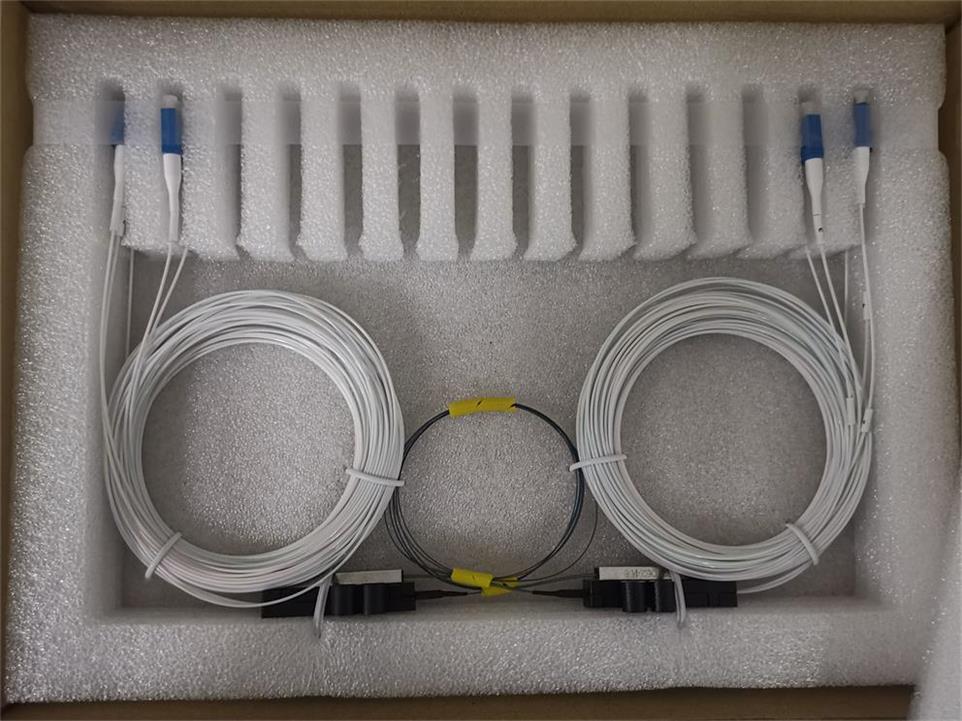

Excellent 1x4 plc splitter with fanout kit, lc upc connectorize, good!

Rating: 5 of 5 Stars [5 of 5 Stars]
