1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box

Product Item: #2047
P/N: PLC-U-1x64
US$281.00

Please Choose:








Order Today, Ship before 03/24/2024, from U.S. or HK
Discount Prices
Quantity Unit Price Discount
20-99 US$266.95 5%
100+ US$252.90 10%
  • Description
  • Datasheet
  • Tags

1x64 PLC Splitter, Rack Mount 1RU 19' Rack package, G.657A Fiber for Input & Output, Custom FC, SC, LC or ST connectors for choice.



1x64 PLC Splitter Rack Mount divides or combines a signal inputs to 64 outputs.

Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. PLC splitter are based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. Fiber Splitter Box
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Fiber-Mart PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
Fiber-Mart provides a various of 1xN and 2xN PLC 1U rack mount type splitters, including 1x2, 1x4, 1x8, 1x16,1x32,1x64 1U rack mount type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 1U rack mount type PLC splitters.







1U Rack Mount PLC Splitter Features

  • Good uniformity and low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Mechanical
  • Stability Telecordia GR-1221 and GR-1209
  • Components through TLC-Certified,Conform to YD1117-2001
  • Operating environment: -40ºC to +85ºC
  • High Polarization Extinction Ratio & Excellent Uniformity
  • G.657A Fiber



1U Rack Mount PLC Splitter Applications

  • Fiber to the point (FTTX)
  • Fiber to the home (FTTH)
  • Passive optical networks(PON, GEPON)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Test equipment



Mechanical Drawing


This mechanical drawing is 1U rack mount box, only for your reference
Fiber-Mart offer LC, SC, FC or ST adapters for choice. APC or UPC on customer request.

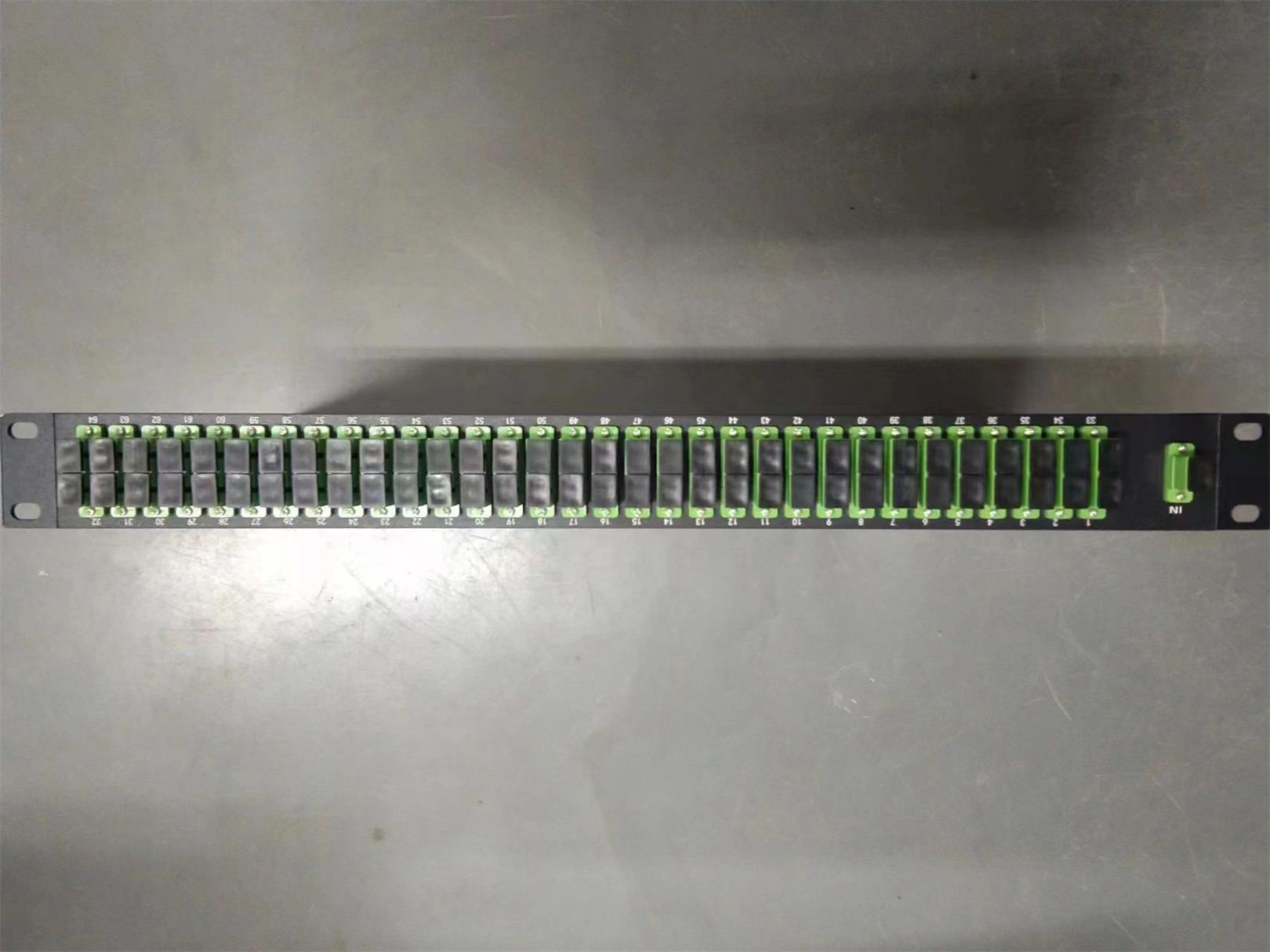

Sample Picture



PLC Splitter V.S FBT Coupler, the advantages of PLC Fiber Splitter are as follows

  • The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength
  • High spectral uniformity, can splitter the signals on average
  • Compact structure, small volume
  • The cost advantage is very obvious on many splitter channels



Order Information

Fiber-Mart provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. The length of pigtail can be also customized; welcome to contact us for more details.

  • Fibermart Factory




































Specifications

Parameter Port Configuration
  1X2 1X4 1X8 1X16 1X32 1X64
Fiber Type G.657A
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 3.9 7 10.2 13.2 16.2 19.7
Max 4.2 7.4 10.7 13.7 17.1 21.2
Loss Uniformity (dB) Max 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) Min 50 50 50 50 50 50
PDL (dB) Max 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) Min 55 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.5 0.5 0.8
Temperature Dependent Loss (-40~+85°C)  Max 0.5 0.5 0.5 0.8 0.8 1
Operating Temperature (°C) -40~+85
Storage Temperature (°C) -40~+85




Customer Reviews

Displaying 1 to 10 (of 14 reviews)

by Ben Lamperd
Date Added: 03/15/2024
Fibermart 1x64 plc splitter rack always working fine in our ftth, they built in good quality with all pass!

Rating: 5 of 5 Stars [5 of 5 Stars]
1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box

by Terry
Date Added: 10/12/2023
Arrived in good condition, all splitter port working fine and quality is good!

Rating: 5 of 5 Stars [5 of 5 Stars]
1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box

by Deion Wallace
Date Added: 08/16/2023
Fast shipping and high quality, the 1x64 plc splitter not only stable connection but also low loss.

Rating: 5 of 5 Stars [5 of 5 Stars]
1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box

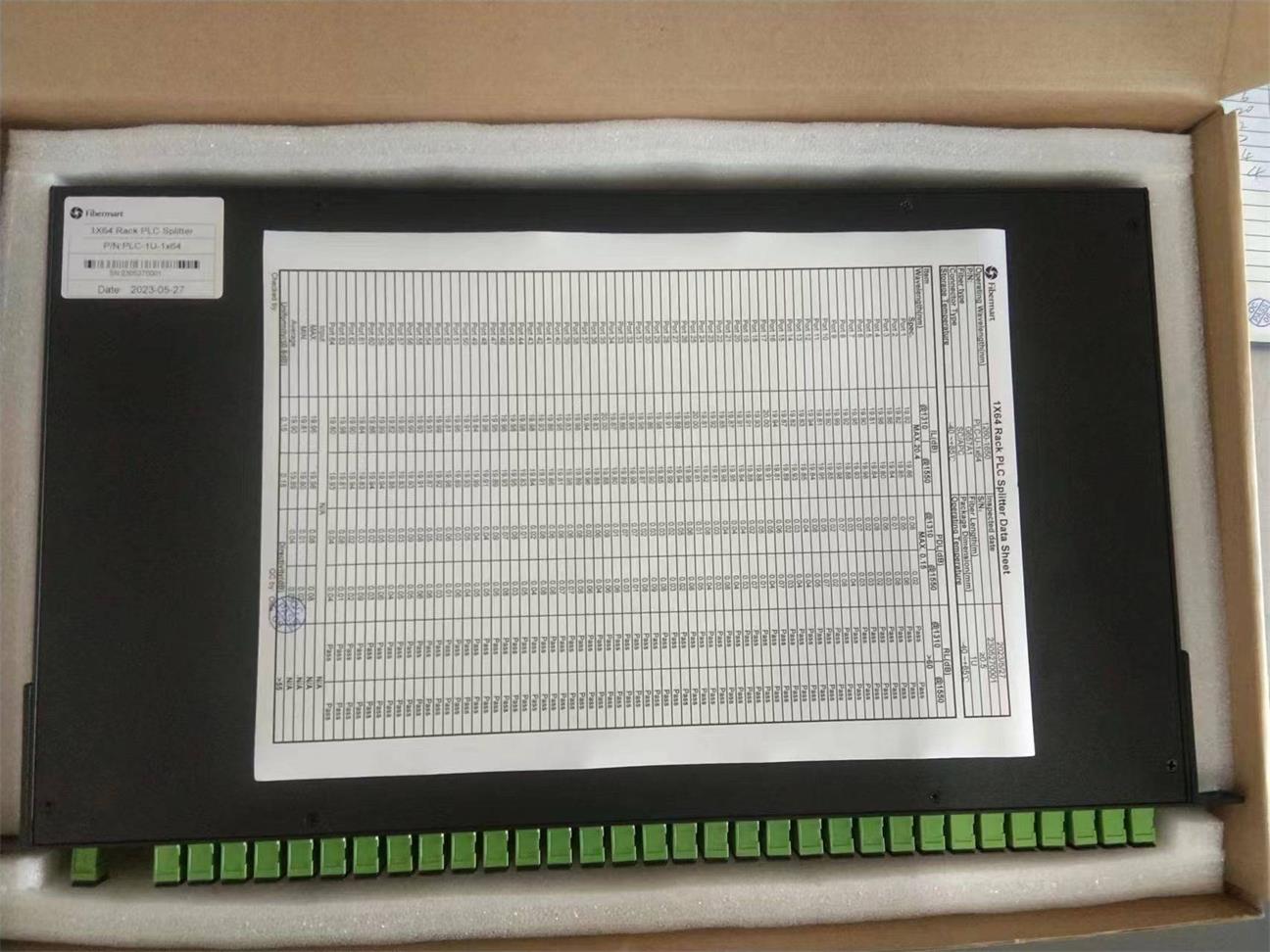

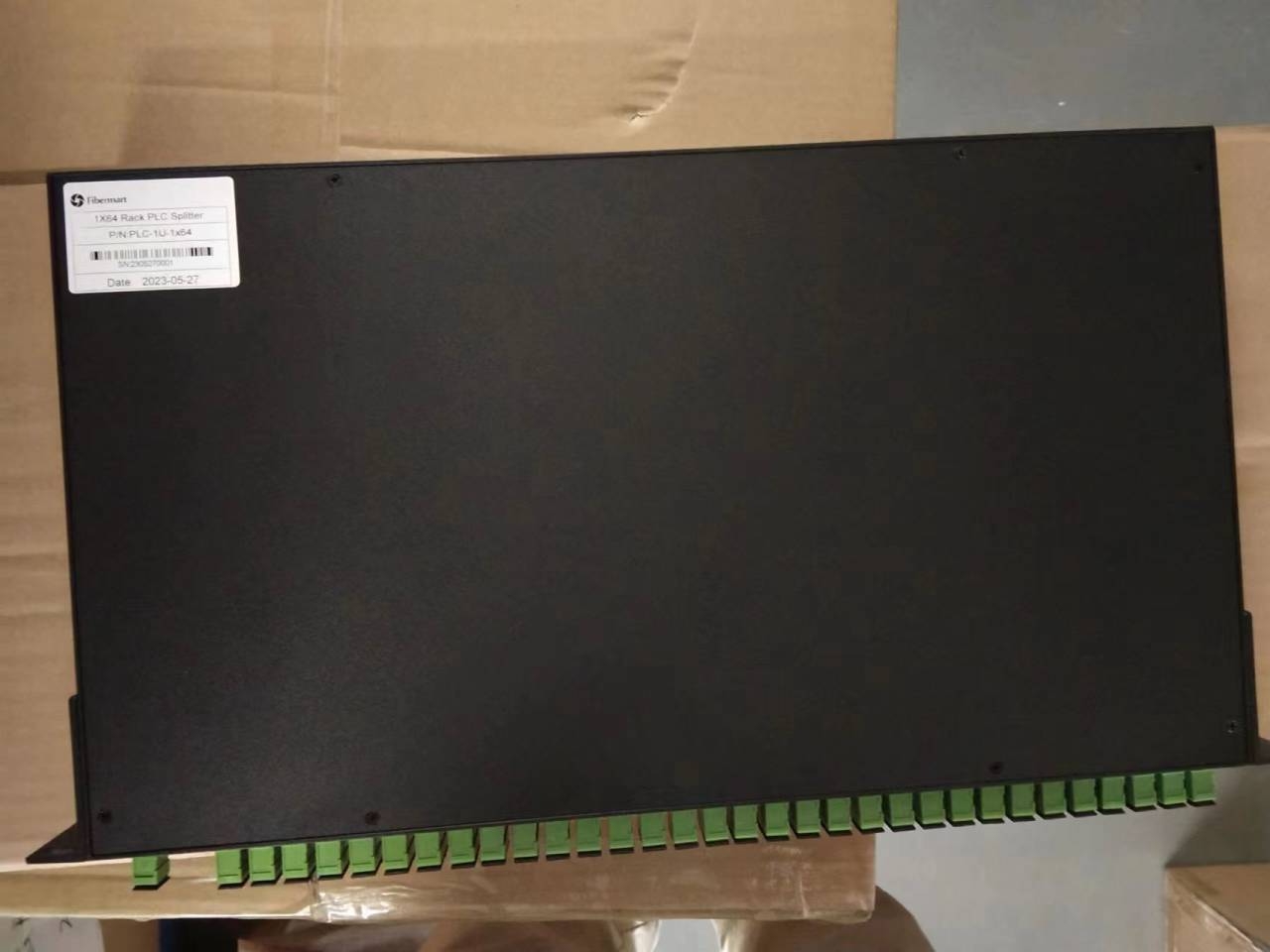

by Perony Frank
Date Added: 05/29/2023
Well built and fast shipping for our 1x64 plc rack splitter, great one in good connections, sc apc all port working fine!

Rating: 5 of 5 Stars [5 of 5 Stars]
1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box

by Michael
Date Added: 05/06/2023
Nice quality 1x64 plc spliiter rack with sc apc port, all port comes in low loss and quality connection, good package and fast shipping!

Rating: 5 of 5 Stars [5 of 5 Stars]
1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box

by Watana
Date Added: 12/20/2022
As good as we want 1x64 plc splitter rack in sc apc, low loss in good package, fast delivery and easy to use!

Rating: 5 of 5 Stars [5 of 5 Stars]
1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box

by Judy Christina
Date Added: 08/17/2022
Super quality 1x64 plc splitter we got from fibermart, well built in every detail, low loss and high quality, great!

Rating: 5 of 5 Stars [5 of 5 Stars]
1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box

by Car Limite
Date Added: 06/20/2022
Super nice 1x64 plc splitter from fibermart, low loss and high quality, lc upc type working great!

Rating: 5 of 5 Stars [5 of 5 Stars]
1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box

by Tracy Cox
Date Added: 03/11/2022
Well built 1x64 plc splitter with sc apc connector adapters, we tested it as good as they told, Great quality SC splitters, exactly what I need. I planned to buy some ABS module splitters, but could not find the suitable trays for them. it had a fixed and quality package and no need to buy extra trays, really nice.

Rating: 5 of 5 Stars [5 of 5 Stars]
1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box 1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box

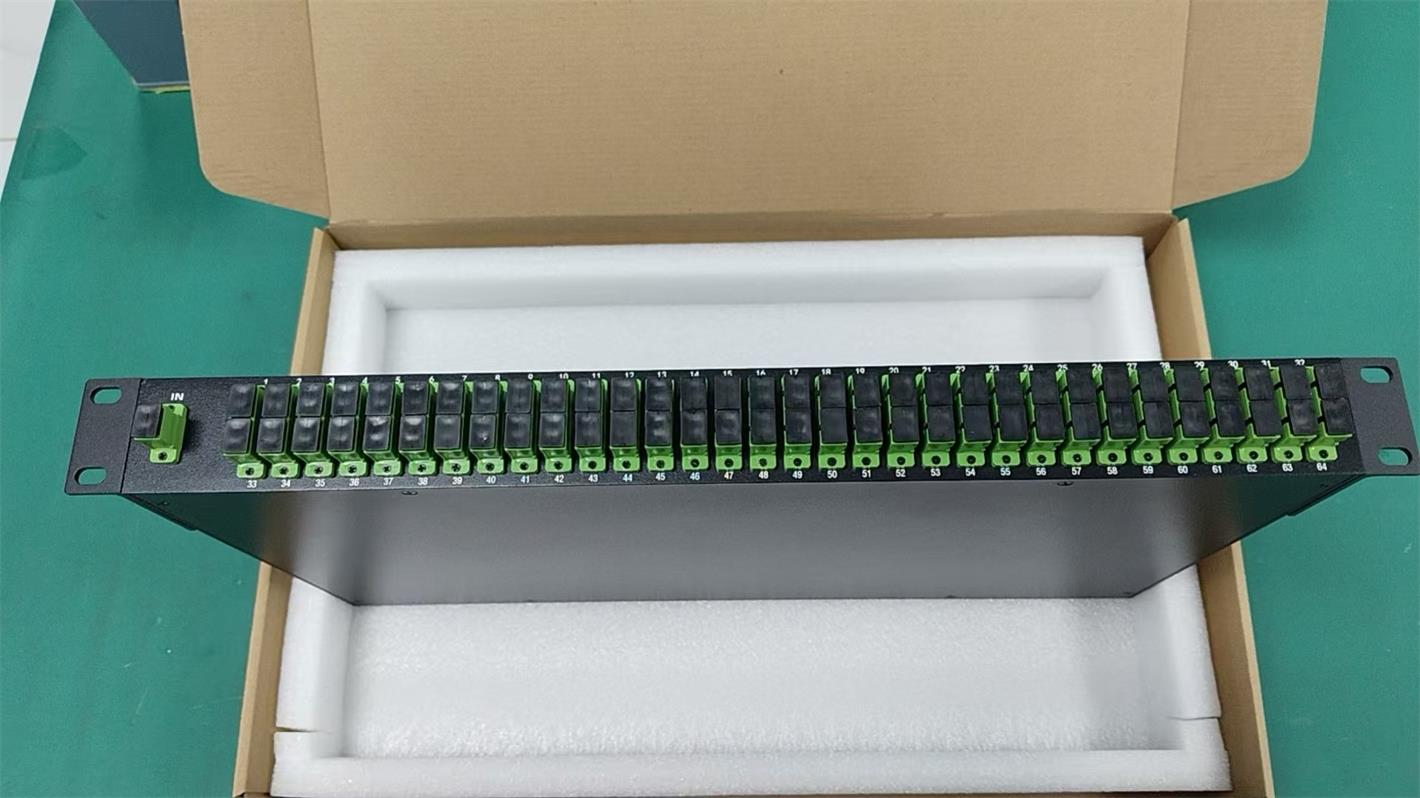

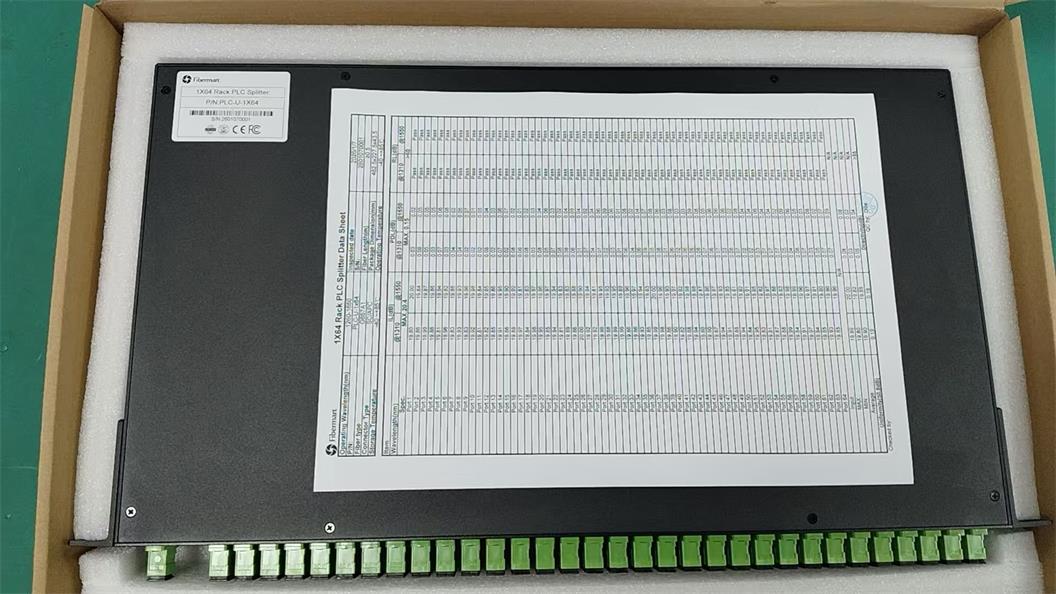

by James Harrison
Date Added: 01/07/2022
The 1x64 fiber splitter rack is just what I need. The connection sc/apc is solid and the signal is stable. So to me great buy and would recommend to anyone who need it!

Rating: 5 of 5 Stars [5 of 5 Stars]
1x64 Fiber PLC Splitter with 1U 19 Rack Mount Metal Fiber Splitter Box
