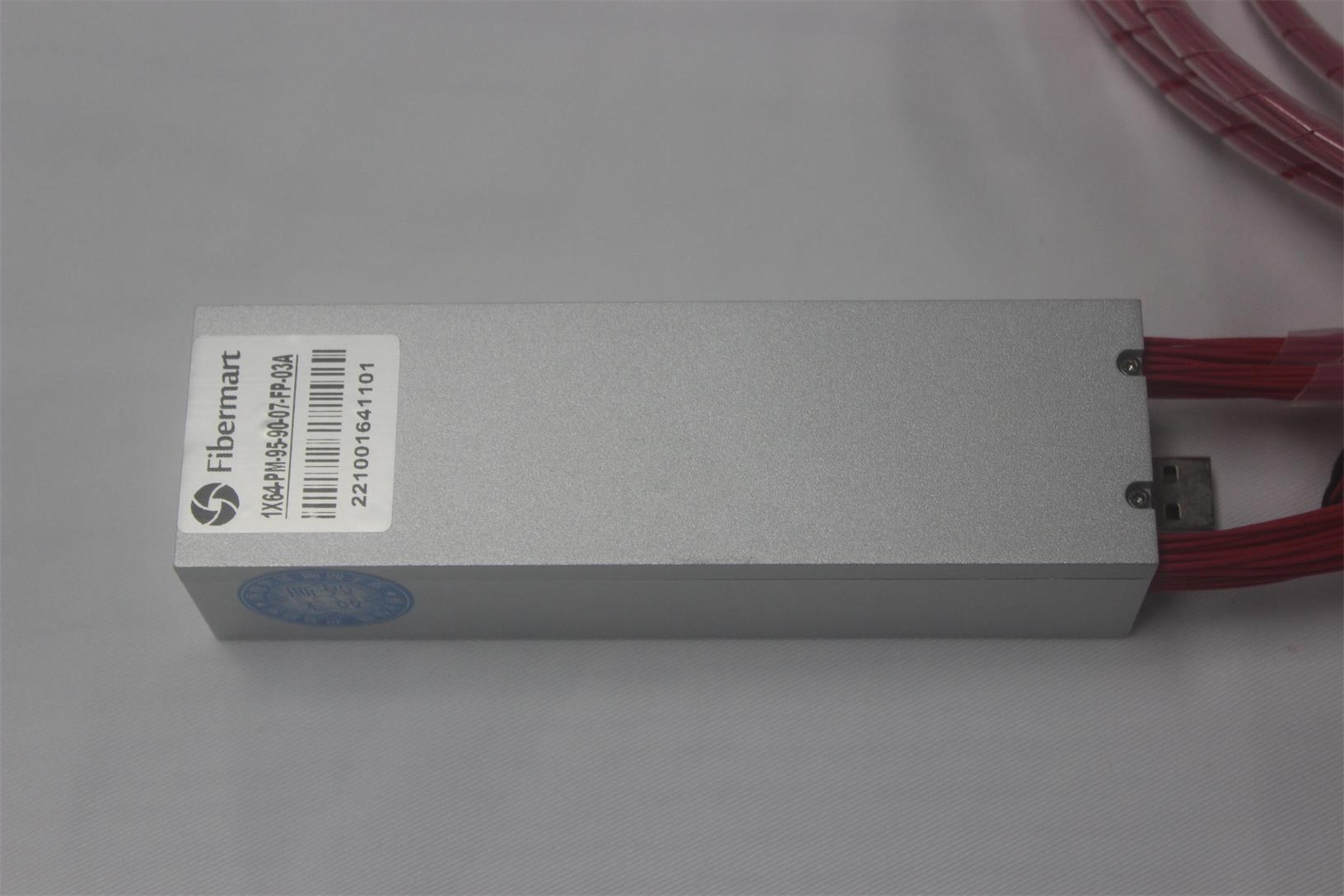

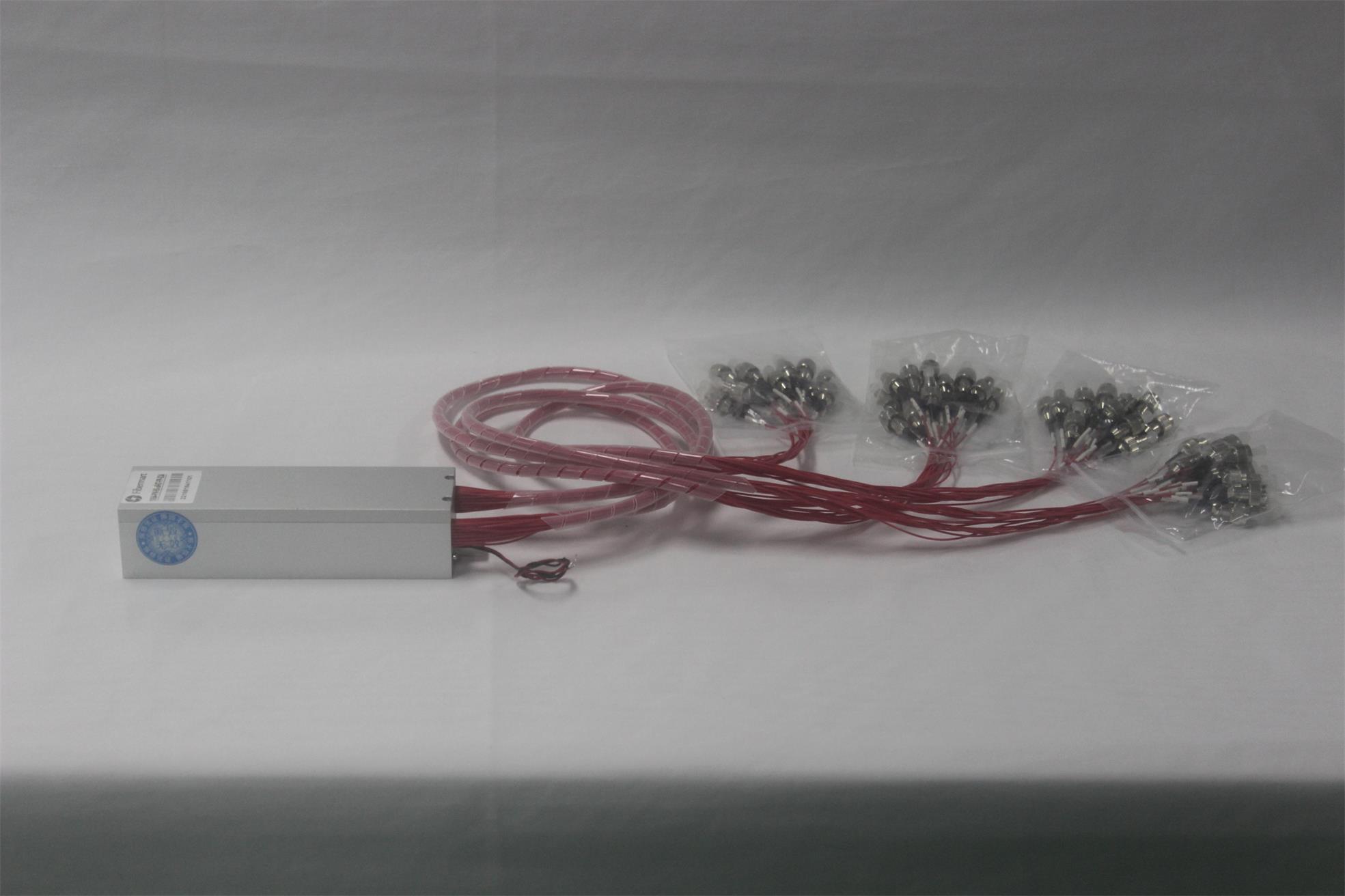

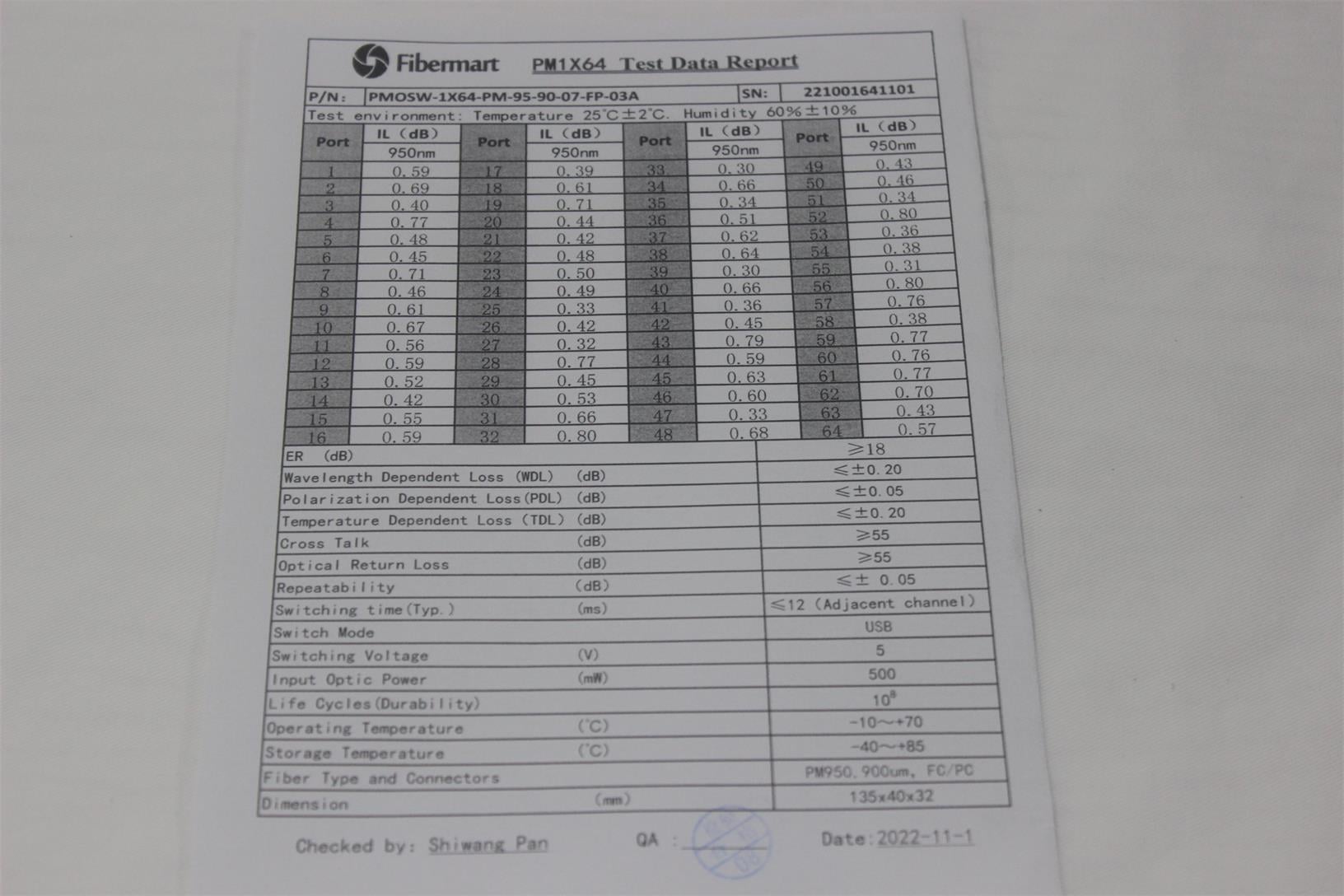

1x64 PM Optical Switch PM780nm 5V Non-Latching 900um 1m length

Parameters

PMOSW-1xN

Insertion loss

dB

1<N≤32

32<N≤64

Typ:0.6  Max:1.0

Typ:1.0  Max:1.5

Wavelength range

nm

532~1300, 850~1310

1260~1660

Testing wavelength

nm

532/650/780/850/980/1300

1310/1490/1550/1650

Return loss

dB

SM≥55,MM≥35

Crosstalk

dB

≥-80

Extinction Ratio (dB)

dB

≥ 18

WDL

dB

≤0.25

TDL

dB

≤0.30

Repeatability

dB

≤±0.05

Lifetime

cycle

10000000

Optical input power

mW

≤1000

Switching time

ms

≤10 (Sequence switch time of adjacent channel)

Operating temperature

°C

-40~+70

Storage temperature

°C

-40~+85

Power supply

V

+5

Dimension

mm

135X40X32 (N<32),135X64X32 (N<64)

Pin

I/O

Signal Name

Description

1

Input

/RESET

TTL, Low level reset to channel 0. High level means channel.

selection bits are effective.

2

Input

D0

TTL,D0 is low, and D4 is high, Example：00000b=1 CH;11111b=32 CH.

3

Input

D1

4

Input

D2

5

Input

D3

6

Input

D4

7

Out

/READY

TTL, Ready (High=Not ready, Low=Ready)

8

Out

ERROR

TTL, Error (High=Error, Low=No error)

9

Power in

GND

Ground

10

Power in

5V

5.0±5% VDC Power Supply (max 500mA)

11

S-

RS232(485)

RX  (B)

12

S+

RS232(485)

TX  (A)

N

A

B

C

D

E

F

G

Fiber Type

Test Wavelength

sheath

Fiber Length

Connector

Control port

Size

1 ~ 64

SM: SM, 9/125

M5: MM50/125

M6: MM62.5/125

PM: PM Fiber

HI: HI1060

850: 850nm

1310: 1310nm

1550: 1550nm

13/15:1310/1550nm

90: 900um

05: 5±5cm

10: 1±5cm

15: 1.5±5cm

OO: None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

LP: LC/PC

LA: LC/APC

ST:ST/PC

01: TTL+RS232

02:TTL+RS485

03:USB

A:135X40X32

B:135X64X32
