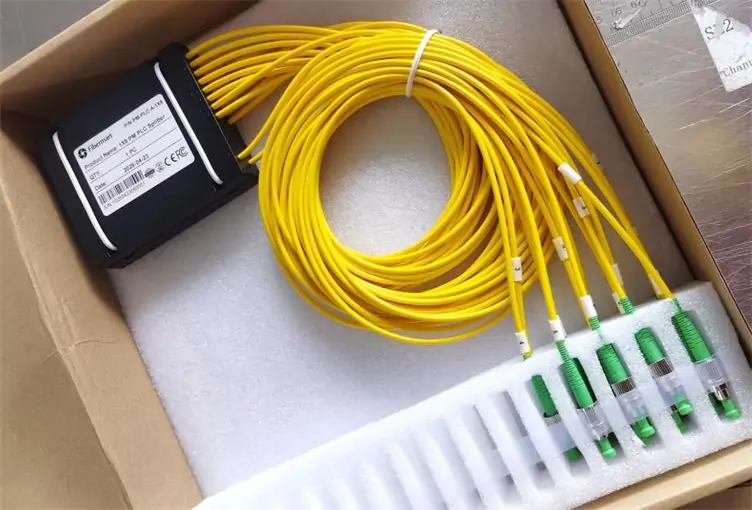

1x8 Fiber Polarization Maintaining(PM) PLC Splitter Slow Axis w/ ABS Box pm splitter

1x8 Fiber Polarization Maintaining(PM) PLC Splitter Slow Axis with Plastic ABS Box Package, Pm splitter

Polarization Maintaining Planar Light wave Circuit (PLC) splitter is a type of polarization maintaining optical power management device that is fabricated using silica optical waveguide technology. PM PLC splitter maintains polarization of input optical signal. Polarization maintaining optical splitter Pm splitter is an optical splitter in which the polarization of linearly polarized light waves launched into the fiber is maintained during propagation, with little or no cross−coupling of optical power between the polarization modes.

Fiber-Mart offers a large selection of polarization maintaining (PM) 1xN and 2xN optical splitter modules. PM splitters are supplied in configurations with 2, 4, 8 and 16 output channels. PM fibers are bonded to the PLC circuit chips using precision multi-fiber alignment techniques. Our splitter modules feature low insertion loss, low polarization dependence and high polarization extinction ratio over a wide wavelength range.

Features

• Wide Band and Operating Temperature
• High polarization extinction ratio
• Good Splitting Uniformity
• Low insertion loss
• The length of pigtail: 1.0m as default(also customized)
• The Axis: Slow Axis as default, Fast Axis is also available

Applications

• Splitting or Combining Output Power of Transmitters Using Polarization Maintaining Fiber
• Excellent for laboratory and industrial applications
• Aerospace and Military Application
• Fiber Sensor
• Fiber Laser
• Test Bed

Mechanical Drawing

1x8: 100*80*10 mm

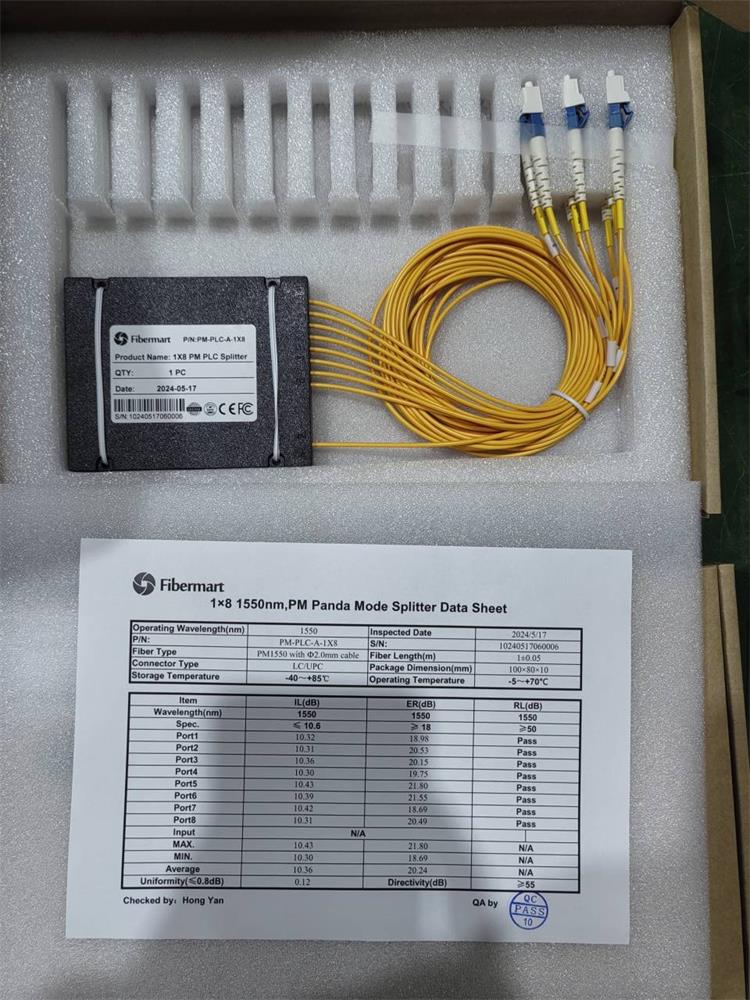

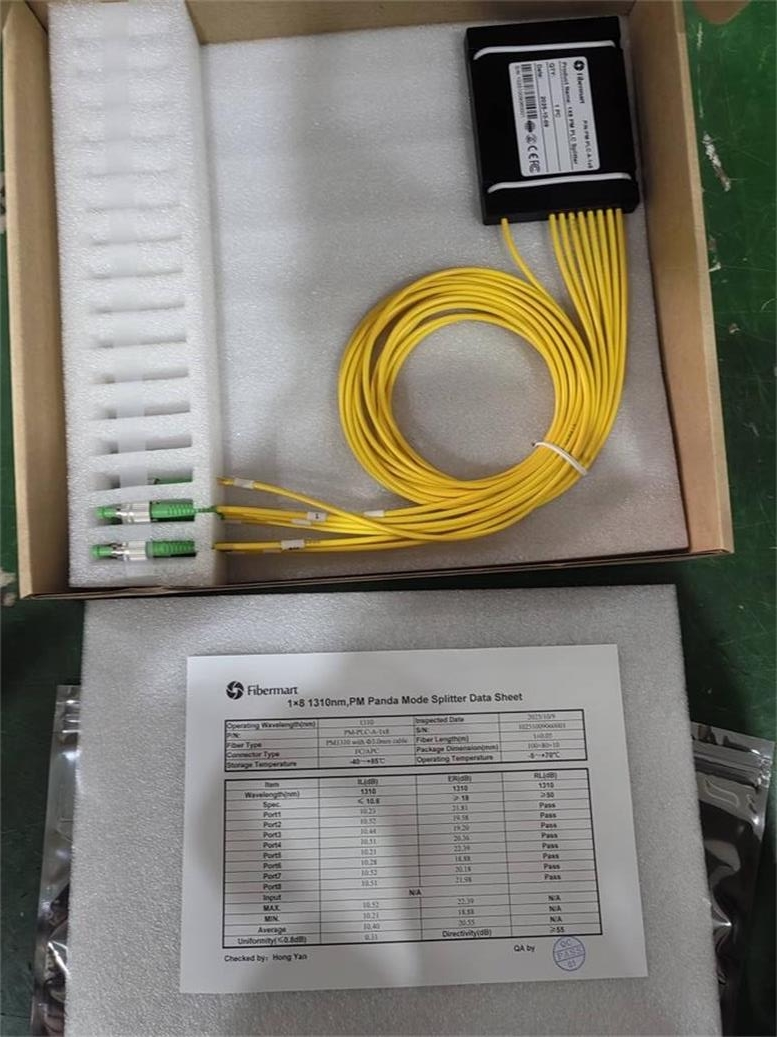

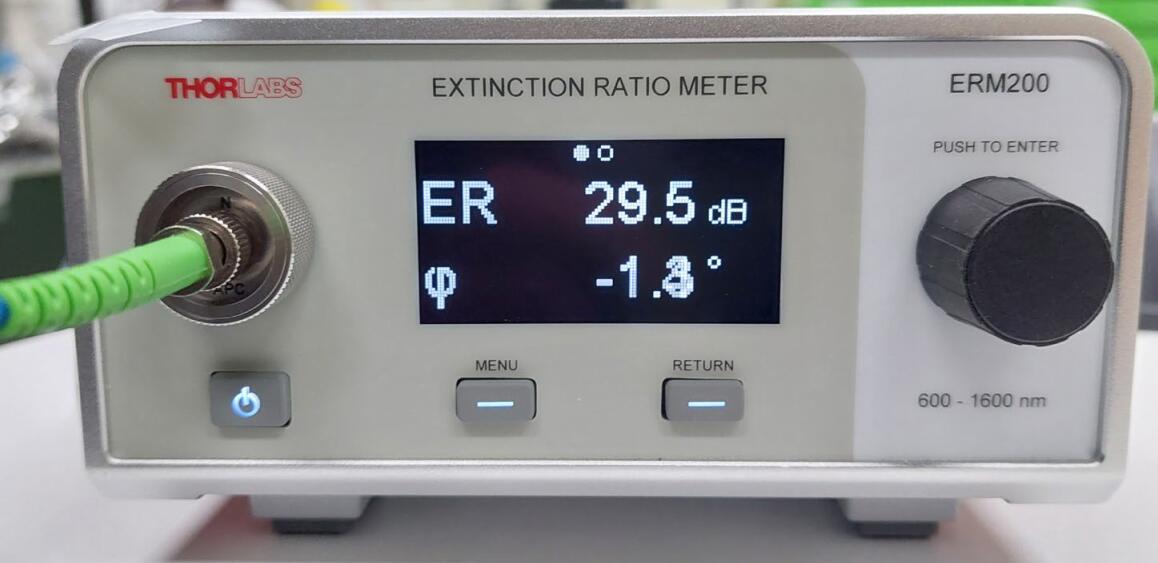

Test Report

The test report will be provided when the products are delivered.




The test report is 1X16 just for reference
