2x32 Fiber PLC Splitter with 1U 19 RackMount Fiber Splitter Box

Product Item: #2979
P/N: PLC-U-2X32-X-FM
US$275.00

Please Choose:








Order Today, Ship before 02/29/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

2x32 PLC Splitter, 1RU Rack-Mount, G.657A for Input & Outside, w/ FC, SC, LC or ST connectors Fiber Optic Splitter Box



2x32 PLC Splitter divides or combines 2 signals inputs to 32 outputs.



Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. PLC splitter are based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Fiber-Mart PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
Fiber-Mart provides a various of 1xN and 2xN PLC 1U rack mount type splitters, including 1x2, 1x4, 1x8, 1x16,1x32,1x64 1U rack mount type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 1U rack mount type PLC splitters.





1U Rack Mount PLC Splitter Features

  • Good uniformity and low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Mechanical
  • Stability Telecordia GR-1221 and GR-1209
  • Components through TLC-Certified,Conform to YD1117-2001
  • Operating environment: -40ºC to +85ºC
  • High Polarization Extinction Ratio & Excellent Uniformity
  • G.657A Fiber

1U Rack Mount PLC Splitter Applications

  • Fiber to the point (FTTX)
  • Fiber to the home (FTTH)
  • Passive optical networks(PON, GEPON)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Test equipment

Mechanical Drawing


This mechanical drawing is 1U rack mount box, only for your reference
Fiber-Mart offer LC, SC, FC or ST adapters for choice. APC or UPC on customer request.

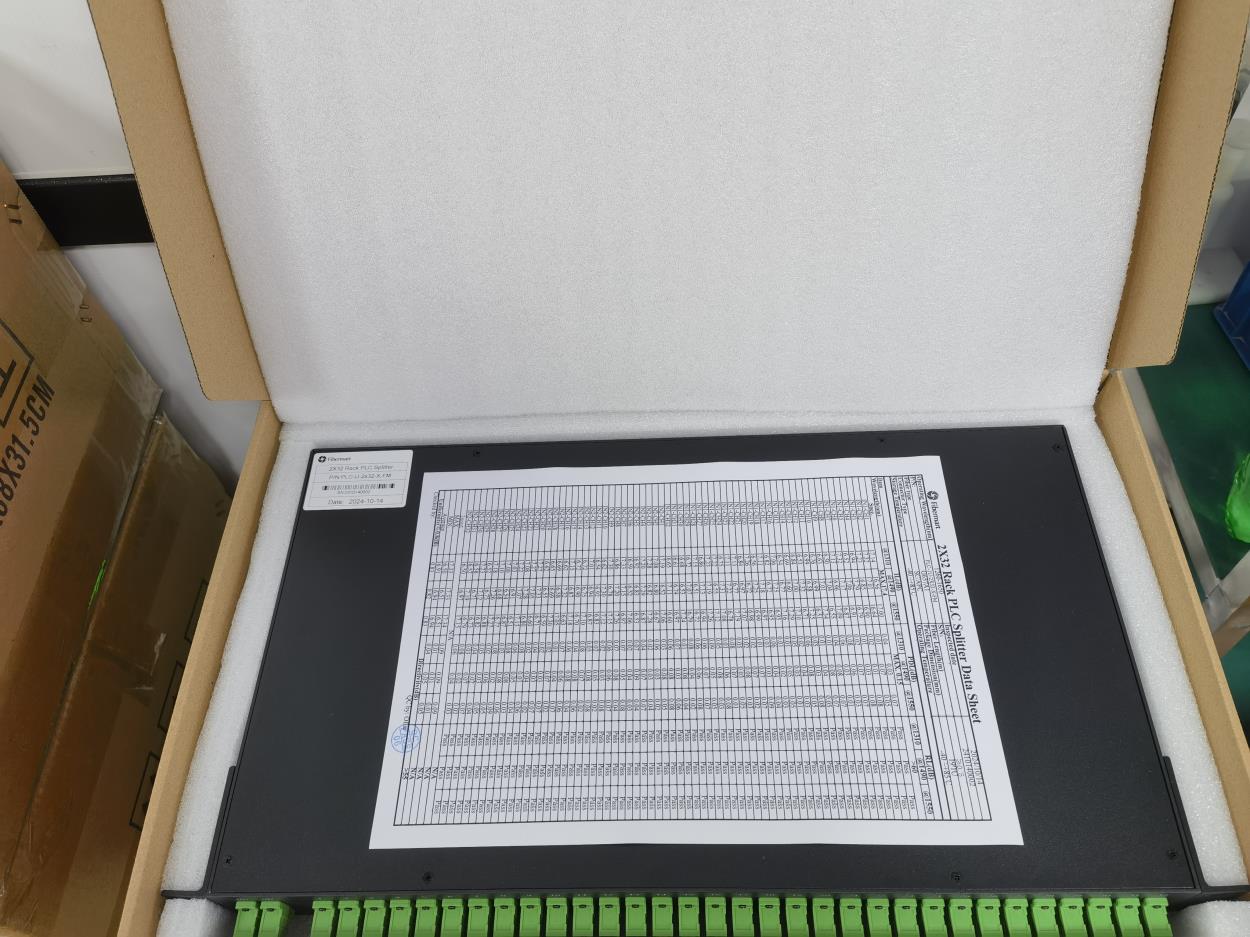

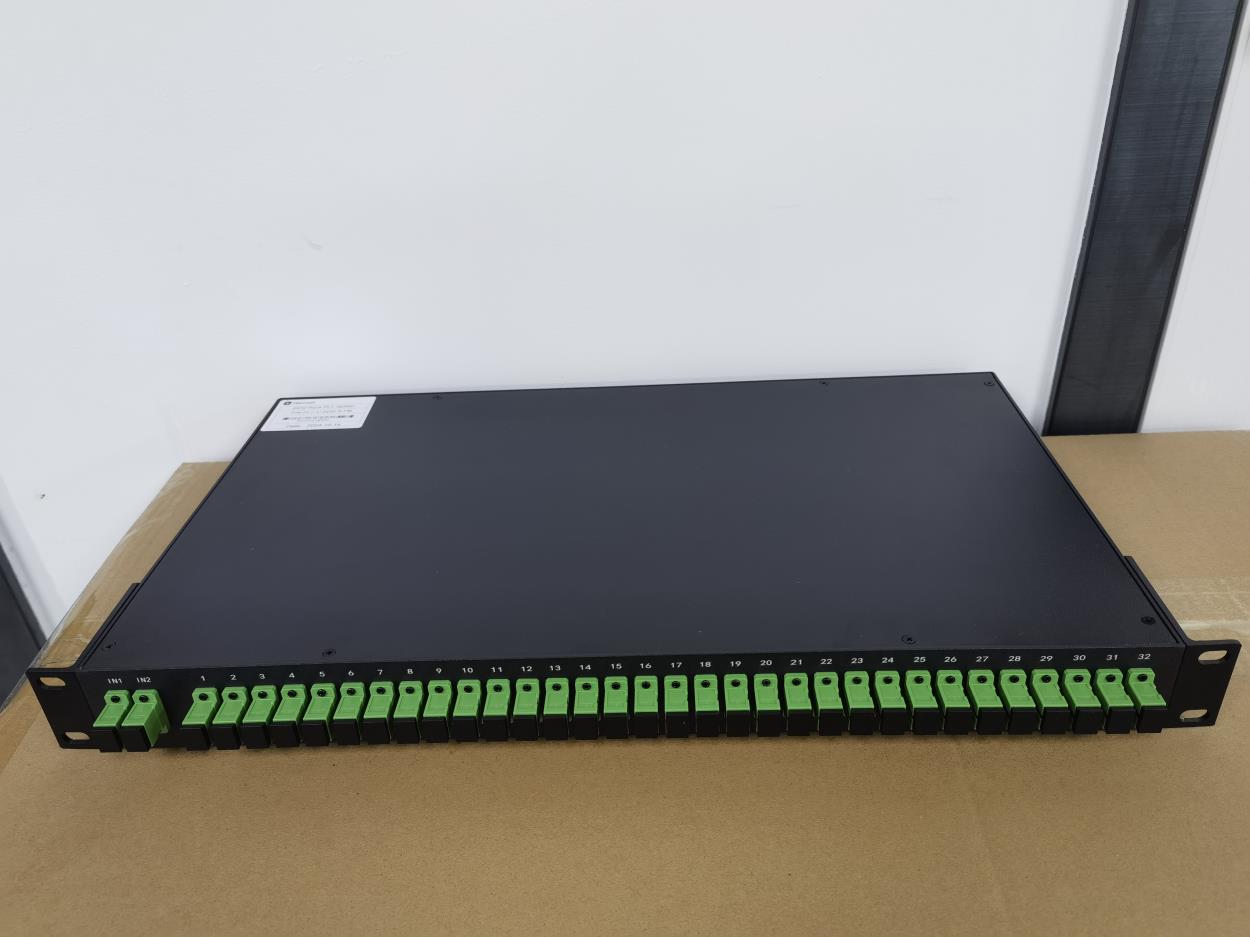

Sample Picture


V.S FBT Coupler, the advantages of PLC are as follows

  • The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength
  • High spectral uniformity, can splitter the signals on average
  • Compact structure, small volume
  • The cost advantage is very obvious on many splitter channels



Order Information

Fiber-Mart provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. The length of pigtail can be also customized; welcome to contact us for more details.

  • Our Factory




































Parameter Port Configuration
  2X2 2X4 2X8 2X16 2X32 2X64
Fiber Type G.657A
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 4.2 7.8 11.2 14.6 17.4 21.4
Max 4.6 8.2 11.6 15 17.9 21.9
Loss Uniformity (dB) Max 1 1.4 1.5 2 2.5 2.5
Return Loss (dB) Min 50 50 50 50 50 50
PDL (dB) Max 0.2 0.2 0.4 0.4 0.4 0.5
Directivity (dB) Min 55 55 55 55 55 55
Wavelength Dependent Loss(dB)   Max 0.8 0.8 0.8 0.8 0.8 1
Temperature Dependent Loss(-40~+85°C) Max 0.5 0.5 0.5 0.8 0.8 1
Operating Temperature (°C) -40~+85
Storage Temperature (°C) -40~+85
