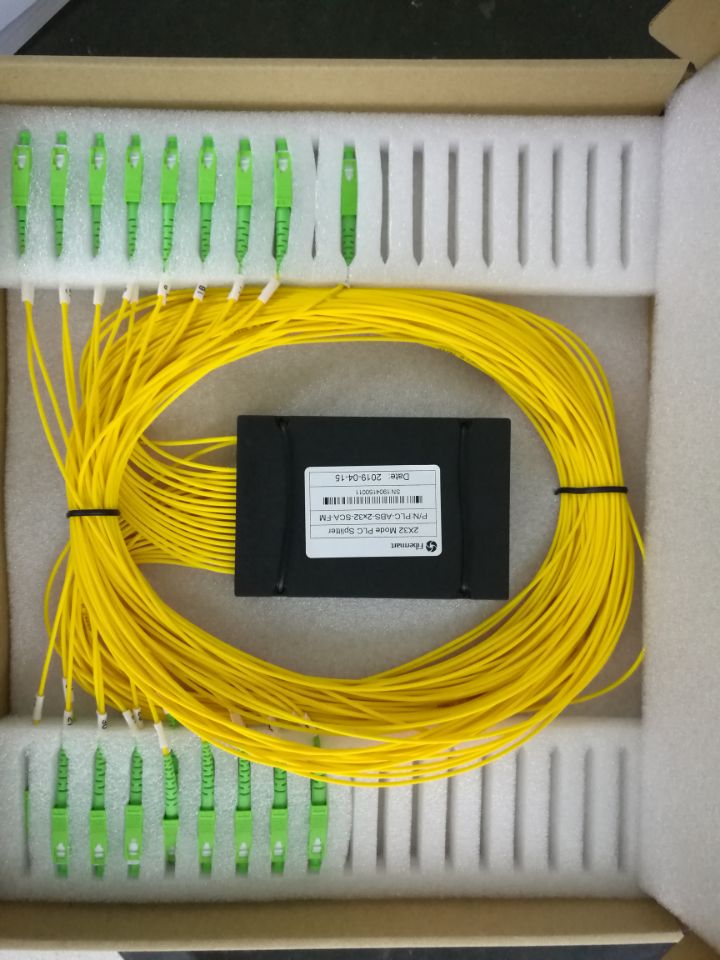

2x32 Fiber PLC Splitter with Plastic ABS Box Package

Press Esc key to close this popup
  • 2x32 Fiber PLC Splitter with Plastic ABS Box Package

2x32 Fiber PLC Splitter with Plastic ABS Box Package

Product Item: #2982
P/N: PLC-A-2X32
US$86.00

Please Choose:








Order Today, Ship before 03/24/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

Fiber PLC Splitter 2x32 with Plastic ABS Box Package



PLC Splitter is based on planar lightwave circuit technology.
Fiber-Mart 2x32 Fiber PLC Splitter can distribute or combine 2 optical signals into 32 outputs fibers.

The 2x32 PLC Splitter, with 1.5m pigtail length G.657A Fiber, 0.9mm, 2.0mm, 3.0mm input and output fiber for choice, and FC, SC, ST & LC connectors for choice, features high reliability, small size, wide operating wavelength range and good channel-to-channel uniformity and provide a cost effective and space saving product suitable to the ever changing networking requirements, and now is widely used in PON networks to realize optical signal power splitting.



ABS Box PLC Splitter Features

  • Low insertion loss
  • Low Polarization Dependent Loss
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: 1260~1650nm
  • High Reliability and Stability
  • Telcordia GR-1209-CORE-2001 Compliant
  • Telcordia GR-1221-CORE-1999 Compliant
  • Fiber input: 0.9 mm, 2.0mm or 3.0mm fiber for choice
  • Fiber output: 0.9 mm, 2.0mm or 3.0mm fiber for choice



ABS Box PLC Splitter Applications

  • Fiber to the point (FTTX)
  • Fiber to the home (FTTH)
  • Passive optical networks(PON, GEPON)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Telecommunication Networks



Mechanical Drawing

1x32, 1x64, 2x32, 2x64: 140*115*18 mm



V.S FBT Coupler, the advantages of PLC are as follows

  • The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength
  • High spectral uniformity, can splitter the signals on average
  • Compact structure, small volume
  • The cost advantage is very obvious on many splitter channels



Order Information

Fiber-Mart provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2x64 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. 0.9, 2.0, 3.0mm for input & output fiber type.
d. The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.

Fiber-Mart provides a various of 1xN and 2xN PLC ABS box splitters. The ABS Box PLC Splitter with its compact structure and small volume, are very convenient for use and can be installed in many places, such as: 19 inch racks, cross connect cabinet and some other devices. For more information about 1x2 Fiber PLC Splitter SMF-28e fiber with Plastic ABS Box Package, please contact us at [email protected].

  • Our Factory




































Parameter Port Configuration
  2X2 2X4 2X8 2X16 2X32 2X64
Fiber Type G.657A
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 4.2 7.8 11.2 14.6 17.4 21.4
Max 4.6 8.2 11.6 15 17.9 21.9
Loss Uniformity (dB) Max 1 1.4 1.5 2 2.5 2.5
Return Loss (dB) Min 50 50 50 50 50 50
PDL (dB) Max 0.2 0.2 0.4 0.4 0.4 0.5
Directivity (dB) Min 55 55 55 55 55 55
Wavelength Dependent Loss(dB)   Max 0.8 0.8 0.8 0.8 0.8 1
Temperature Dependent Loss(-40~+85°C) Max 0.5 0.5 0.5 0.8 0.8 1
Operating Temperature (°C) -40~+85
Storage Temperature (°C) -40~+85

Note:
·Above is the parameters for Blockless Fiber PLC Splitter with connectors.
·Without connectors, the insertion loss will be 0.2dB lower.
