3M(9.8ft) 40GBASE QSFP+ to LC Connector(8) QSFP-8LC-AOC-3 Active Optical Cable

QSFP-8LC-AOC-3 40GBASE QSFP+ to 8 LC Connector Active Optical Cable

40GBASE QSFP+ to eight LC/SC/ST/FC Connector Breakout Active Optical Cable are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. QSFP+ Breakout Cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s. QSFP+ Breakout Cable are suitable for short distances and offer a highly cost-effective way to connect within racks and across adjacent racks. This product is a high data rate parallel active optical cable (AOC), to overcome the bandwidth limitation of traditional copper cable.
All our 40GBASE QSFP+ to LC/SC/ST/FC Connector(8) Breakout Active Optical Cable are 100% compatible with major brands like Cisco, Juniper, Enterasys, Extreme, H3C and so on. If you would like to order high quality compatible 40GBASE QSFP+ to LC Connector(8) Breakout Active Optical Cable and get worldwide delivery, we believe Fiber-mart.COM is your best choice.

Specifications

• Connector 1: QSFP+
• Connector 2: 8 x LC/SC/ST/FC Connector
• Length: 3 meters
• Cable Type: AOC Cable
• Full duplex 4 channel 850nm parallel active optical cable
• Transmission data rate up to 10.3Gbit/s per channel
• SFF-8436 QSFP+ compliant housing and hot pluggable electrical interface.
• Management Interface and digital diagnostic monitoring(DDM) through I2C
• Support Rx output pre-emphasis
• 4ch 850nm VCSEL array
• 4ch PIN photo detector array
• Helix type multi-mode optical fibre cable of up to 100m
• OFNP (Optical Fibre Non-Conductive Plenum) rated cable
• Differential AC-coupled high speed data interface
• Housing isolated from connector ground
• Operating Temperature: 0 to 70℃
• RoHS 6 compliant
• 3.3V power supply voltage

Applications

• Infiniband transmission at 4ch SDR(2.5Gbit/s), DDR(5Gbit/s) and QDR(10Gbit/s)
• Multi-channel 10Gb Ethernet transmission up to 4 channels
• Fiber Channel transmission at 8.5Gbit/s per channel, up to 4 channels
• QSFP+ to LC/SC/ST/FC cables with MT connectors for plugging into existing cable runs or patch pannels
• Creating a breakout cable with four Duplex LC connectors for port expander applications
• SDR /DDR /QDR
• Data Centers

Datasheet

Part Number	Data Rate	Fibers	Port	Datasheet
10GSFP-AOC-XFM	10G	OM2/OM3	SFP+
SFP28-25G-AOC-XFM	25G	OM2/OM3	SFP28
QQ-AOC-XFM	40G	OM3	QSFP+
QSFP4S-AOC-XFM	40G	OM3	QSFP+ to SFP+
QSFP-8X-AOC-XFM	40G	OM3	QSFP+ to LC
QSFP-56G-AOC-XFM	56G	OM3	QSFP+
QSFP-100G-AOC-XFM	100G	OM3/OM4	QSFP28
QSFP28-AOC-4SFP28-XFM	100G	OM3/OM4	QSFP28 to SFP28

Quality Certification

Quality and standards are the foundation of Fiber-MART. we are dedicated to providing customers with outstanding, standards-compliant products and services. Fiber-MART has passed many quality system verifications, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.


Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Ordering Information

Notes

• Custom 40GBASE QSFP+ to LC/SC/ST/FC Connector(8) Breakout Active Optical Cable are available in various lengths and other options.
• xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are short for compatible brand.)
• X means LC,SC,ST or FC Connector.

Packaging

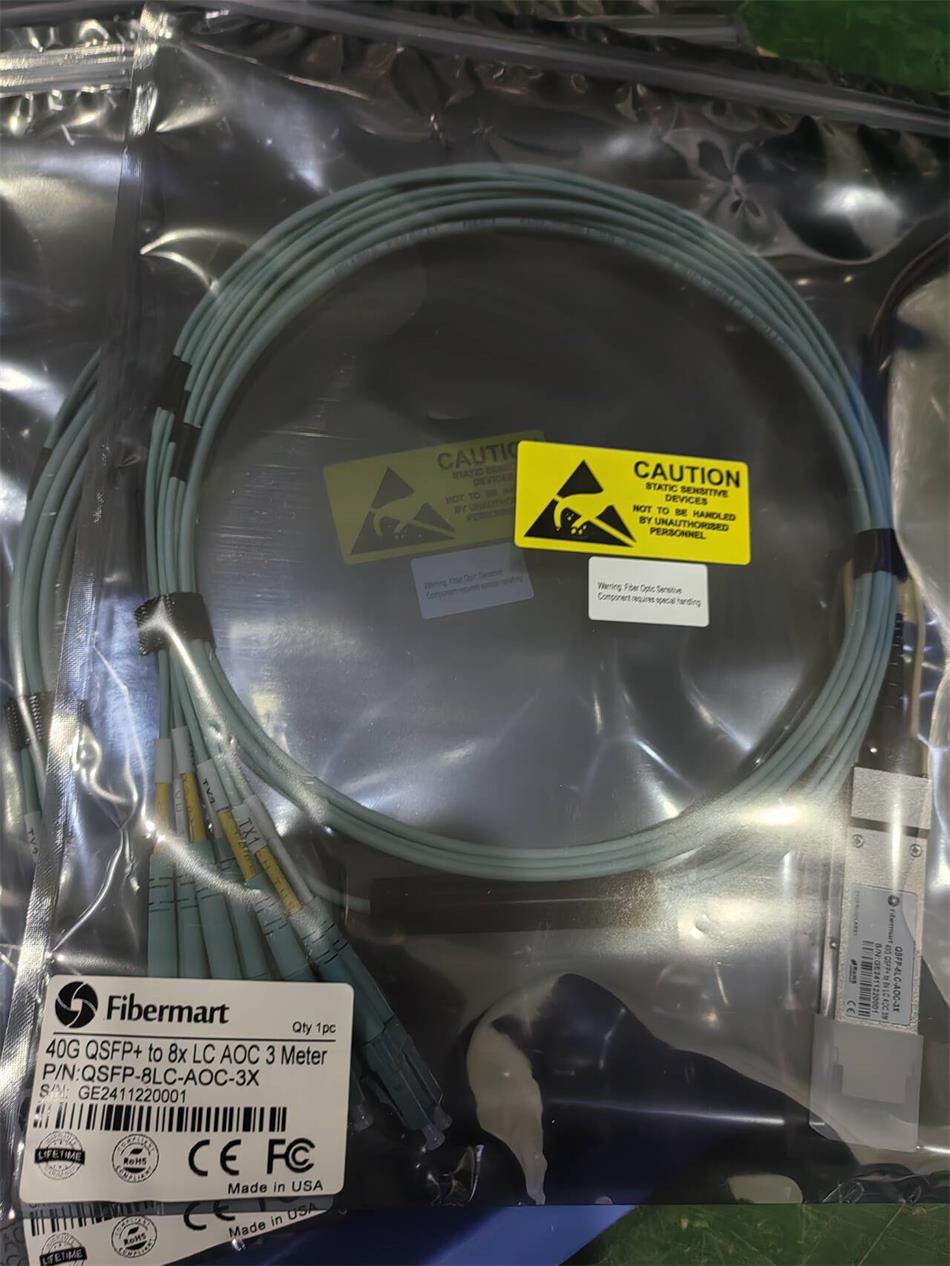

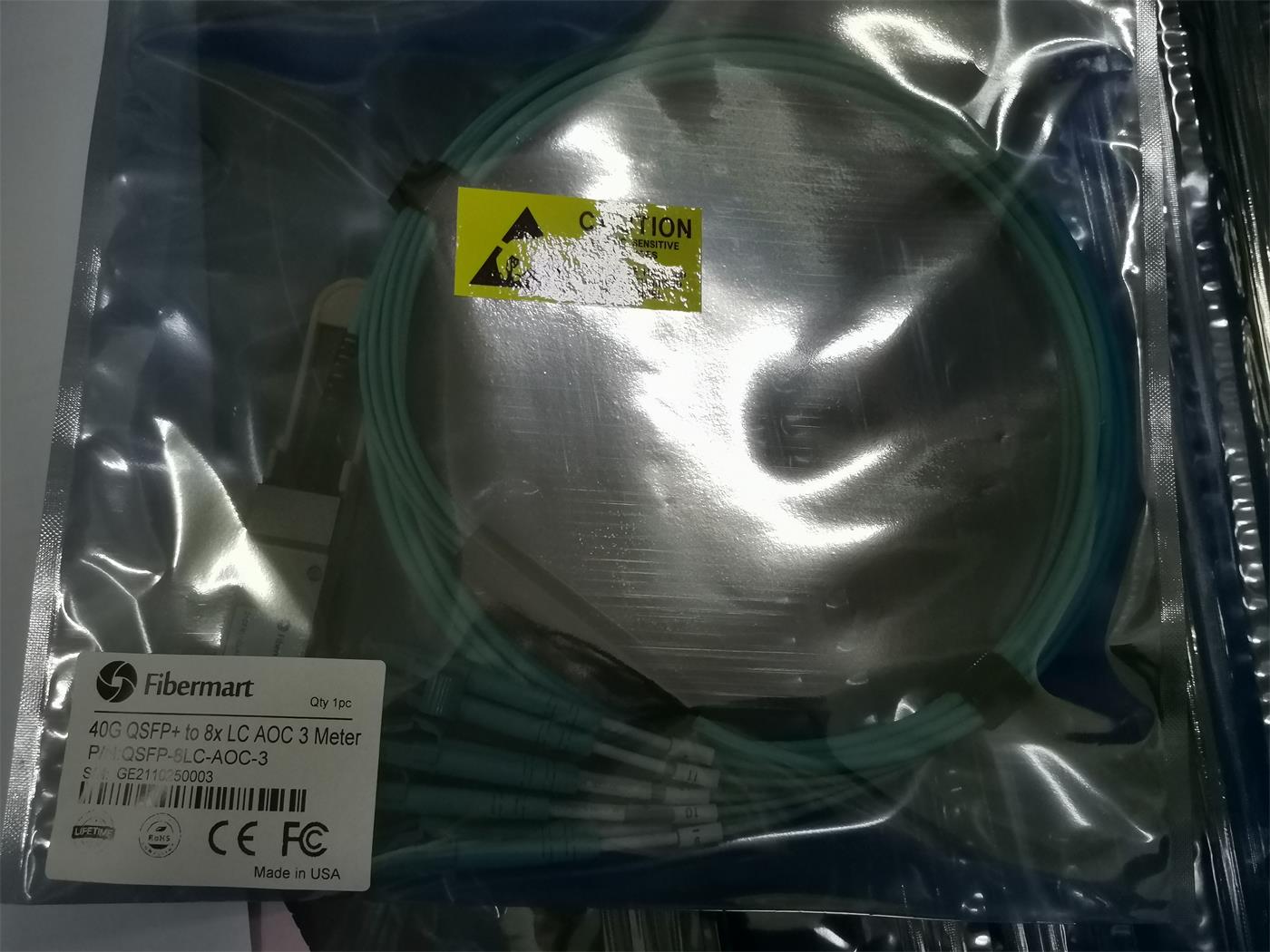

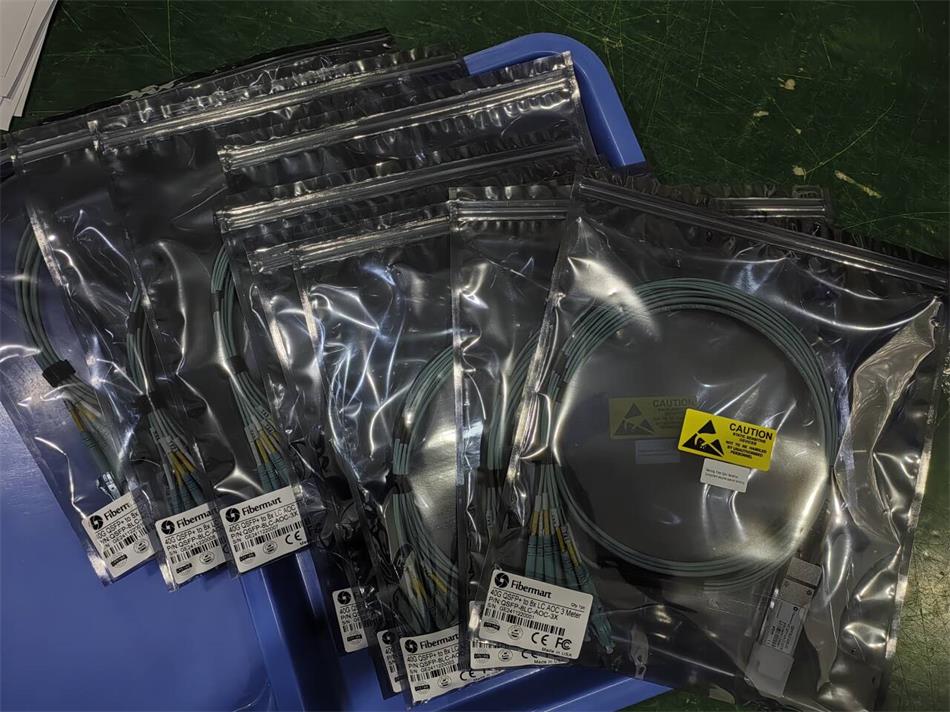

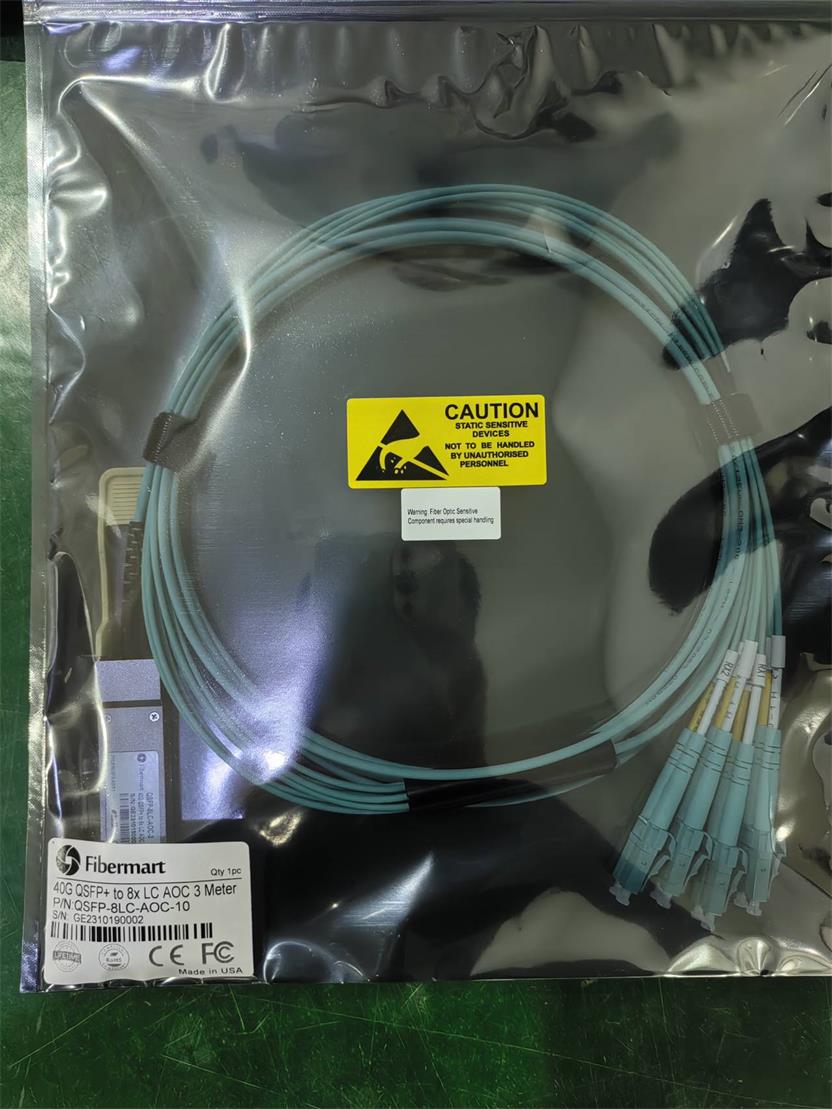

• Packed with antistatic bag in a box(Default Customer Options)
