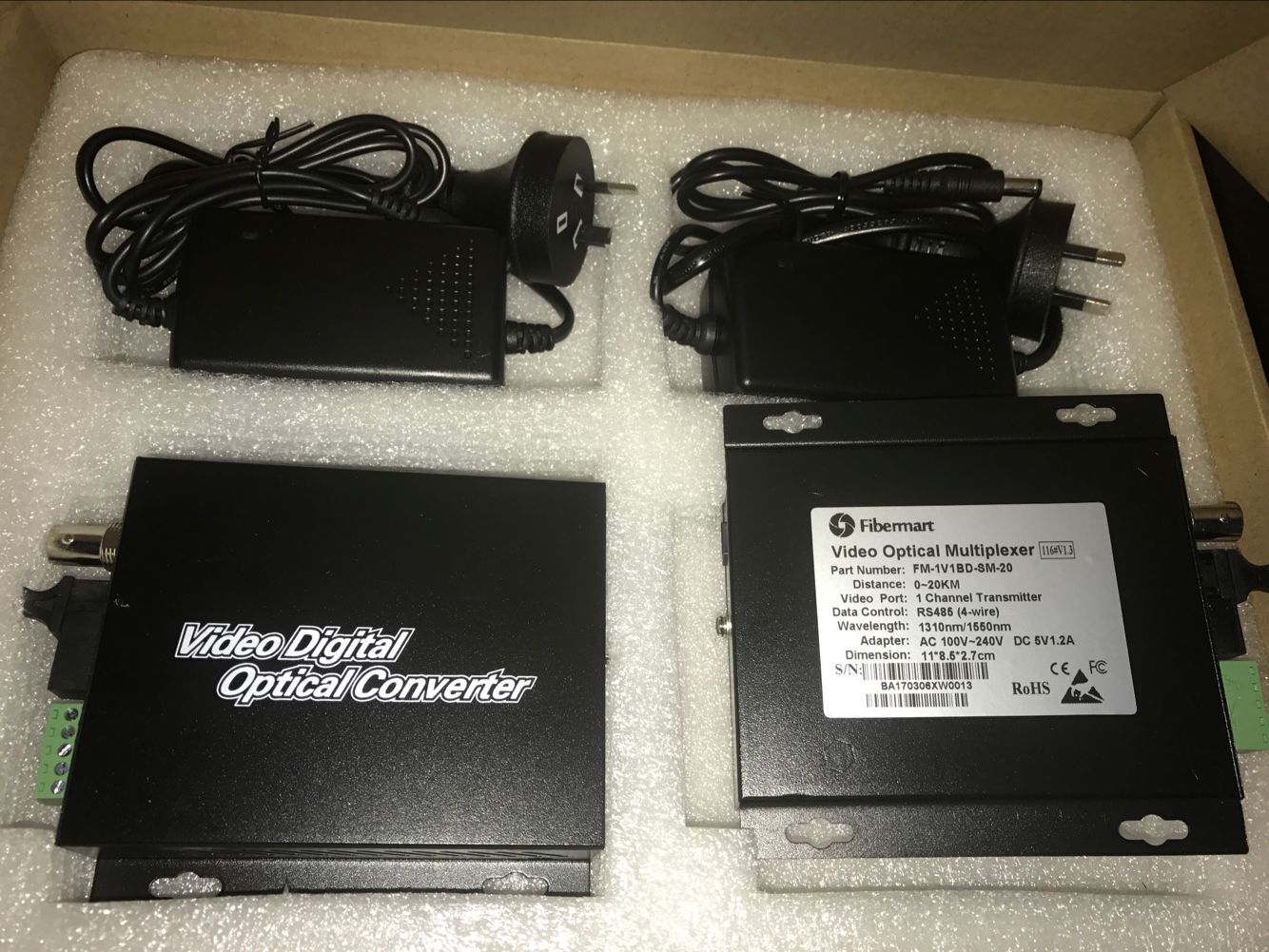

1 Channel Video & 1 Channel Bi-Directional Data to Fiber SM 20km Optical Video Multiplexer

1 Channel Video & 1 Channel Bi-Directional Data  to Fiber SM 20km Optical Video Multiplexer

Description

Our video, data and audio transmitter and receiver support simultaneous transmission of several channels of 8-bit digitally encoded video. The modules are compatible with NTSC, PAL and SECAM CCTV camera systems and support RS-485, RS422 and RS232 data protocols. Plug and Play design ensures convenience of installation and operation.

Key Features

• Support Point-to-Point or Daisy-Chain connection
• Uncompressed Digital Composite Video over one fiber
• Compatible with all PAL, NTSC,SECAM Video Systems
• Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
• Single-Mode Fiber Support for Distances up to 100 km
• LED Status Provide Rapid Indication of Operating Parameters
• No EMI or RFI and no ground loops
• Support Coarse Wavelength Division Multiplexing (CWDM)
• Stand alone
• Produce according to customer's specifications,providing OEM

Features

• 8-Bit Uncompressed Video Transmission
• Compatible with NTSC, PAL, or SECAM CCTV
• Supports RS-232, RS-422, and RS-485 Data Protocols
• WDM for Highest Quality Video Transmission
• No EMI, RFI, Cross Talk, and Ground Loop
• No Electrical or Optical Adjustments Required
• LED Indicators for Instant System Monitoring
• Standalone or Rackmount
• Transmit up to 30 km without Optical Attenuation
• Simultaneous Transmission of Video and Data

Applications

• Intelligent Transportation System
• Connection of Sub-network for Surveillance Center
• Public Security Surveillance
• High Way & Toll Station Surveillance
• Industrial Closed Circuit Television Surveillance

Technical Specifications
