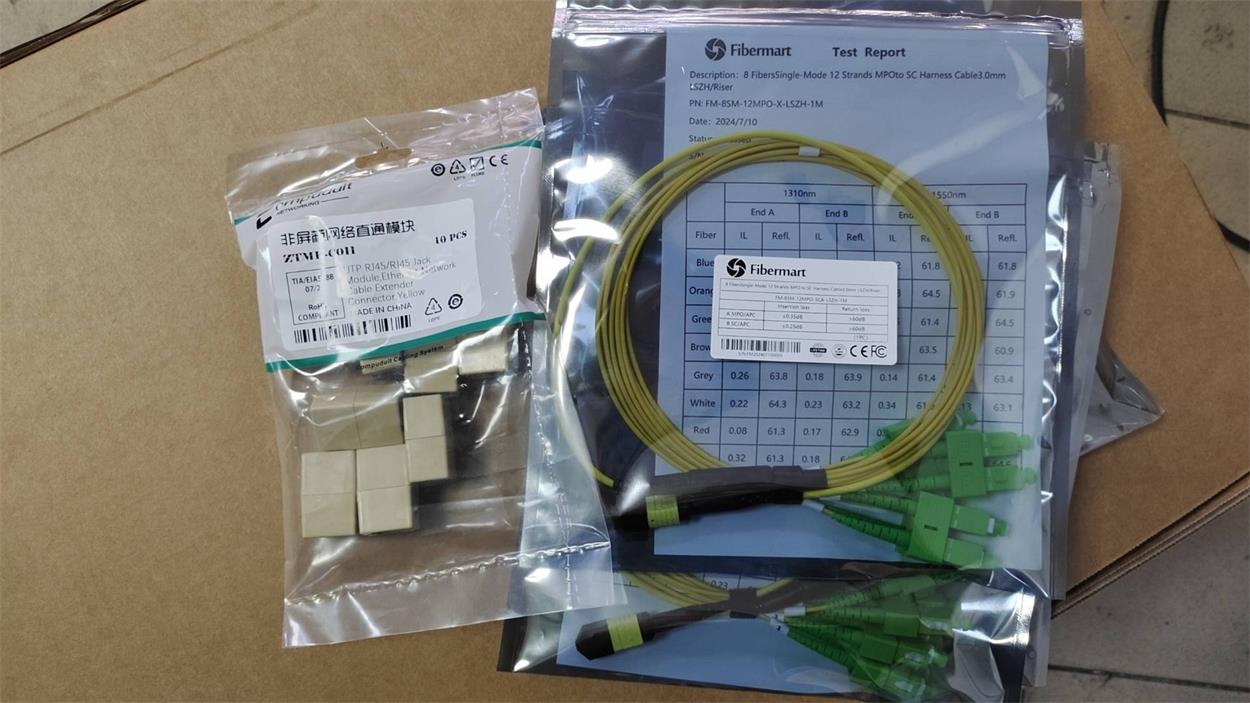

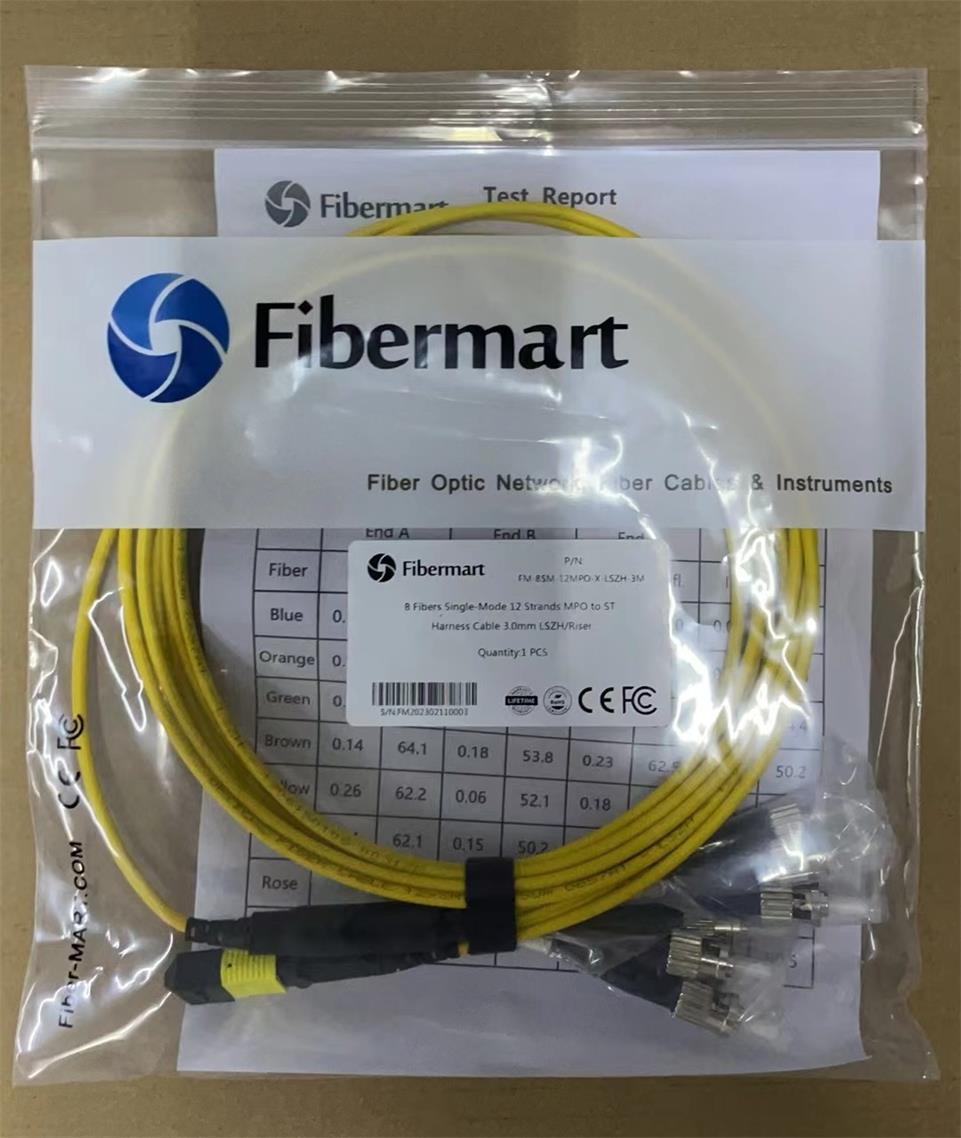

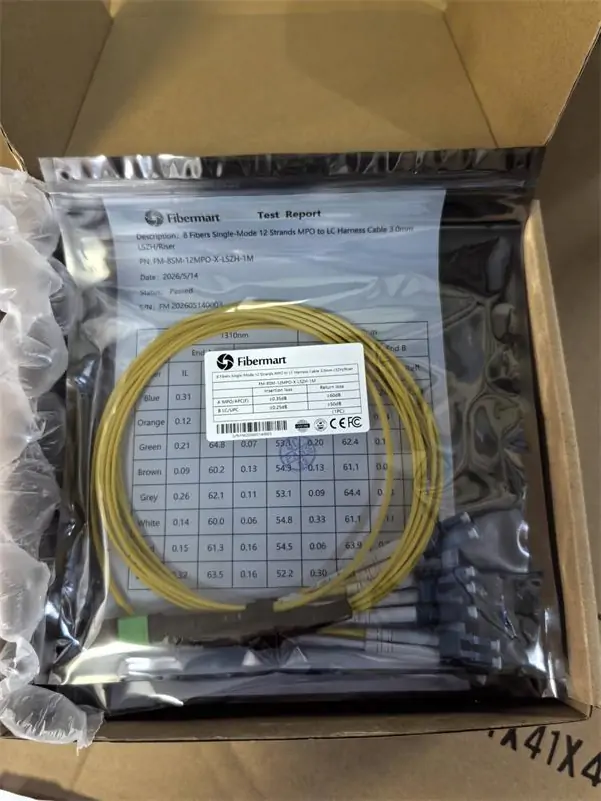

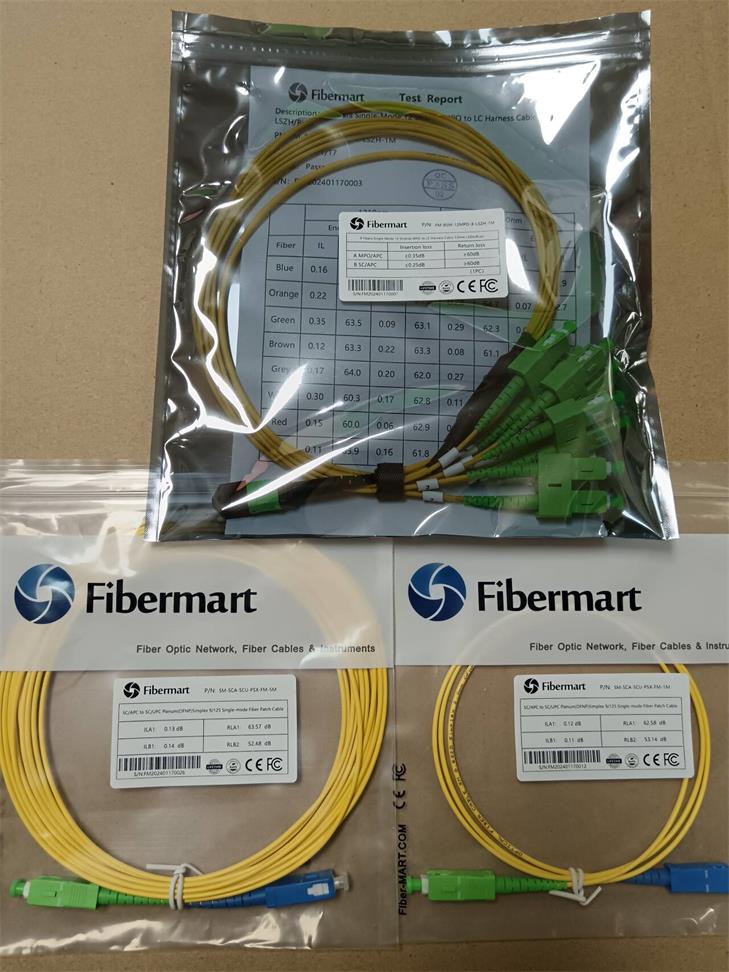

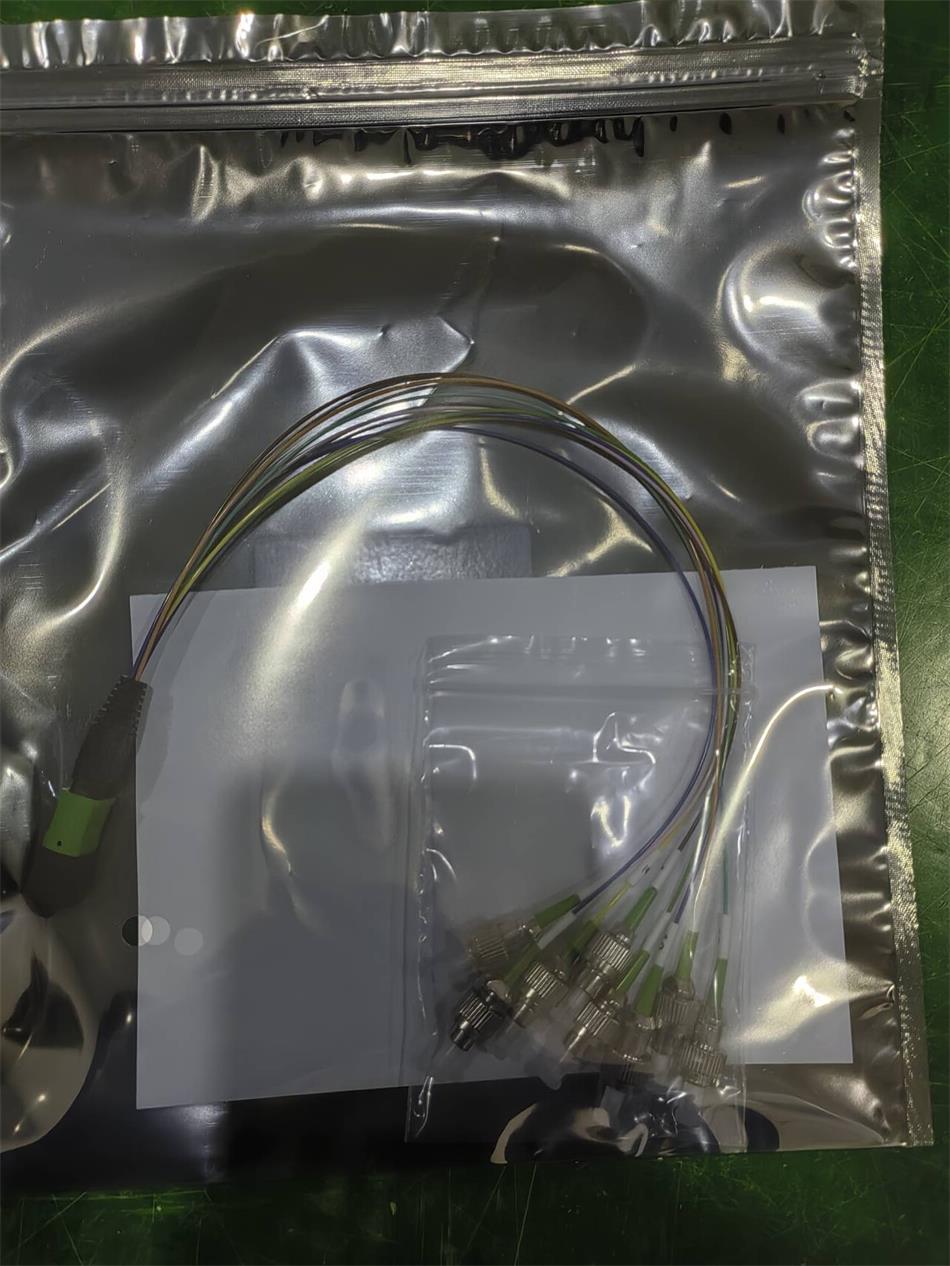

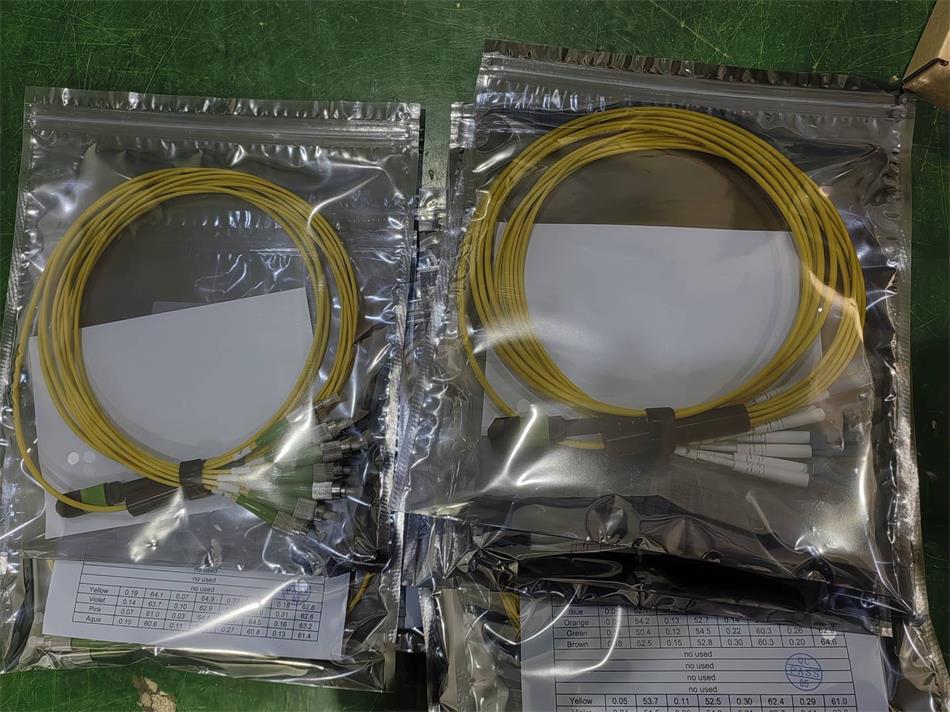

8 Fibers Single-Mode 12 Strands MPO to LC Harness Cable 3.0mm LSZH/Riser

MPO Breakout Cable, 8 Fibers, MPO to LC/SC/ST/FC, 9/125 Singlemode Fiber, 12 Standard

MPO is the high dense degree of optical fiber pre-connect system,which is generally use in three areas:

Fiber-Mart's MPO fiber patch cable, including MPO 8 Cable, is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard. It can be widely used for

• The data centra application with high dense degree environment
• The optical fiber to the building
• The internal connector application in fiber equipment such as Splitter, 40G /100G SFP and SFP+.

10G upgrade to 40G/100G data center.

MPO Connector

MPO Male with Pins	MPO Female without Pins
Two other clearly visible features are the noses and guide grooves (keys) on the top side. The Female and Male need to be used together.

Pre-terminated MTP Technology-Polarity Type B (Cross)

The application above is for the MTP-LC harness cable connecting a QSFP+ port to (4)SFP+ ports directly.

In many existing DC environments, LC-MTP cables are used to support high density fiber trunks between switches, rack patch panels and main distribution cabling panels (MDA).

For example:

The above is the Eight-Fiber MTP-LC Assembly uses a pinless connector on one end for interfacing with the QSFP port on the Cisco Nexus 6000series, The other end contains four LC uniboot connectors, which provide connectivity to the SFP+ ports on the switch. The polarity of the assembly pairs the fibers from the MTP Connector from the outside to the inside; thus, fiber 1 and fiber 12 are a duplex pair, as are fiber 2 and fiber 11, etc.

MPO 8 Fiber Distribution

Notes:
Please kindly to choice the best one for your project from above the two kinds of 8 fiber MPO harness cable array methods.
In the 40/100GbE project, 8 optical fibers are required.

Assembly Structure Illustration

12-Fiber Mini-Core Cable structure
MPO Hybrid Harnesses Fiber Patch Cables are terminated with MPO connector on one end and other end with LC, FC, SC, ST, or MTRJ connectors to meet a variety of fiber cabling requirements.
1.The default diameter of the MPO cable is 3.0mm.
2.The diameter of branch cable could be choose as 0.9mm,2.0mm,please kindly contact us at [email protected] for other diameter standard.
3.Fiber-Mart can also custom the pulling eyes, welcome to contact us if you need.

MTP/MPO Machinery & Testing Equipment

MPO Termination

Common Termination

Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters,gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters,gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters,gigabit up to 1000m

Make To Order

Note:Polishing connector (A): PC (multimode), APC 8° (single-mode)
Polishing connector (B) : PC (multimode/single-mode), APC 8° (single-mode)
Furcation length (B): 0.5m/0.3m for 1m total length
Type of protection connector: IP20
Patch cord Type: Minicore cable, round
