N8500-48B6C (48*25Gb+6*100Gb) 25Gb L2/L3 SDN Switch Loaded with ICOS

N8500-48B6C (48*25GbE+6*100GbE) 25G L2/L3 Switch Loaded with ICOS

N8500-48B6C is a Top-of-Rack (TOR) or Leaf switch in a compact 1U form factor, ideally suited for high performance and programmable data center environments. The N8500-48B6C provides 48-port 25GbE SFP28 and 6-port 100GbE QSFP28. It delivers excellent low latency and power efficiency in a PHYless design, while offering high reliability features such as redundant and hot swappable power supplies and fans in forward and reverse airflow configurations. With support for advanced features, including MLAG, VxLAN, SFLOW, SNMP, MPLS etc, this layer 3 switch is ideal for traditional or fully virtualized data center.

The N8500-48B6C supports current and future data center requirements, including a x86-based control plane for easier integration of automation tools, an ONIE installer for 3rd party network operating systems and compatibility with Software Defined Networks via OpenFlow 1.3.11. Additionally, N8500-48B6C supports the advanced hardware based VXLAN feature to support over 16M virtual networks.

Quality Certification

Quality and standards are the foundation of Fiber-MART.COM. We are dedicated to providing customers with the outstanding, standards-compliant products and services.Fiber-MART.COM has passed many quality system verification, like ISO9001, CE, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

• This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
• This product was produced under the requirements of CE to indicate conformity with the essential health and safety. Please contact us to learn more.
• This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.

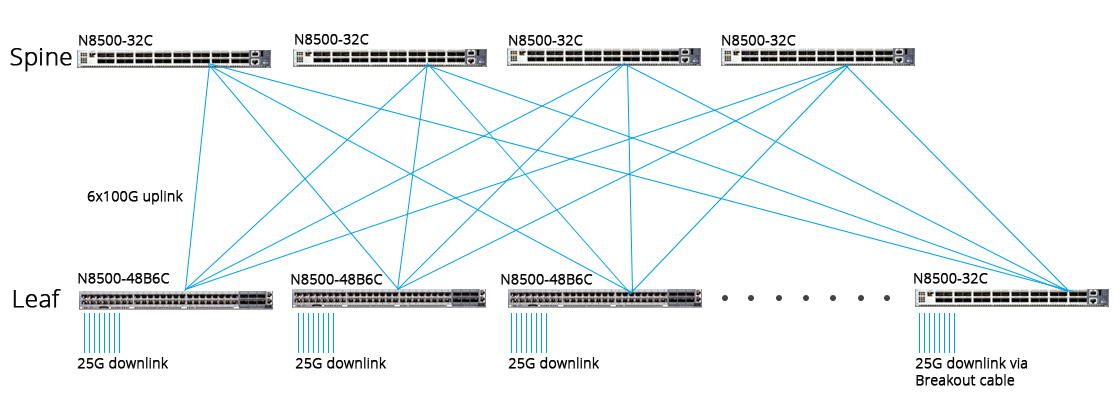

Spine-Leaf Network Architecture

Key Features

L2/L3 Packet Processing

STP, RSTP, MSTP, PVRST, PVST, Bridge Assurance, BPDU Guard. IEEE 802.1q VLANs IEEE 802.3ad Link Aggregation (LACP) Address Resolution Protocol (ARP) IGMP snooping v2/v3 Full IPv4 & IPv6 Routing including OSFPv2, OSPFv3, BGPv4/v6, ECMP Access Control List (ACL) L2-L4 classification Forwarding table for L2 MAC, L3 Host and LPM entry scale Three-stage Content-Aware Processing Flexible ingress/egress counter pools

Buffer and Traffic Management

Integrated High Performance Smart Buffer Memory Class of Service (CoS): 802.1p or DSCP Traditional monitoring with SNMPv2/v3 IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IPv6 Neighbor Discovery DHCP relay Storm Control support: broadcast/unicast Jumbo Frame up to 12K Linked-list scheduler flexible queue assignment & scheduling algorithms: Strict Priority (SP) and Deficit Weighted Round Robin (DWRR)

Data Center Features

VxLAN and NVGRE overlay Per-Virtual Machine Traffic Shaping L2 in L3 Tunneling (VXLAN, L2GRE, NVGRE) 802.1Qbg Edge Virtual Bridging 802.1Qbh Bridge Port Extension

Supported Optical Transceivers and Cables

25G SFP28 slot: 25GBASE-SR 25GBASE-LR 25GBASE AOC/ DAC QSFP28 slot: 100GBASE-SR4 100GBASE-LR4 100GBASE-IR4 100GBASE-PIR4 100G AOC/DAC 100G to 4x25G AOC/ DAC

Powerful 25GbE ToR/Leaf Switch

N8500-48B6C meets the high-performance, availability, and network-scaling requirements of enterprise and cloud data centers.

Front and Back Panel Overview

Data Center Grade Hardware Design

• Hot-swappable Power Supplies
• Hot-swappable Fans
• Low Power Consumption

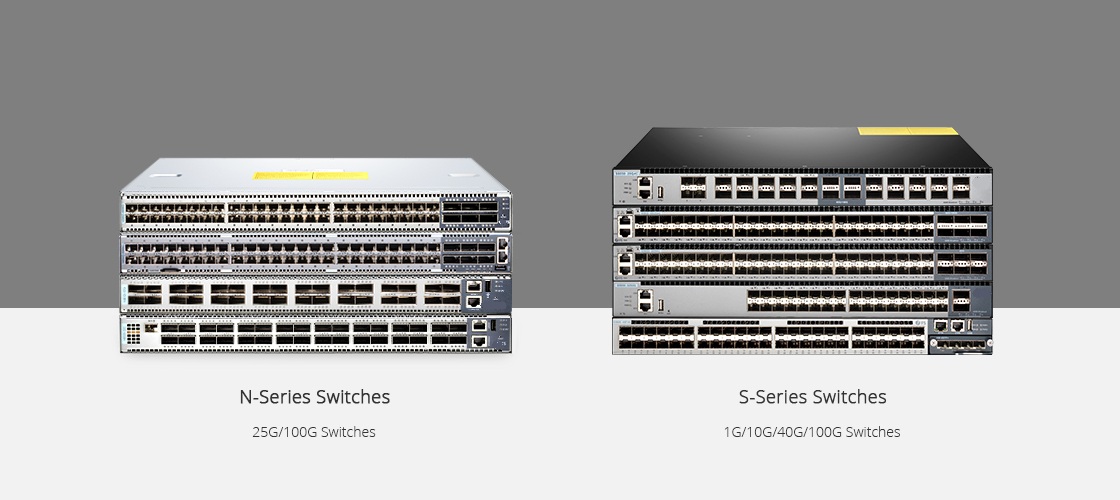

N-Series VS S-Series

Fiber-MART.COM provides N-Series switches and S-Series switches. N-Series is 25G/100G open switch, Which is for next generation metro, data center and enterprise network applications. S-series 1G/10G/40G/100G switches are aiming to achieve flexibility, efficiency and cost effectiveness in data center networks.
