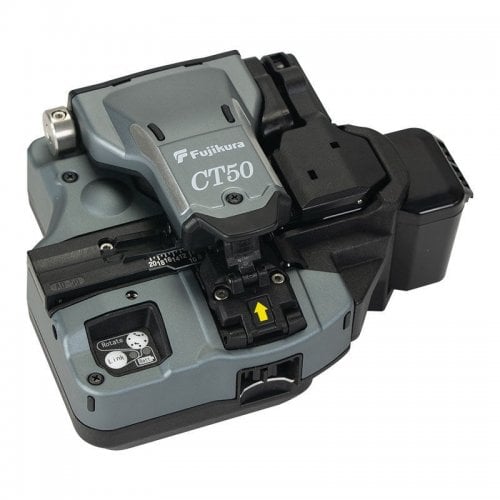

CT-50 Fujikura Fiber Cleaver
JUST RELEASED - STATE OF THE ART CLEAVER
The CT50 features automated blade rotation, unprecedented durability, and simplistic maintenance unseen
with any other cleaver. Paired with a Bluetooth enabled Fujikura splicer, cleaver blade positions can be
automatically advanced when needed based on cleave count or cleave quality. If automated rotation is not desired,
the blade position can be advanced at the touch of a button,
no tools required. The easy to read blade position indicator clearly displays the selected position.
The Bluetooth feature, along with simplified mechanical operation, increases overall productivity and
reliability. The fiber clamp opens beyond 90 degrees and readies the blade for cleaving in the same motion.
This allows easy viewing of the distance scale used to gauge cleave length.
The 16-position blade yields 60,000 single-fiber cleaves, or 5,000 12-fiber ribbon cleaves. The built-in scrap collector conveniently stores fiber shards until they can be safely discarded.
The CT50 is an industry first cleaver ruggedized to withstand severe shock, including drops up to 30 inches.
If needed, the CT50 is field serviceable with all precision components easily replaced in the field
Specifications PARAMETER VALUE Applicable Fiber Conventional silica optical fiber
Fiber Count Single and up to 12 fiber ribbon
Coating Diameter 250 μm to 900 μm
Cladding Diameter 125 µm
Cleave Length 5-20 mm with AD-50 adapter plate and 10 mm when using fiber holders
Cleave Angle Capability Typically <0.5˚
Blade Lifetime 60,000 fiber cleaves (5,000 12-fiber cleaves)
Dimensions (W x D x H) 120 mm x 95 mm x 58 mm
Weight 300 g (0.66 lbs)
• Motorized blade rotation
• Bluetooth communication
• Shock resistant
• Simple one-step operation
• 60,000 cleave blade life
• Field serviceable
