FC/APC Singlemode Fixed Fiber Optic Attenuator Male to Female, 1~25dB Optional

Press Esc key to close this popup

FC/APC Singlemode Fixed Fiber Optic Attenuator Male to Female, 1~25dB Optional

Product Item: #16214
P/N: AT-M-FCA
US$5.20

Please Choose:






Order Today, Ship before 06/14/2026, from U.S. or Hong Kong
Discount Prices
Quantity Unit Price Discount
200-499 US$4.94 5%
500+ US$4.68 10%
  • Description
  • Datasheet
  • Tags
  • FAQ

FC/APC Fiber Optic Attenuator Fixed, SM/MM Male to Female Attenuator, FC Optical Attenuator


As optical passive devices,Fiber-MART attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave. Buy FC Attenuator, Fiber Attenuator at Fibermart.





Fiber Connector FC Ferrule Type Zirconia Ceramic
Connector Gender Fixed Male to Female Transfer Mode SM/MM
Attenuation 1~25dB Operating Wavelength(nm) 1260~1620(SM),850 or 1330(MM)
Attenuation Accuracy 1-9dB±0.5dB, 10-25dB±10% Return Loss ≥45dB
Polarization Dependent Loss ≤0.2dB Max Optical Input Power 200mW
Humidity 95%RH Operating Temp Range -40~80°C
Storage Temp Range -40~85°C



Highlights

Fixed FC Singlemode Fiber Optic Attenuator, 1~25dB
  • Precise attenuation values
  • Low PDL & insertion loss
  • Precisional reflection polishing




1. Flexiable case for easy portability

Accurate size armed with elegant dust cap, better ensure the handy installation and protection from out-service.



2. Durable metal shell for permanent protection

Shaped with metal material, our attenuators perfectly protect the core insert from external damage.



3. Elaborately designed packing for no-damage delivery

Delicate packaging, convenient for using and well-protected in transit to ensure no-damage delivery.






Attenuator Application

Optical attenuator is a passive device used to reduce the power level of an optical signal. It is generally used in single-mode long-haul applications to prevent optical overload at the receiver. Optical attenuator is widely used in CWDM&DWDM, CATV systems, data center networks, test equipment and other high power applications.






Datasheet to Download

Customized Service :



● If you need any customized products or services, please write your request in Order Remarks, or send an email to [email protected]



Get Quote or Checkout Online :



● To request a Quote or Checkout to pay online, simply add items into your cart and select your preferred method.



Free Shipping & No Tariff :



● Online Order over US$200 is Free Shipping (Not included Heavy Items like Outdoor Cable, Outdoor Cabinet etc),

● For US customer, Fibermart covers all customs duty and fees - no additional tariff charges.



Shipping Time :



● FedEx : 2-4 business days
● UPS : 2-5 business days
● DHL : 2-6 business days
● Shipment by Sea : 20-25 business days



Payment Method :



● PayPal (Online)

● Credit / Debit Card (Online)

● ABA Routing (US Local)

● T/T Wire Transfer (International)



Returns & Warranty :



● 1-Year Warranty

● 60-Day Returns

● 60-Day Exchange

● Limited Lifetime Warranty.

   Read full Return & Refund Policy



Net Term & Credit :



● Fibermart accept Net 30 and Net 60 payment terms, Contact Us for Credit Account by submit a credit form.



Volume Discount :



● Fibermart offers discount prices for large-volume order, Contact Sales Team for more details.



Customer Reviews

Displaying 21 to 30 (of 35 reviews)

by Frold
Date Added: 08/15/2023

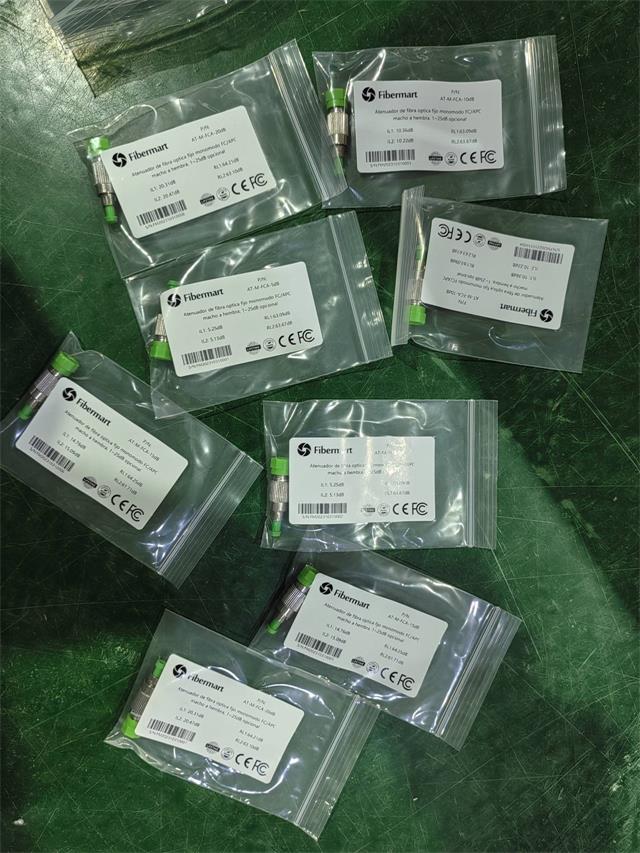

Well received fc attenuators from fibermart, fast shipping with nice service!
