Switch/Commutateur de Couche Spine/Agrégation et de Stockage IP 40GbE (20*40GE + 4*100GE), S8050-20Q4C

La description
Fiche données
Tags
FAQ

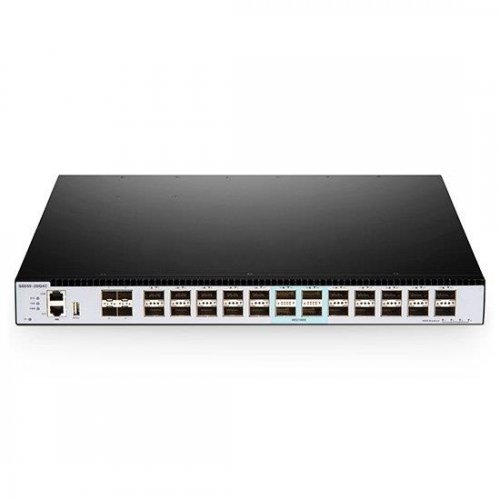

20x40GbE QSFP+ with 4x100GbE QSFP28 Switch S8050-20Q4C

The S8050-20Q4C reference design, the high-density 10G/40GE platform with native 100GE (4x25G SerDes) uplinks, supports multiple form factors and includes fiber-mart Open Switch Platform (OSP) reference software for Data Center/SDN/Openflow and enterprise applications.

S8050-20Q4C reference design provides a comprehensive solution for data center Spine/Leaf switches with highlighted network visibility features. It is also the first Terabit platform with carrier domain features like OAM and PTP enabled. The reference design is equipped with an advanced SDK package with productized CLI for customer to do SDK-level configuration and verification.

Switch Class	Layer2/3, Dater center, Metro	Non-blocking Throughput	1.2Tbps
40-Gigabit QSFP+	20	Switching Capacity	2.4Tbps
100-Gigabit QSFP28	4	CPU	Freescale PowerPC P1010
Typical/Max Power Draw	120W/160W	System Memory	2 GB
100/1000 Mgmt Ports	1	Flash Storage Memory	2 GB
RS-232 Serial Ports	1 (RJ-45)	Packet Buffer Memory	9 MB
USB Ports	1	Max VLANs	4094
Packets/Second	1200Mpps	Max MAC Entries	128K
Jumbo Frames	9600 Bytes	Enclosure Type	Rack-mountable 1U
Hot-swap Power Supplies	2(1+1 redundancy)	Dimensions (H x W x D)	43.6x440x470 mm
Hot-swappable Fans	4(N+1 redundancy)	Weight(With one PSU)	8.3kg

Product Highlights

20 QSFP+ Ports
20x40GBASE QSFP+ Ethernet Ports.
4 QSFP28 Ports
4x100GBASE QSFP28 Ethernet Ports.
Multi-Node Redundancy
Dual power modules and Four fans for uninterrupted performance assurance.

Model Comparison

Image	Part Number	ID#	Description	Price
40G QSFP+ Transceivers
	QSFP-SR4-40G	17931	40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO Transceiver for MMF	US$ 55.00	Add to Cart
	QSFP-CSR4-40G	34912	40GBASE-CSR4 QSFP+ 850nm 400m MTP/MPO Transceiver for MMF	US$ 70.00	Add to Cart
	QSFP-LX4-40G	35205	40GBASE-LX4 QSFP+ 1310nm 2km LC Transceiver for SMF&MMF	US$ 340.00	Add to Cart
	QSFP-IR4-40G	34913	40GBASE-LR4L QSFP+ 1310nm 2km LC Transceiver for SMF	US$ 340.00	Add to Cart
	QSFP-PIR4-40G	34917	40GBASE-PLRL4 QSFP+ 1310nm 1.4km MTP/MPO Transceiver for SMF	US$ 220.00	Add to Cart
	QSFP-LR4-40G	24422	40GBASE-LR4 and OTU3 QSFP+ 1310nm 10km LC Transceiver for SMF	US$ 340.00	Add to Cart
	QSFP-PLR4-40G	35209	40GBASE-PLR4 QSFP+ 1310nm 10km MTP/MPO Transceiver for SMF	US$ 380.00	Add to Cart
	QSFP-ER4-40G	35211	40GBASE-ER4 and OTU3 QSFP+ 1310nm 40km LC Transceiver for SMF	US$ 1,500.00	Add to Cart
100G QSFP28 Transceivers
	QSFP28-SR4-100G	35182	QSFP28 100GBASE-SR4 850nm 100m Transceiver	US$ 400.00	Add to Cart
	QSFP28-LR4-100G	39025	QSFP28 100GBASE-LR4 1310nm 10km Transceiver	US$ 2,800.00	Add to Cart

Datasheet to Download
