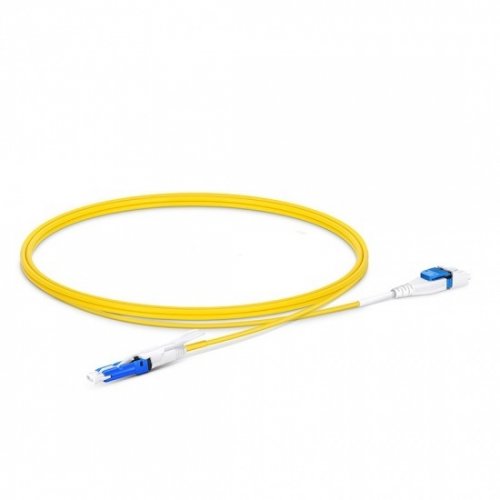

CS UPC to LC UPC Flat Clip Uniboot Duplex OS2 SingleMode PVC (OFNR) 2.0mm Fiber Optic Patch Cable 1m (3ft) 200/400G Network Connection

製品アイテム: #16878

(0 カスタマーレビュー)

P/N: SMUB-CSU-LCU-DX-1M-PVC

ベース価格: US$21.00

選択して下さい:

ケーブル直径:

ケーブルシース：

カスタマイズされた詳細:

Order Today, Ship before 06/14/2026, from U.S. or Hong Kong

説明
データシート
商品タグ
FAQ

CS UPC to LC UPC Flat Clip Uniboot Duplex OS2 SingleMode PVC (OFNR) 2.0mm Fiber Optic Patch Cable 1m (3ft) 200/400G Network Connection

Specifications

CS™ UPC to LC UPC Uniboot Duplex 9/125μm Single Mode PVC Fiber Optic Patch Cable

Senko CS™ connector is designed for next generation 200/400G transceiver QSFP-DD and OSFP, meeting the requirement for CWDM4, FR4, LR4 and SR2, which is optimized as a robust higher density replacement over the duplex LC connector in both the rack and structured cabling environments.

The CS™-LC uniboot duplex single mode fiber optic patch cables are available to interconnect or cross connect fiber networks. It is also backward compatible with 40Gb and 100Gb networks, so you can future-proof your current application for an eventual upgrade to 400Gb.

Product Specification

Connector Type	Senko CS™ to LC Flat Clip	Polish Type	UPC to UPC
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
400G Ethernet Distance	2km with OSFP-400G-2FR4	Glass Fiber	Corning Fiber
Insertion Loss	CS™≤0.2dB, LC≤0.2dB	Return Loss	≥50dB
Fiber Grade	G.657.A1 (Compatible with G.652.D)	Minimum Bend Radius	10mm
Attenuation at 1310 nm	0.4 dB/km	Attenuation at 1550 nm	0.22 dB/km
Fiber Count	Duplex	Cable Diameter	2.0mm
Cable Jacket	PVC	Polarity	A(Tx) to B(Rx)
Operating Temperature	-10~60°C	Storage Temperature	-20~70°C

Quality Certifications

Network Connectivity

Direct Connection for 400G QSFP-DD/OSFP to 2x QSFP28 CWDM4

Product Highlights

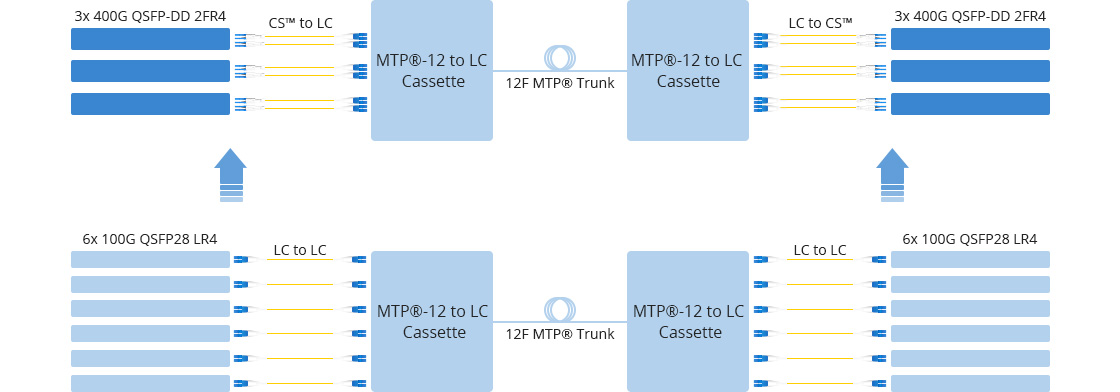

Upgrading to 400G Links with CS™ to LC Fiber Patch Cables

The CS™ to LC uniboot fiber optic patch cables allow you to upgrade the network to 400G links without making changes to the existing fiber cable infrastructure.

For Next Generation Beyond 100G High Density

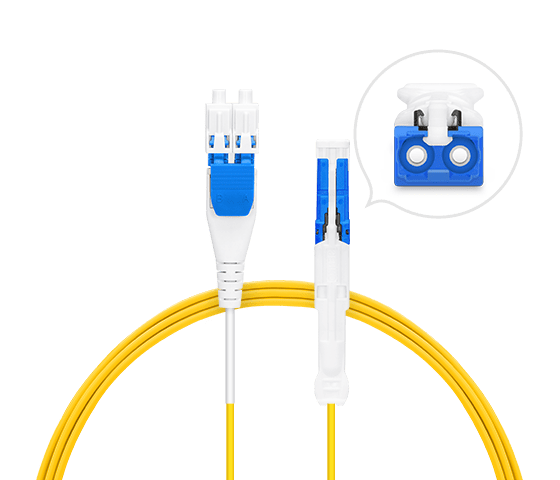

Reach Higher Density with CS™ Connector

40% size reduction compared to LC duplex.

Double the density in patch panel compared to LC.

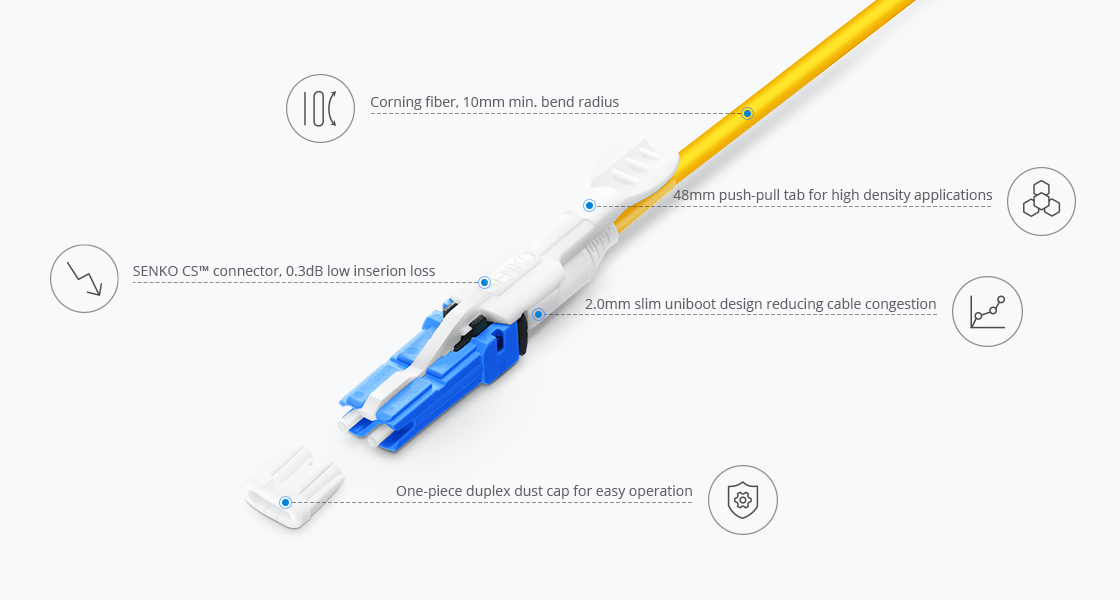

High Performance SENKO CS™ Connector

Datasheet to Download
