Industrial RS-422 to Single-mode Simplex Fiber Converter, 1310nm/1550nm 20km

1310nm/1550nm 20km Industrial RS-422 to Single-mode Simplex Fiber Converter

Serial to Fiber Converters, also called Fiber optic modem, is a device used in optical network communications for sending and receiving data which provides simultaneous and reliable transmission of RS-422 (RS-485 or RS-232) serial interfaces over fiber optical cables over the distances up to 20 km.

Fiber-Mart Industrial RS-422 to Single-mode Simplex Fiber Converter,1310nm/1550nm 20km is an industrial grade bi-directional externally powered converter which converts a standard Simplex RS-422 serial signal to a Single-mode SC or FC connector type fiber optic link. A data direction auto-turnaround feature automatically enables the RS-422 transmit and receive data signals when data is present, avoiding the need for software drivers, and making the device fully plug-and-play.
This serial to fiber Converter can be connected with RS-422 port of computer or other devices, solve the problem of traditional RS-422 communication conflict between distance and rate.

To use picture of RS485 Modem application for reference.

Key Features

• Transmission distance: single-mode 20km
• Working wavelength: simplex 1310nm/1550nm
• Fiber connector: SC/FC (for option)
• Meet EIA/RS-422 transmission standards at data rates up to 500kb/s.
• Asynchronous point to point rate up to 500kb/s ( RS-422)
• Plug-and-Play (hot-pluggable)
• 600W surge protection, 15KV static protection
• Support 220 VAC input, consumption 2W
• RoHS, CE, and FCC certified

Item Information

• Manufacturer: Fiber-Mart Co., Ltd
• Type: RS-422 to Fiber Converter
• Enclosure: External Power supply
• Package: paper box
• Order includes:
  1 X USER MANUAL
  2 X Power Supplies, +12 Volt, 1.5 Amp, Stripped and Tinned Leads
  1 x RS-422 interfaces fiber modem transmitter and 1 x RS-422 interfaces fiber modem receiver

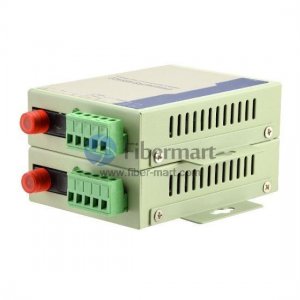

Sample Picture



Ordering Information

Specifications:
