Military-Grade Armored 4 Fibers Single Mode Harsh Environment Tactical Fiber Optic Patch Cable

Armored tactical cable features strong tensile strength, strong pressure resistance and good flexibility characteristics. Besides, it is bending resistant, oil resistant, wear resistant and flame retardant. Therefore, armored tactical cable is ideal for both indoor and outdoor applications, such as rapid wiring/repeated retrieval in military field or connecting the networks of two buildings through the use of an underground conduit or direct buried.

Product Specifications

Connector Type	LC/SC/ST/FC/MTP/ODC/YZC/IP67	Polish Type	UPC/APC
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Fiber Count	4 Fibers	Fiber Grade	G.657.A1
Min. Dynamic Bend Radius	20D (mm)	Min. Static Bend Radius	10D (mm)
Insertion Loss (dB)	LC/SC/ST/FC≤0.3, MTP≤0.35, ODC/YZC≤1.0, IP67 LC/SC≤0.5, IP67 MTP≤0.35	Return Loss (dB)	UPC≥50, APC≥60
Attenuation at 1310nm	0.36 dB/km	Attenuation at 1550nm	0.22 dB/km
Crush Resistance (N/100mm)	1000 (Long Term)/3000 (Short Term)	Impact Resistance	200 Impacts
Flex Resistance	2000 Cycles	Tensile Load (N)	200 (Long Term)/600 (Short Term)
Breakout Diameter	3.0mm (1~4 Fibers) 2.5mm (6~24 Fibers)	Trunk Diameter	3.0mm-7.0mm
Cable Jacket	TPU (Thermoplastic Polyurethane)	Jacket Color	Black
Operating Temperature	-40~85°C	Storage Temperature	-40~85°C

Product Highlights

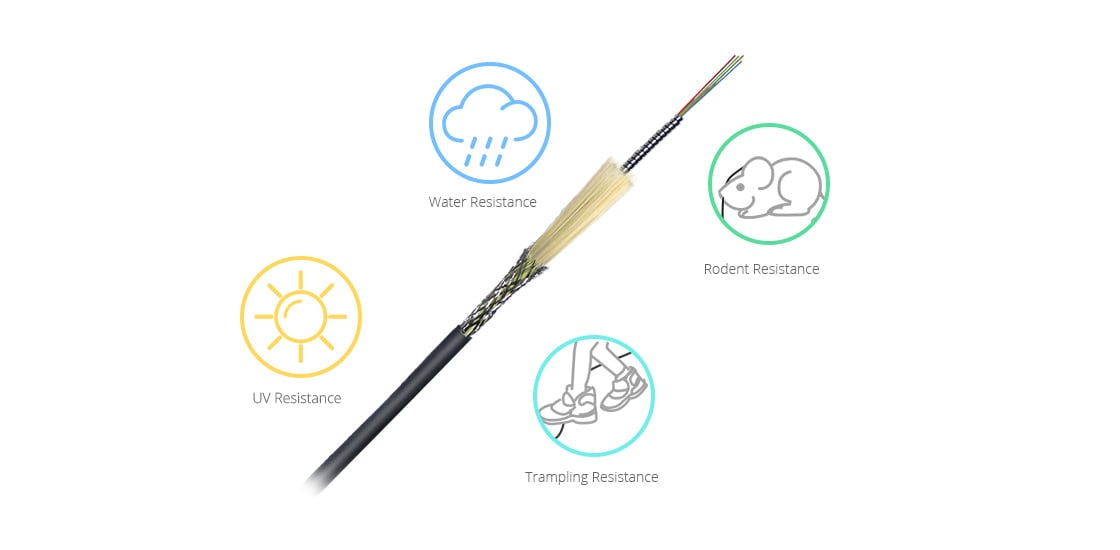

Military Armored Tactical Fiber Patch Cable for Extreme Environments

Perfect for military emergency communications, broadcast television, emergency rush through optical fiber communications, mining and other outdoor applications where protection from moisture, chemicals, corrosive gases, liquids etc. is essential.

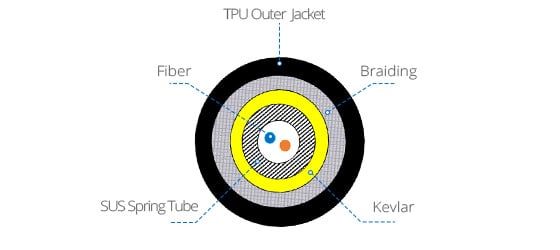

Strong, Lightweight, Armored Tactical Fiber Cable
Constructed of SUS spring tube, Kevlar and braiding, it is ideal for military tactical field use, commercial applications etc.
TPU Outer Cable Jacket
Ensures high abrasion resistance, low-temperature performance, high shear strength and high elasticity.

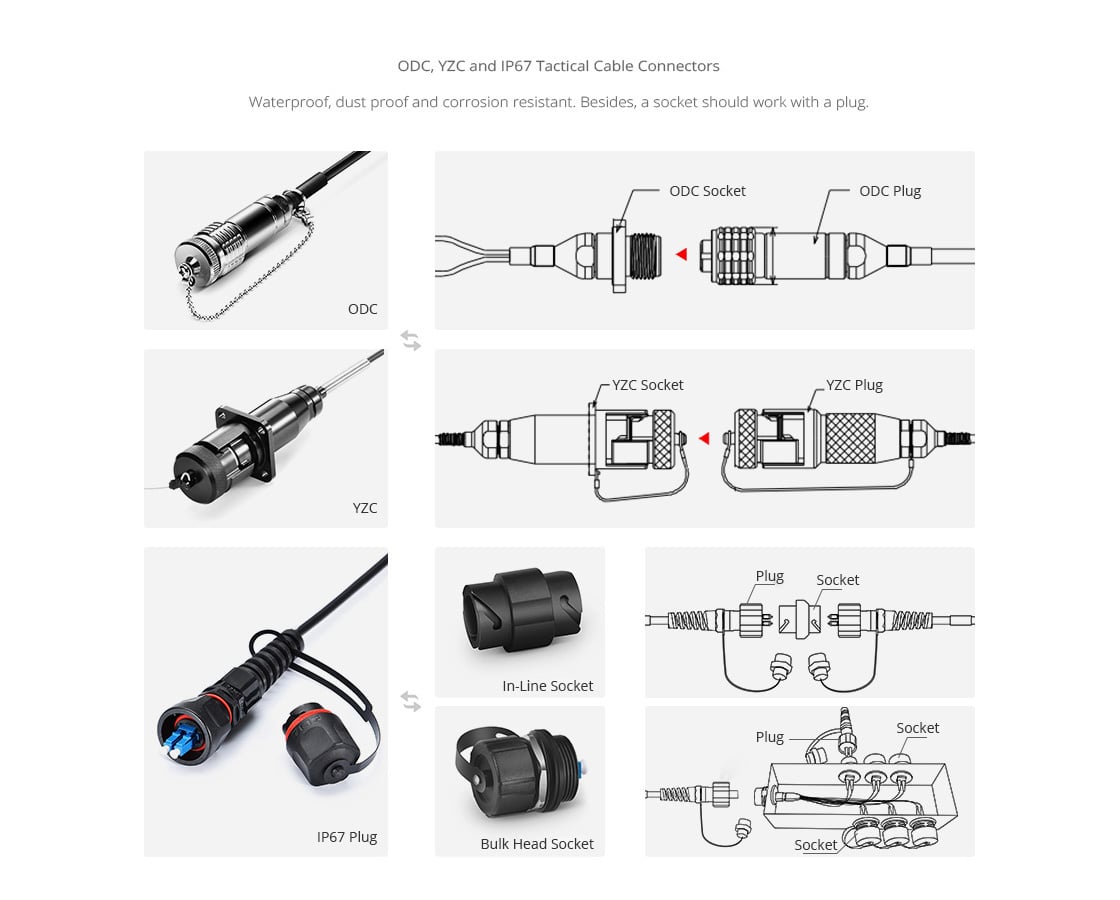

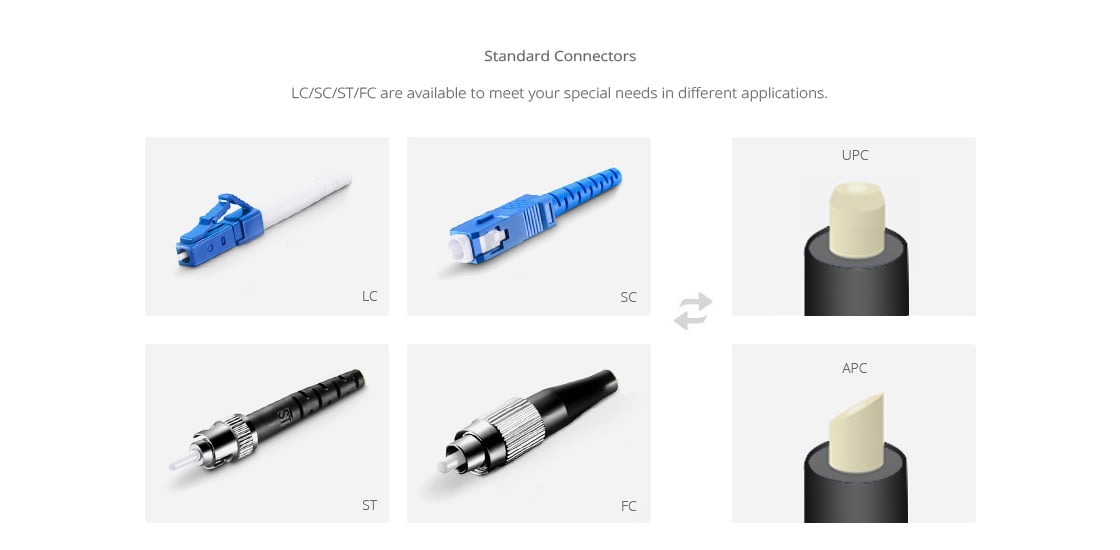

Customized Connectors

Standard LC/SC/ST/FC connectors, ODC plug/socket, YZC plug/socket and IP67 plug/socket are available to meet your special needs in different applications.

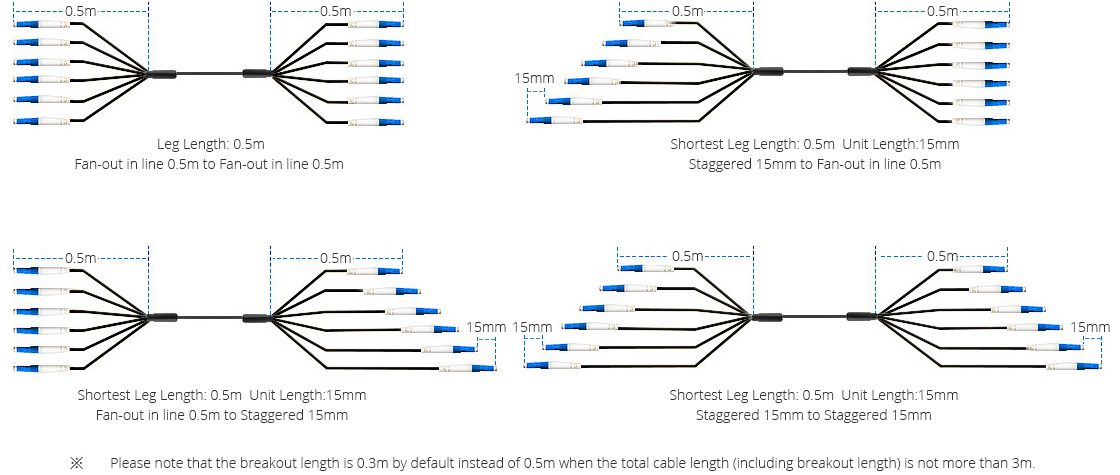

Breakout Types for Optimizing Cable Routing

Four different breakout configurations meet your various needs.

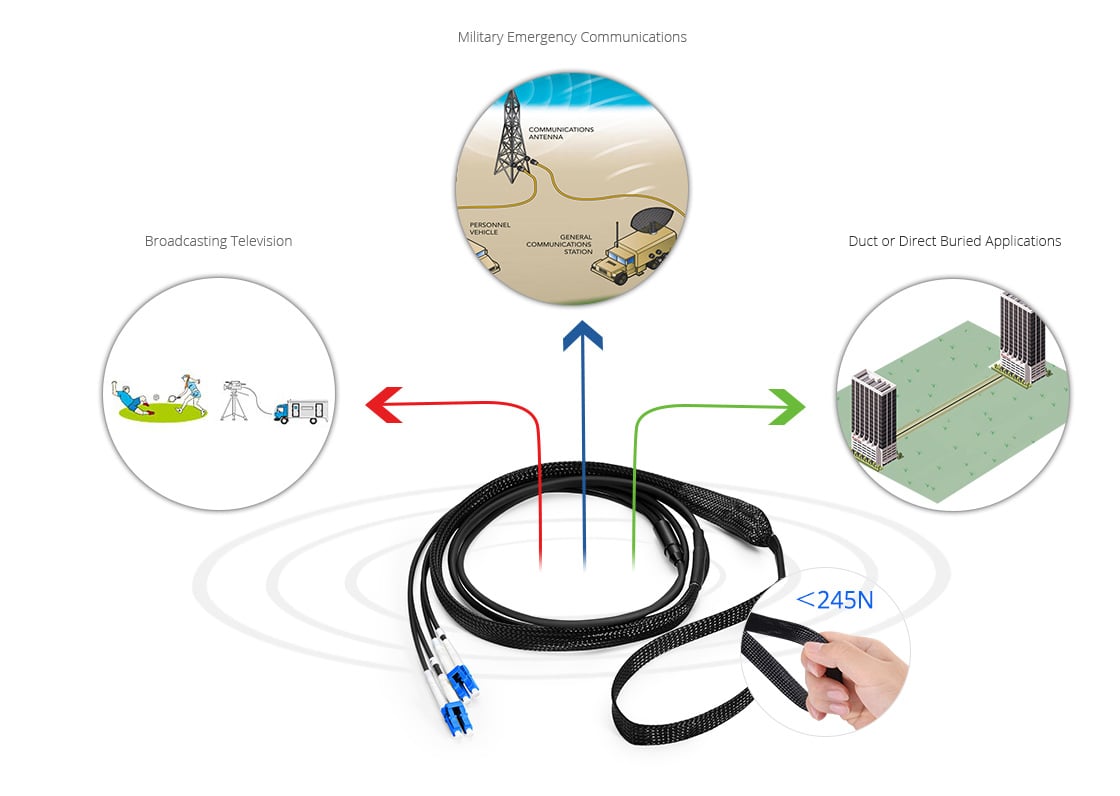

Premium Quality Military Tactical Multifiber Patch Cables

The military-grade tactical cable features impact and crush resistance characteristics which comply with military requirements. It is ideal for both indoor and outdoor applications where deployment and retrieval for reuse is required, it can also be used to connect the networks of two buildings through the use of an underground conduit or not.

Fibermart OS2 Singlemode Military-Grade Tactical TPU Fiber Patch Cable Datasheet

Field Deployable Fiber Cable Reel Datasheet 2026

Datasheet to Download
