LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable

Product Item: #10207
P/N: SM-LCU-E2000A-SX-FM
Starting at: US$4.27

Please Choose:








Order Today, Ship before 04/30/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable



Fiber Patch Cables also known as fiber jumpers or fiber patch cords.Fiber optic patch cable is one of most commonly used components in fiber optic network.
The Definition of 'mode' as in multimode refers to the transmitting mode of the fiber optic light in the fiber optic cable core.
Singlemode fiber optic patch cables send one light signal at a time, and can be used for longer runs than multimode because they have more resistance to attenuation.
The core of a single mode fiber optic cable is 9/125μ (micron).
Single mode fiber optic patch cables can support gigabit ethernet applications for up to 10 kilometers.



Key Features

  • LC/UPC-E2000/APC Connectors
  • Singlemode Simplex fiber optic cable
  • Micron: 9/125um
  • Complete with Lucent Technologies aqua jacket
  • Bandwidth transmitting rates up to 10 gigabits
  • All of our fiber optic patch cables feature the high degree connectors
  • 100% optically tested to ensure high performance



Specifications

Specification Unit FC, SC, LC/Armored Cables ST, MU MT-RJ, MPO E2000
Single-mode Multi-mode Single-mode Multi-mode Single-mode Multi-mode Single-mode
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Wavelength nm 1310,1550 1310,1550 1310,1550 1310,1550
Interchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature -40~75 -40~75 -40~75 -40~75
Storage temperature -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9




Fibermart Fiber Patch Cable Datasheet







Datasheet to Download

Customer Reviews

Displaying 1 to 6 (of 6 reviews)

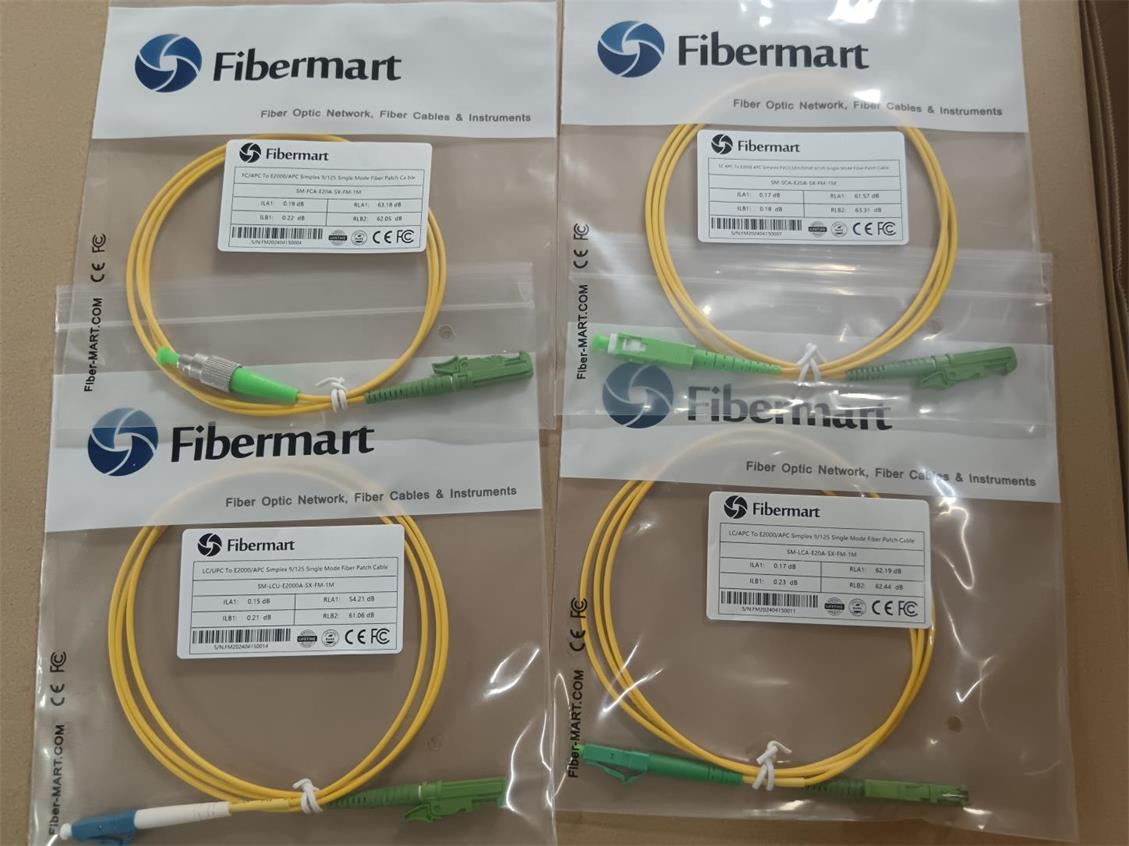

by Jessie Candelaria
Date Added: 04/18/2024
I ordered a lot of patch cables of different lengths, and they were able to complete according to my requirements without making mistakes. It was great!

Rating: 5 of 5 Stars [5 of 5 Stars]
LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable

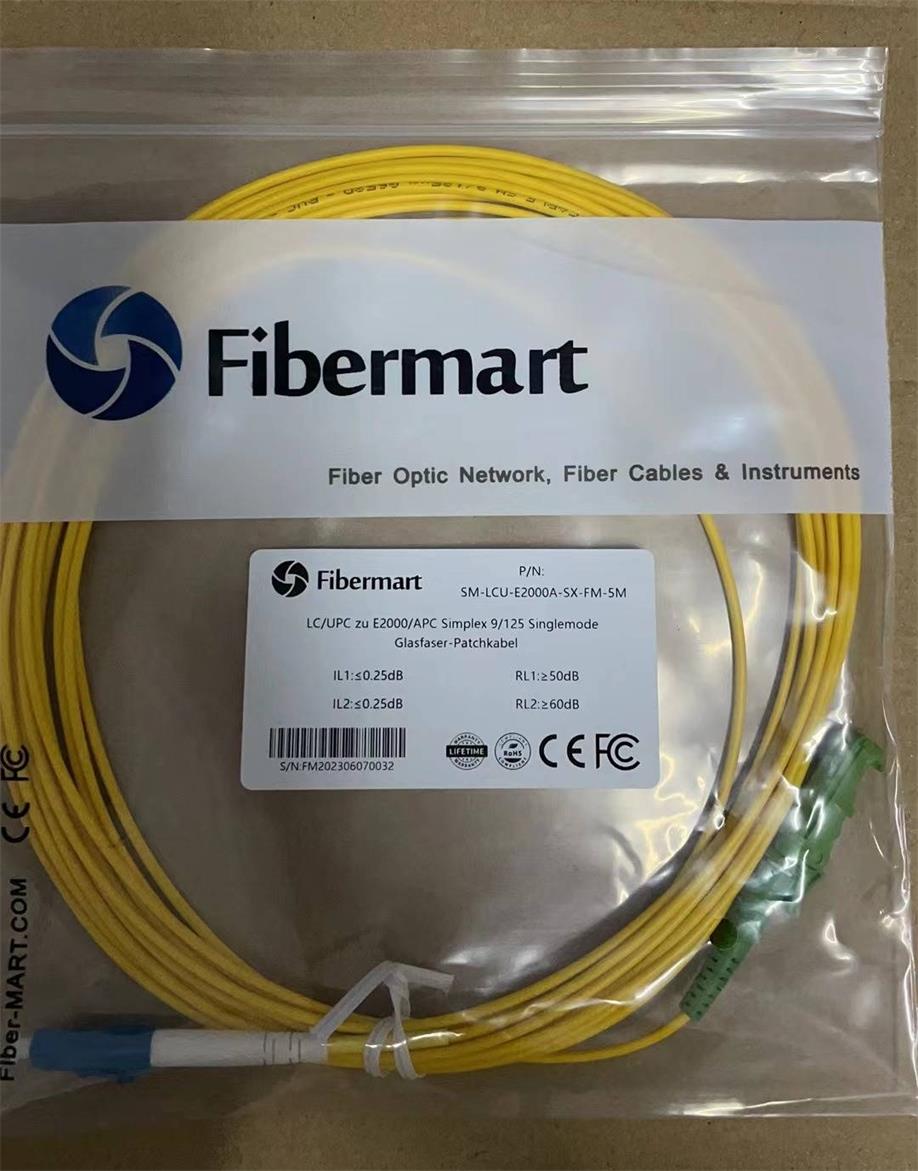

by Yong Min Kim
Date Added: 06/09/2023
The LC to E2000 Patch Cable is good quality, which has low loss and it is very easy to use.

Rating: 5 of 5 Stars [5 of 5 Stars]
LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable

by Kristin Cardarelli
Date Added: 05/05/2023
I received LC to E2000 Patch Cable quite fastly and its prices is very good.

Rating: 5 of 5 Stars [5 of 5 Stars]
LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable

by Jason Rebar
Date Added: 12/20/2022
This LC/UPC to E2000/APC patch cables is not bad, no problems have been found, and the price is not expensive.

Rating: 5 of 5 Stars [5 of 5 Stars]
LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable

by Corey Bishy
Date Added: 08/19/2021
Nice lc to e2000 cable we got, thanks!

Rating: 5 of 5 Stars [5 of 5 Stars]
LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable

by Ginens
Date Added: 08/13/2020
We got LC to E2000 Patch Cable in quickly and the quality of the cables also packaging are good!

Rating: 5 of 5 Stars [5 of 5 Stars]
LC/UPC to E2000/APC Simplex 9/125 Single mode Fiber Patch Cable
