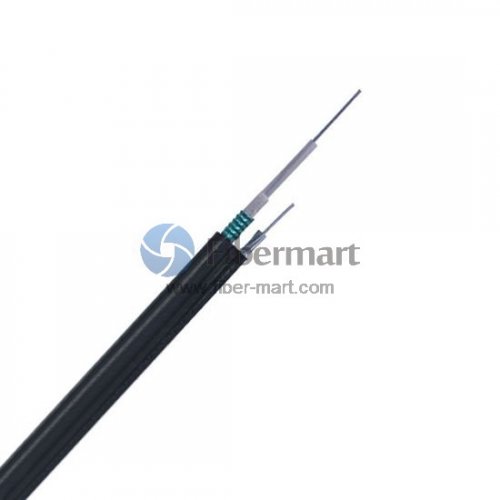

6 Fibers Multimode Aerial Self-supporting Figure 8 Single -Armored Single-Jacket Central Loose Tube Cable GYXTC8S

Item de produto: #4187

(0 Avaliações de Clientes)

P/N: sku4187

US$0.83

Seleccione:

Comprimento do pacote:

Order Today, Ship before 06/14/2026, from U.S. or Hong Kong

Descrição
Ficha dados
Tags
FAQ

FM SKU#:SKU00677E2
Model#:GYXTC8S-6A1b
MFG PART#:

GYXTC8S fiber optic cable is a figure 8 structure cable, suitable for installation in aerial environment for long haul communications.

This optical cable is 4 cores to 12 cores types available. The water resistant tape provides water tight property. Corrugated steel tape and the PE outer sheath of GYXTC8S fiber optic cable provide crush resistance and gun shot resistance. The figure 8 steel wire work as self supporting member providing excellent strain performance and convenient installation for this GYXTC8S fiber cable.

Item Details

Fiber Count : 6 Fibers

Fiber Type: 62.5/125μm Multimode

Out Jacket (default): PE

Cable Structure


Features With Small cable diameter, light cable weight, self-support Excellent mechanical and environmental properties Proper design and precise control for fiber excess length Corrugated steel tape and the PE outer sheath ensure crush resistance and gun shot resistance The water resistant tape provides water tight property		Application Adopted to outdoor distribution Suitable for aerial (self- supporting),decrease cost Long distance and local area network communication

Package


Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart

Cable Count	Out Sheath Diameter	Weight	Minimum Allowable Tensile Strength (N)	Minimum Allowable Crush Load （N/100mm)	Minimum Bending Radius (MM)	Storage Temperature
	（MM)	（KG)	short term	long term	short term	long term	short term	long term	（℃）
2	3.8×5.5	70	1500	200	1200	200	20D	10D	-40+60
4	3.8×5.5	70	1500	200	1200	200	20D	10D	-40+60
6	3.8×5.5	70	1500	200	1200	200	20D	10D	-40+60
8	3.8×5.5	70	1500	200	1200	200	20D	10D	-40+60
12	3.8×5.5	70	1500	200	1200	200	20D	10D	-40+60

	G.652	50/125µm	62.5/125µm
Attenuation (+20°C) (dB/km)	@850nm		≤3.0	≤3.0
@1300nm		≤1.0	≤1.0
@1310nm	≤0.36
@1550nm	≤0.22
Bandwidth (Class A) (MHz·km)	@850nm		≥600	≥200
@1300nm		≥1200	≥600
Numerical Aperture		0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc (nm)	≤1260

Fibermart GYTC8S Self-supporting Aerial Fiber Cable 12-144F PE Black Datasheet
