S5850-32S2Q 32-Port 10Gb SFP+ L2/L3 Data Center Leaf Switch with 2 40G QSFP+ Uplinks

S5850-32S2Q (32*10Gb+2*40Gb) 10Gb SFP+ Switch with 40G Uplinks for Data Center

S5850-32S2Q is a high performance Leaf switch to meet the next generation Metro, Data Center and Enterprise network requirements. It has 32-port 10Gb SFP+ and 2-port 40Gb QSFP+ in a compact 1RU form factor and it's a low latency L2/L3 Ethernet switch. The S5850-32S2Q comes with the complete system software with comprehensive protocols and applications to facilitate the rapid service deployment and management for both traditional L2/L3 networks. With support for advanced features, including MLAG, VXLAN, IPv4/IPv6, SFLOW, SNMP etc, this switch is ideal for traditional or fully virtualized data center.

The S5850-32S2Q is cost-effective Ethernet aggregation and core layer to Data Center application and is ideally designed for demanding workloads.

Quality Certification

Quality and standards are the foundation of Fiber-MART.COM. We are dedicated to providing customers with the outstanding, standards-compliant products and services.Fiber-MART.COM has passed many quality system verification, like ISO9001, ETL, CE, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

• This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
• This product fully accords with the ETL to indicate conformity with relevant industry standards for any electrical or mechanical product. Please contact us to learn more.
• This product was produced under the requirements of CE to indicate conformity with the essential health and safety. Please contact us to learn more.
• This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.

Product Highlights

How to Configure MLAG (Multi-Chassis Link Aggregation)

Data Center Grade Hardware Design

Hot-swappable Redundant fans and power supplies High quality electronic components Low power consumption

Traffic Visibility and Trouble-shooting Oriented Design

CPU can capture any forwarding packets. So users can analyze the network flow without external mirror tools and the capture can be based on filter rules Support elephant flow detection. It can be used to monitor the exceptional huge flows in the network timely. Then some actions can be taken based on the capture, including redirect, drop, rate-limit, send BGP black-hole route and adjust the flow path dynamically ACL can match VxLAN/NvGRE inner header. So that it can realize the VM end-to-end monitoring and trouble-shooting under the overlay network environment ASIC level telemetry support, including each packet latency, latency watermark, packet buffer timely utilization, buffer micro burst Support IP fast Ping and L2 Ping Open RPC API

Data Center Scenario Oriented Design

Support VxLAN/NvGRE, including Routing/Bridging Support ECN and PFC, etc. Support up to 64 ways ECMP Support MLAG and VARP Support static load balancing and dynamic load balancing. Vxlan/Nvgre inner header can paticipate in hash calculation.

Networking OS Preloaded

L2/L3 Metro Ethernet Data Center Network IEEE, IETF and MEF

Supported Optical Transceivers and Cables

1G SFP, 1G BIDI SFP, 1G CWDM SFP, 1G Copper 10G SFP+, 10G BIDI SFP+, 10G CWDM SFP+, 10G DWDM SFP+, 10GBASE-T 10G DAC, 10G AOC 40G QSFP+ 40G DAC, 40G AOC

10Gb Leaf Switch for Data Center

S5850-32S2Q features 32 SFP+ ports and 2 QSFP+ ports which provides 400Gbps non-blocking bandwidth and 596Mpps L2/L3 throughput.

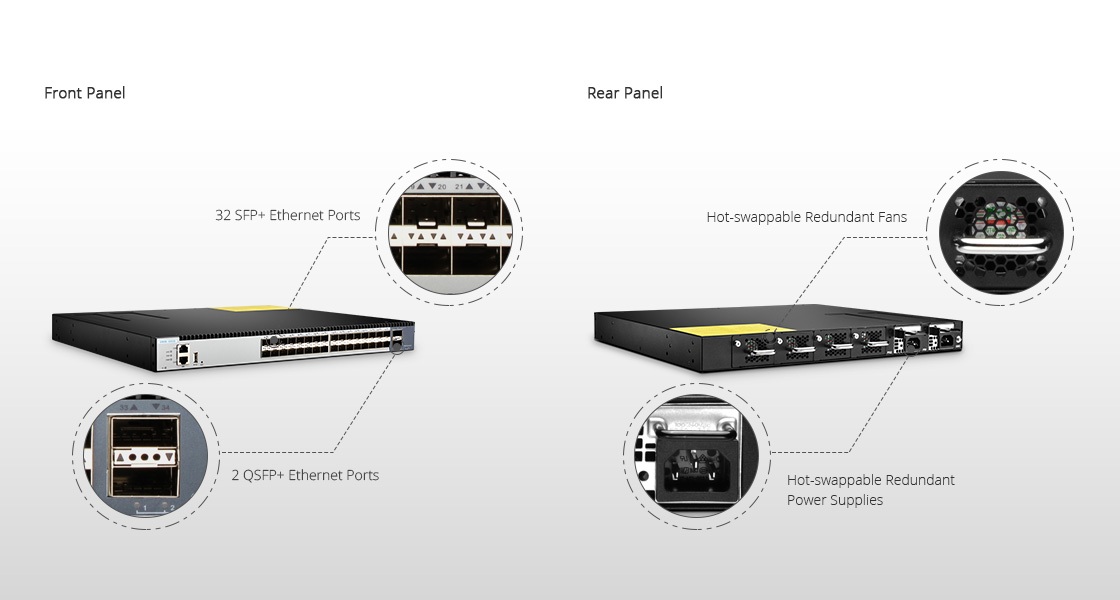

Front and Rear Panel Overview

Flexible Hardware Design

• Hot-swappable Power Supplies
• Hot-swappable Fans
• Low Power Consumption

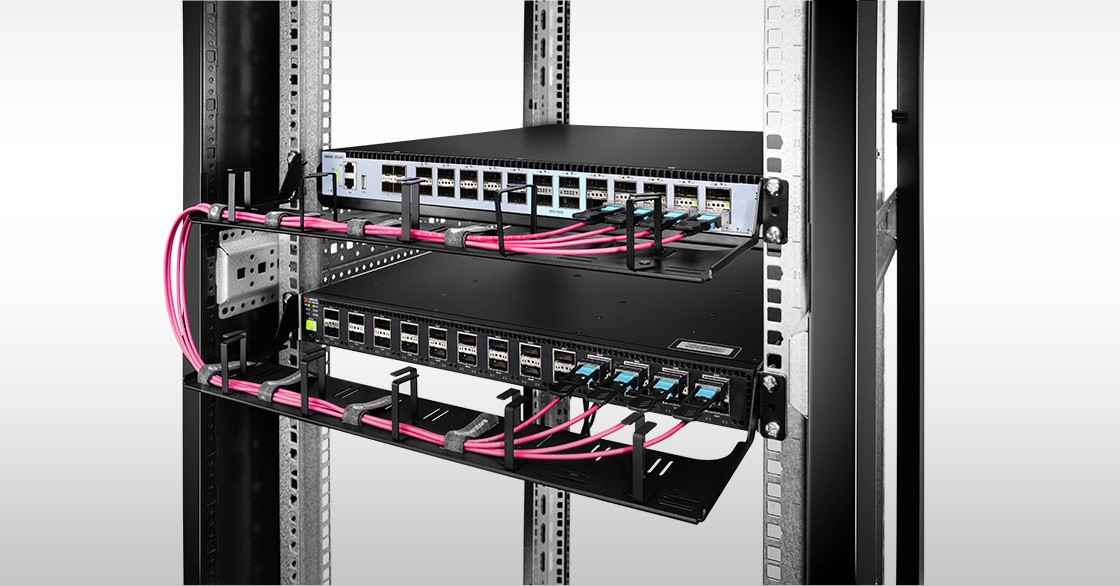

High Compatibility Ethernet Switches

Fiber-MART.COM S5800/S5850/S8050 series are high compatibility Ethernet switch which can work with Broadcom, Cisco, Juniper, Arista switches, as well as other brands of switches.

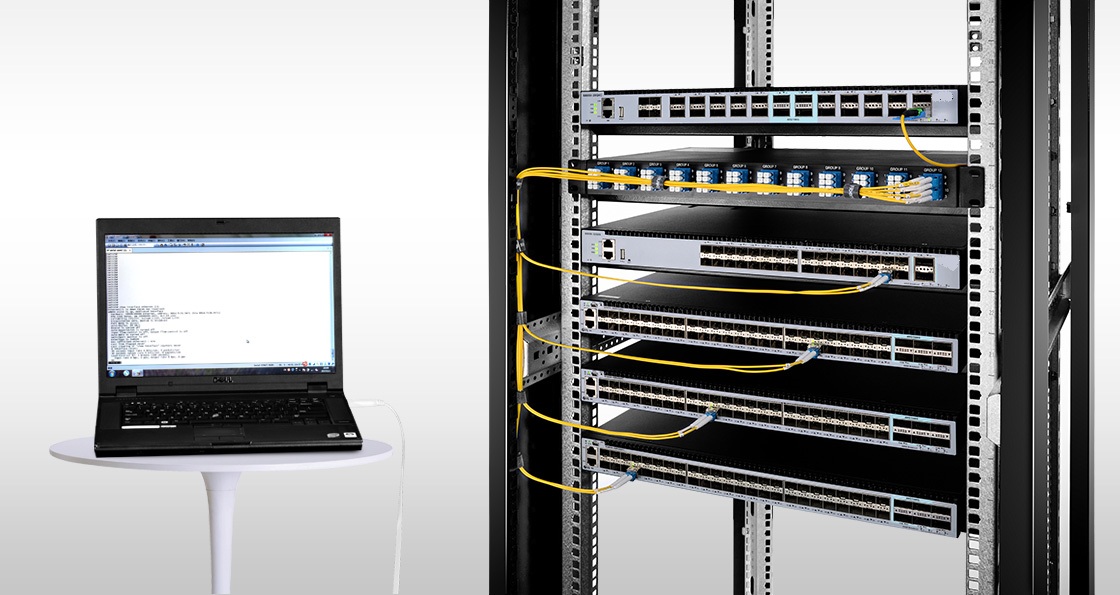

Networking OS

Fiber-MART.COM software provides common user interface and available command set to manage our Ethernet switches.

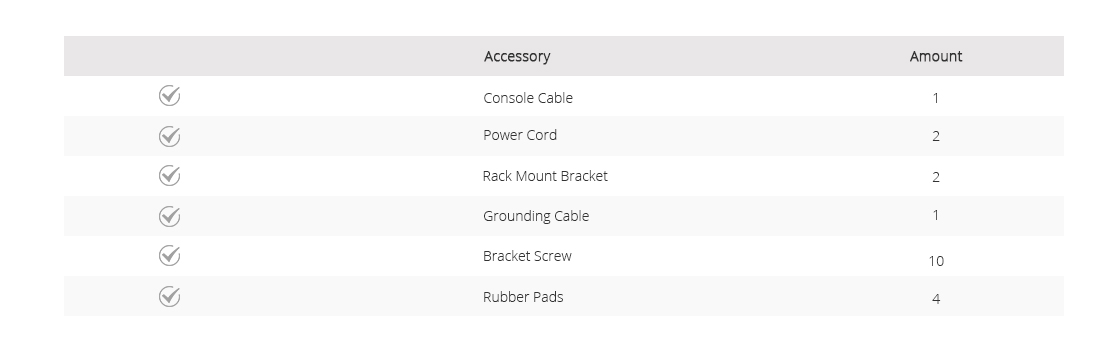

Accessories List
