S5850-48T4Q 48-Port 10GBase-T L2/L3 Data Center ToR/Leaf Switch with 4 40G QSFP+ Uplinks

S5850-48T4Q (48*10Gb Base-T +4*40Gb QSFP+ ) 10GBase-T Switch with 40G Uplinks for Data Center

The S5850-48T4Q is a high-performance ToR/Leaf switch for Data Center and Enterprise network requirements. The S5850-48T4Q provides full line-rate switching at L2/ L3 with 48 x 10GBase-T ports and 4 x 40Gb uplinks in a compact 1RU form factor. The S5850-48T4Q comes with the complete system software with comprehensive protocols and applications to facilitate the rapid service deployment and management for both traditional L2/L3 networks. With support for advanced features, including MLAG, VXLAN, NVGRE, SNMP etc, this switch is ideal for traditional or fully virtualized data center.
The S5850-48T4Q is cost-effective Ethernet aggregation platform to Data Center application and is ideally designed for demanding workloads.The S5850-48T4Q hardware provides high-availability features, including pluggable redundant fans and using high quality electronic components.

Product Highlights

How to Configure MLAG (Multi-Chassis Link Aggregation)

Data Center Grade Hardware Design

Pluggable Redundant fans and power supplies The temperature and status of fans and power supply are real-time monitored by the system The fan supports intelligent speed control function, green and energy-saving High quality electronic components Low power consumption and low latency

Metro Ethernet Network Features

Support QinQ and Vlan Translation Support MSTP and ERPS Support operating rates: 1Gbit/s, 10 Gbit/s, 40 Gbit/s and auto-negotiation Support Port-Block and Storm Control(unicast/broadcast/multicast)

Open System Design

Programmatic access to system state: Phython Open API OpenStack Neutron(cloud agent) OVSDB(configure VLAN/Tunnel)

Traffic Visibility and Trouble-shooting Oriented Design

CPU Traffic Limit Traffic classification based on the combination of the MAC address, IPv4 address, L2 protocol header, TCP, UTP, outgoing interface, and 802.1p field Traffic behaviors, includng access control after traffic classification, traffic policing based on traffic classification (Policer), re-marking based on traffic classification (COS, DSCP) and class-based packet queuing Support EF-DLB(elephant flow based DLB). It can be used to monitor the exceptional huge flows in the network timely Hierarchical CLI protection to prevent unauthorized users from accessing Switch Support ACL filtering (Standard ACL and extend ACL), it can realize the VM end-to-end monitoring and trouble-shooting under the overlay network environment Support DHCP packet filtering (Option 82) and ARP Inspection RADIUS and TACACS+ authentication

Data Center Scenario Oriented Design

Support Ping and Traceroute (IPv4) Support VXLAN gateway, VXLAN bridge and VXLAN routing Support ECMP self-healing, ECMP-DLB(Dynamic Load Balance ECMP) Support Explicit congestion notification(ECN) and PFC (Priority Flow Control) Support MLAG with Overlay(VXLAN, NVGRE, GENEVE) and VARP Static/Dynamic Load Balancing among the links of a Link aggregation

Supported Optical Transceivers and Cables

40G QSFP+ 40G DAC, 40G AOC, 40G to 4x10G AOC, 40G to 4x10G DAC

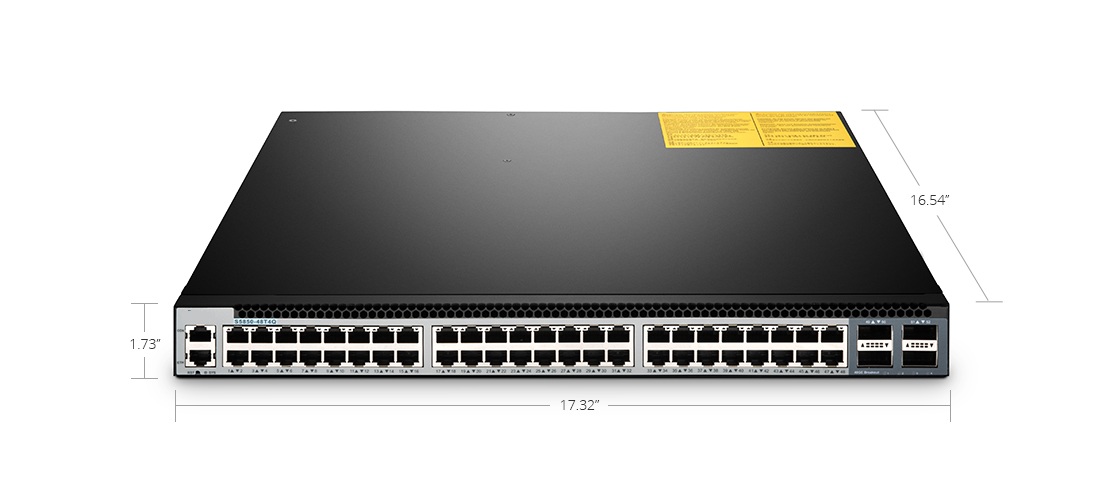

10Gb ToR/Leaf Switch for Data Center

S5850-48T4Q has 48-port 10Gb Base-T RJ45 and 4-port 40Gb QSFP+ in a compact 1RU form factor and it's low latency L2/L3 Ethernet switch.

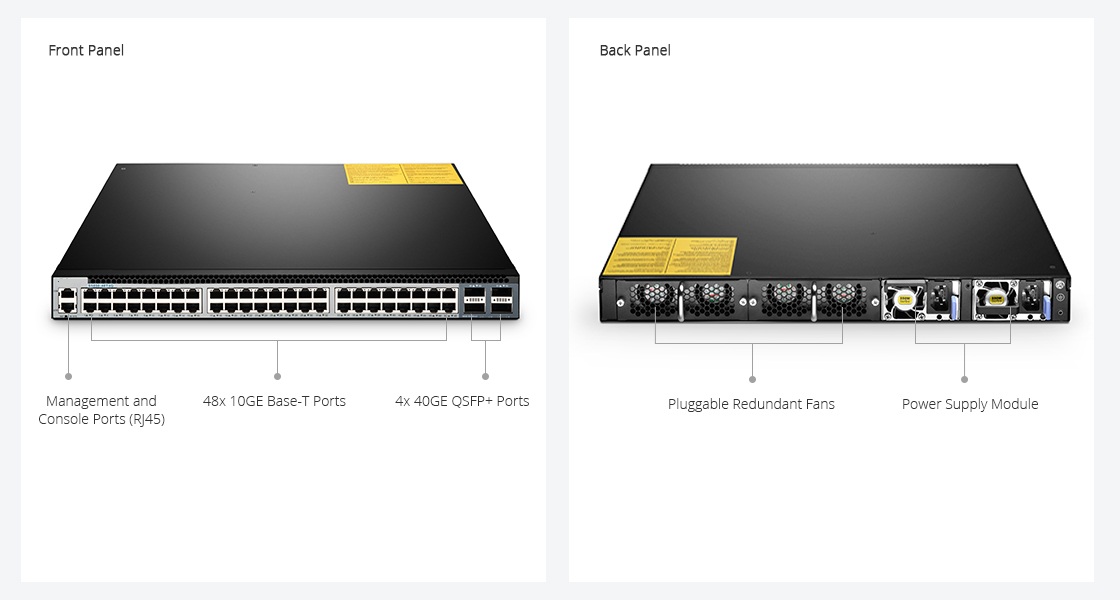

Front and Back Panel Overview

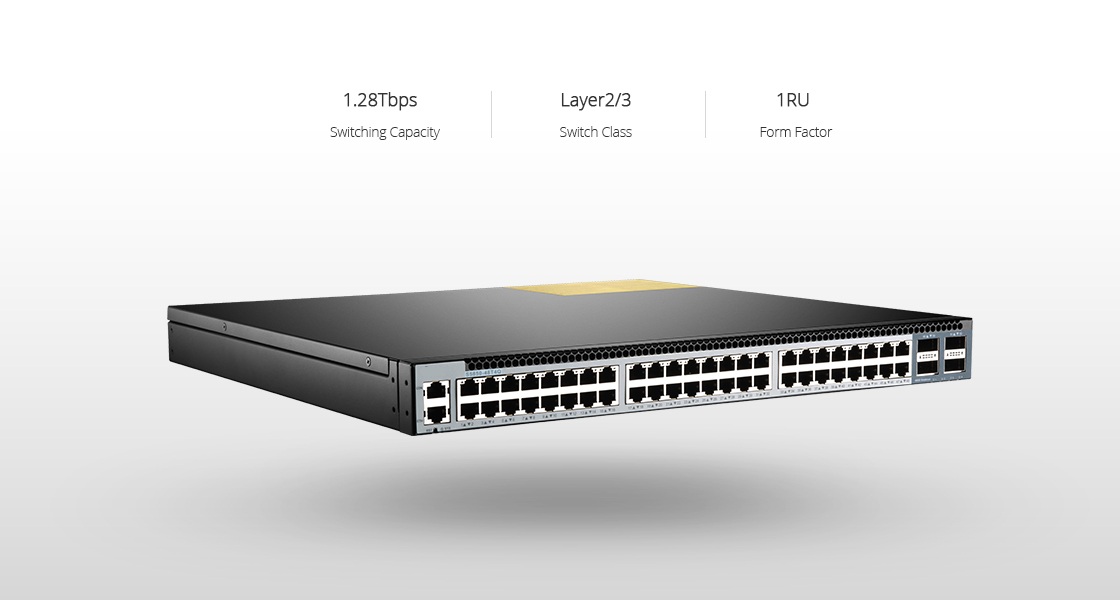

High Performance Data Center Switch

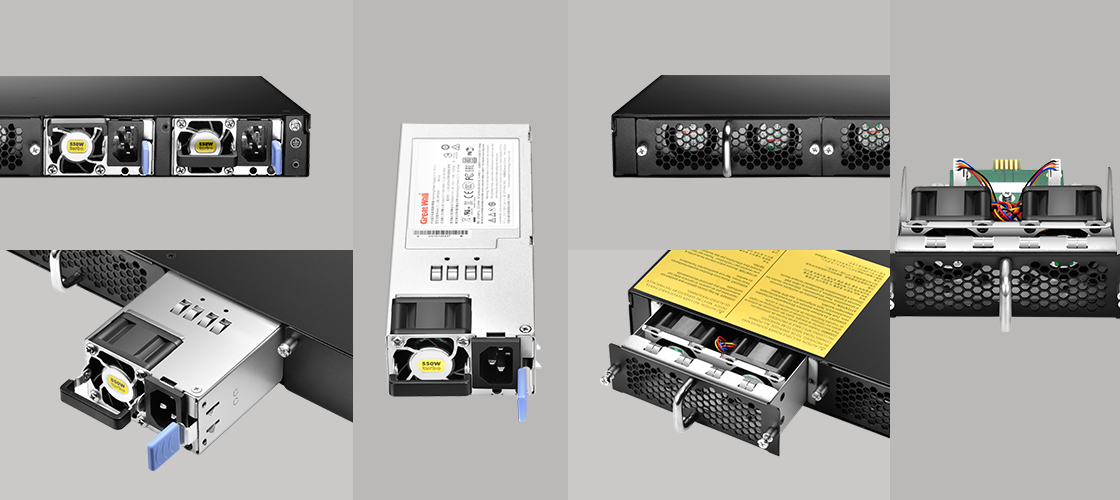

Flexible Hardware Design

• Hot-swap Power Supplies
• Hot-swappable Fans
• Low Power Consumption

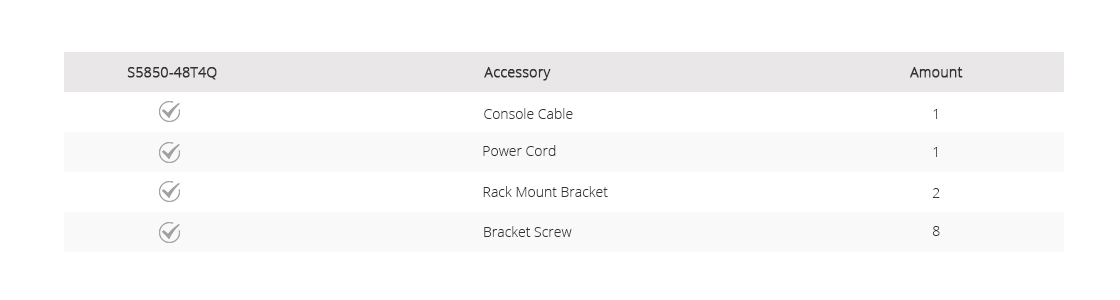

Accessories List
