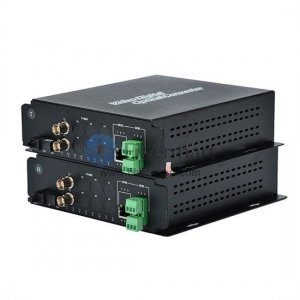

1 Channel Video & 1 Return Data & 1 Forward Audio to Fiber SM 20km Optical Video Multiplexer

FM SKU#:SKU70004J
Model#:FM-1V1D1A-SM-20
MFG PART#:

1 Channel Video & 1 Return Data & 1 Forward Audio to Fiber Optical Video Multiplexer Transmitter and Receiver SM FC 20km

Descriptions

• Model: FM-1V1D1A-SM-FC-20KM
• Transmitter + Receiver
• Fiber Mode: Single-Mode
• Wavelengths: 1310nm/1550nm
• Optical Power Budget: 12dB
• Maximum Transmission Distance: 20km
• Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
• Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)

Key Features

• Support Point-to-Point or Daisy-Chain connection
• Uncompressed Digital Composite Video over one fiber
• Compatible with all PAL, NTSC,SECAM Video Systems
• Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
• Single-Mode Fiber Support for Distances up to 100 km
• LED Status Provide Rapid Indication of Operating Parameters
• No EMI or RFI and no ground loops
• Support Coarse Wavelength Division Multiplexing (CWDM)
• Stand alone
• Produce according to customer's specifications,providing OEM

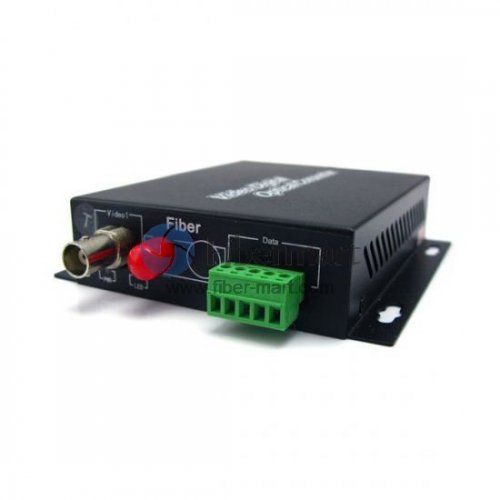

Picture Details

Specifications
