1Fibra monomodo de una sola armadura KFRP miembro de la fuerza PE FTTH Duct Cable-GJFDC

FM SKU#:SKU00557E2
Model#:GJFDC-1KP
MFG PART#:

It is specially design for connecting user's equipment with outdoor feeder cable, particularly suitable for duct installation. The optical fiber unit is positioned in the center. Two parallel strength members are placed at two sides. The cable is with a jacket to become FTTH Drop Cable. Then FTTH Drop Cable is completed with waterproof tape, AL-plastic tape and outer jacket.

The two parallel K-FRP strength member improves the tensile strength. The cable is completed with PE sheath protects cable from ultraviolet radiation, which has good flame retardant performance. Water blocking tape & AL-plastic tape has good water proof ability.

Item Details

• Fiber Count: 1 Fiber


• Fiber Type: Single-mode G.657A


• Strength Member: K-FRP


• Outer Jacket: PE

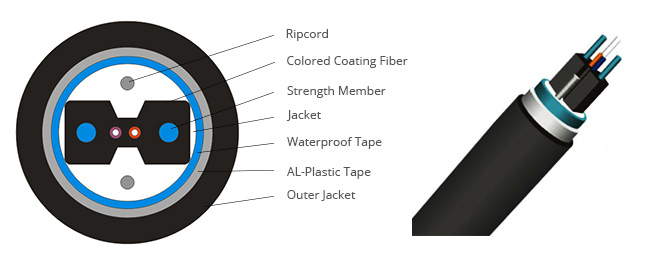

Cable Structure

Features PE sheath protects cable from ultraviolet radiation. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property. Used in aerial and duct access cabling. Soft and flexible, good bending performance. Non-metallic strength member is Kevlar fiber reinforced plastic known as K-FRP. AL-plastic tape makes the cable crush resistant and moisture proof. The purpose of a water-proof tape is to help prevent the ingression of water into the cable.		Application Used in aerial and duct access cabling Installation in small bending environment Suitable for the connection between indoor and outdoor

Package

Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart
