Fibermart 100GBASE-SR4 QSFP28 850nm 100m DOM Optical Transceiver Cisco QSFP-100G-SR4-S

Press Esc key to close this popup
  • Fibermart 100GBASE-SR4 QSFP28 850nm 100m DOM Optical Transceiver Cisco QSFP-100G-SR4-S

Fibermart 100GBASE-SR4 QSFP28 850nm 100m DOM Optical Transceiver Cisco QSFP-100G-SR4-S

SKU: #16865
P/N: FMQSFP28-SR4-100G
US$125.00



( Order Today, Ship before 03/08/2021 )
  • Detalles
  • Pedido de soporte
  • Otras observaciones
  • Etiquetas:

100G-SR4 QSFP28 850nm 100m DOM Optical Transceiver Cisco QSFP-100G-SR4-S Compatible


Specifications

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 Optical Transceiver Module for Data Center, Ethernet and Telecom (MMF, 850nm, 100m, MTP/MPO, DOM)

The Cisco QSFP-100G-SR4-S Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. It provides high-density and low-power 100GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications. It is fully compliant with the QSFP28 MSA, IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard.

Cisco Compatible QSFP-100G-SR4-S Vendor Name Fibermart
Form Factor QSFP28 Max Data Rate 103.1 Gbps
Wavelength 850nm

Max Cable Distance [email protected]/[email protected]
Connector MTP/MPO-12 Media MMF
Transmitter Type VCSEL 850nm Receiver Type PIN
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -8.4~2.4dBm Receiver Sensitivity <-10.3dBm
Power Consumption 3.5W Extinction Ratio 3dB
Modulation Format NRZ CDR TX and RX
Transmit and Dispersion Penalty 5dB Powerbudget 1.9dB
Packaging Technology COB (chip on board) Packaging FEC Function

Supported
Protocols QSFP28 MSA Compliant Application 100GBASE Ethernet, Data Center, Telecom


Quality Testing Program



Quality Certifications

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.


Network Connectivity

Data Center Interconnect Solution for 100G Gigabit Ethernet Switches with FAPs and Fiber Enclosures



Product Highlights

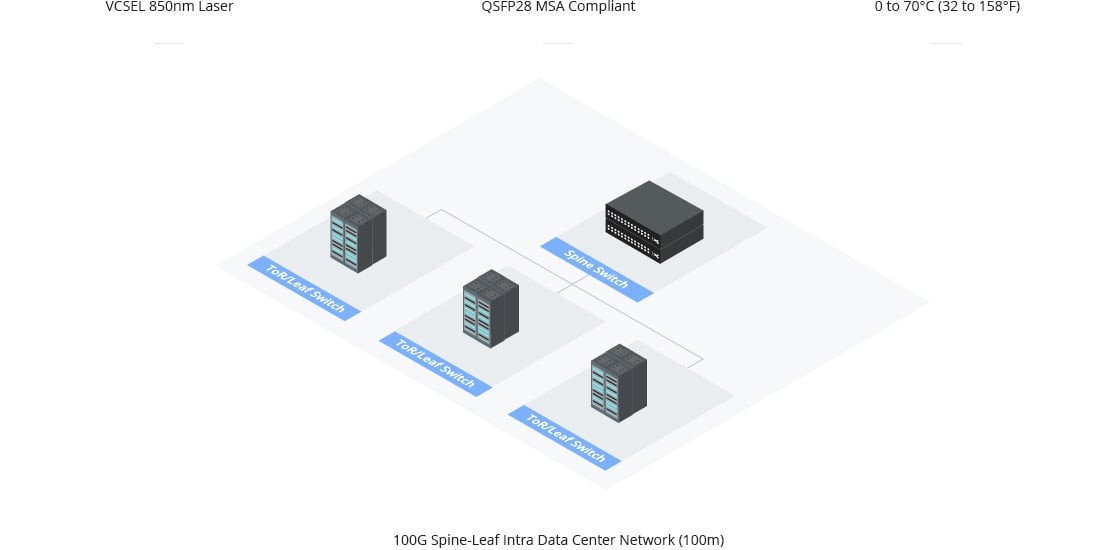

Reliable Connectivity Within Data Center

Featured with high reliability, low insertion loss and better signal quality, the 100GBASE-SR4 QSFP28 transceiver is widely applied for 100G Ethernet ToR/Leaf to Spine links reach up to 100m.

Cisco Connectivity Within Data Center FIBERMART

Comprehensive Performance Test


100G transceivers are certified and tested through the automatic quality control system, which can test and ensure the performance of transceivers in actual working environment to avoid quality problems such as transmission error, link flapping, and so on.




Test Bed

Cisco Catalyst C9500-24Y4C


Platform Support

Cisco QSFP-100G-SR4-S is supported on a wide range of Cisco equipment.



Cisco NCS-5501 Cisco Nexus N9K-C92160YC-X Cisco Nexus 9000 Series (Modular 9500) N9K-X9432C-S Cisco Nexus 3000 Series N3K-C3232C
Cisco ONS Transport Platform NCS-1002-K9Cisco Nexus 9000 Series (Fixed 9200) N9K-C92160YC-XCisco Nexus 9300-EX Series 93180YC-EXCisco Catalyst C9500-24Y4C
