Description:

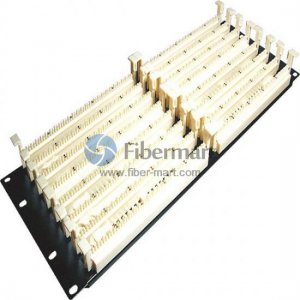

110 Cross Connection Panel from Fiber-Mart is a flexible, reliable and high density system that exceeds the ANSI/TIA/EIA-568-B.2 Category 5e component performance specifictions. They are designed for 19" mounting construction. These are used for voice and data applications where space limits the use of relay rack. A high density 110 termination field for voice and data applications can be created by mounting 110 Cross Connection Panel on wall or distribution frame. 110 Cross Connection Panel are available 100,200,300 and 400pair type panel.

Features:

Exceeds ANSI/TIA/EIA-B.2 Category 5e Specifications
Accepts discrete wire or 110-type patch cord
Cost-effective, reliable solution for high-density applications
Interoperability with existing 110 systems
Flexible solution sonsisting of 100 ,200,300 and 400 pair connecting panels

Material Specifications:

Polycarbonate UL 94V-0
Conductor: Solid or Stranded 26-22 AWG

Standards/Compliance:

·Meets ANSI/TIA/EIA-568-B.2-6-110 Requirements
·Meets ISO/IEC Generic Cabling Standard 11801:2002 ed.2.0
·Meets CENELEC Generic Cabling Standard EN50173-1:2002
·Electrical specs according to UL 1863
·RoHS Compliant

Datasheet to Download
