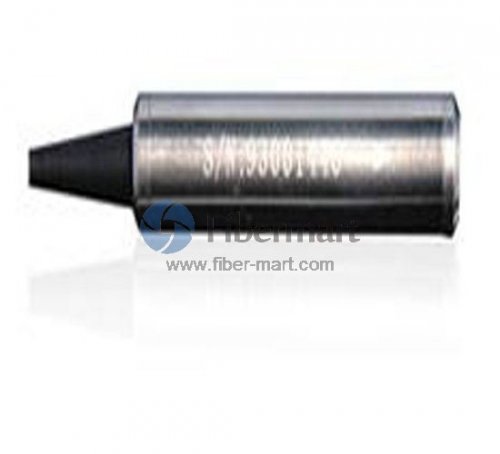

Espejo de fibra óptica que mantiene la polarización 1480nm
Características
Pérdida de inserción baja
Tamaño compacto
Estabilidad ambiental
Aplicaciones
Sistemas de comunicación
Instrumentos de prueba
Sensor de fibra
Investigar
Especificaciones
Parameter |
Values |
Operating wavelength (nm) |
1310 or 1550 |
Operating bandwidth (nm) |
±15 |
Reflection Percentage(dB) |
99% |
98% |
97% |
95% |
90% |
Insertion loss (dB) |
≤0.20 |
≤0.25 |
≤0.30 |
≤0.40 |
≤0.45 |
ER(dB) |
≥20 |
Power handling (mW) |
≤500 |
Fiber Type |
PM Panda Fiber or Specify |
Operating temperature(℃) |
-20 ~ +70 |
Storage temperature(℃) |
-40~ +85 |
Información sobre pedidos
FM |
Wavelength |
Pigtail Type |
Fiber Type |
Length |
Connector |
Size |
|
1064 |
250= 250um bare fiber |
1=PM Panda Fiber |
1= 1m |
NE=None |
Ф5.5x35 Ф3.0x15 |
1310 |
900= 900um loose tube |
4=Specify |
FA=FC/APC |
Ф4.5x25 |
1550 |
|
|
FC=FC/UPC |
|
|
|
|
SA=SC/APC |
|
|
|
|
SC=SC/UPC LC=LC/UPC |
|
|
|
|
LA=LC/APC |
|
|
|
|
XX=Other |
|
Parameter |
Values |
Operatingwavelength(nm) |
1310or1550 |
Operatingbandwidth(nm) |
±15 |
ReflectionPercentage(dB) |
99% |
98% |
97% |
95% |
90% |
Insertionloss(dB) |
≤0.20 |
≤0.25 |
≤0.30 |
≤0.40 |
≤0.45 |
ER(dB) |
≥20 |
Powerhandling(mW) |
≤500 |
FiberType |
PMPandaFiberorSpecify |
Operatingtemperature(℃) |
-20~+70 |
Storagetemperature(℃) |
-40~+85 |
