2M Simplex LC/APC 9/125 Singlemode Fiber Optic Pigtail 0.9mm PVC Jacket

SKU: #13792

(0 Comentarios)

P/N: SM-LCA-FP-2M-PVC

Desde: US$1.10

Por favor, elija:

Diámetro del cable:

Detalles personalizados:

Order Today, Ship before 06/09/2026, from U.S. or Hong Kong

Detalles
Ficha datos
Tags
FAQ

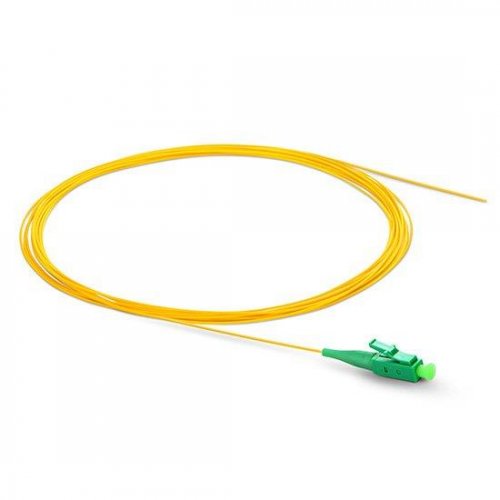

2M Simplex LC/APC 9/125 Single-mode Fiber Optic Pigtail

Fiber optic pigtails link the fiber optic cable with fiber optic equipment by splicing with other fiber cores. Fiber-MART.COM's simplex multi-mode fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Connector A	LC	Connector B	Unterminated
Fiber Category	Single-mode (OS2)	Fiber Count	Simplex
Polish	APC	Cable Diameter	0.9mm
Jacket Material	PVC	Jacket Color	Yellow
Wavelength	1310nm and 1550nm	Durability	>1000 Times
Insertion loss	0.3dB	Interchangeability	0.2dB
Return loss	50dB	Vibration	0.2dB
Operating temperature	-40~75C	Storage temperature	-45~85C

Key Features and Applications

Low insertion loss, Low back reflection lossFlexible and easy to strip fibre bufferingIdentifiable fibre buffer colours under all lighting conditionsReduces installation timeAvoids incorrect patching by possible fiber flipping

CATV, metro test equipementTelecomunication networksLocal area networks(LAN)Wide area networks(WAN)Premise installations

Fiber Optic Pigtail for Fusion Splicing

Fiber pigtail cables provide a fast way to make factory terminations in the field.

OEM Service

Fiber-MART.COM supports customized service, such as fiber type, fiber connector, jacket material, pigtail length for simplex packes fiber optic pigtail. Please feel free to contact [email protected].

Packaging & Labeling

Fibermart Fiber Patch Cable Datasheet

Datasheet to Download
