High Density FHD Series Fiber Optic Enclosure Unloaded
Fiber Enclosures For 10/40/100G Solution in Data CenterMaking Your Data Center Connection Simpler, Eaiser and Cost-Efficient.
Learn More
Fiber-MART offers 2RU rack mount enclosure, which can house 8 pcs FHD series MTP modular cassettes or fiber adapter panels. It provides high density flexible system for managing fiber terminations, connections, and patching in datacenter application to maximizing rack space utilization and minimizing floor space.
|
Part Number |
FHD-2UFCE |
Fiber Count |
Max.192 Fibers |
|
Enclosure Type |
Rack Mountable |
Material |
SPCC (Black Coating) |
|
Installation |
Standard EIA 19' Rack Rails |
Dimensions (HxWxD) |
3.46"x17.60"x16.98" (88x446x431.2mm) |
|
Compliant |
TIA/EIA-568-C.3 |
Advantage |
High Density Patching System |
Product Highlights

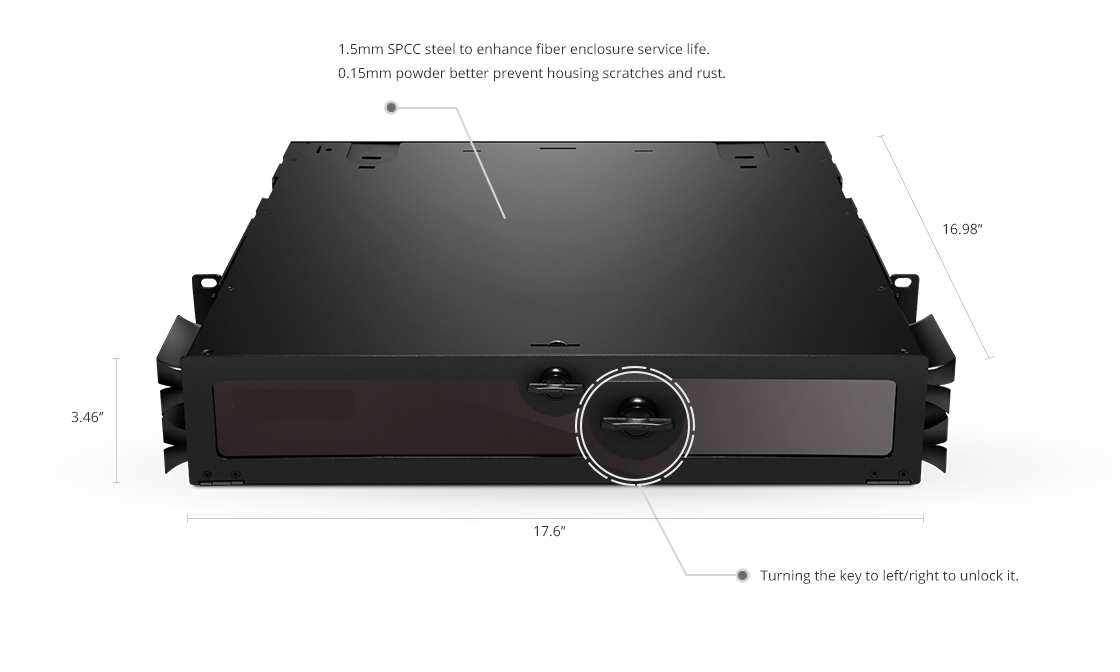

Black Powder Coated SPCC Rugged Heavy-Duty Steel Housing
Front Access, Removable Bi-Directional Doors w/A Push-Type Drawer
Designed for 8 pcs FHD Series FAPs/Cassettes Holder
Installation of FHD Fiber Enclosure
-
-
-
Fiber Enclosure for Patch Cord Connections
-
-
-
Fiber Enclosure for Storage of Spliced Fiber Pigtails
-
-
-
Fiber Enclosure for High-Density MTP Cabling Management
Accessories Included in Fiber Enclosure
Each enclosure is shipped with an accessory pack that includes mounting screws, slack spools, bend radius control clips for proper installation and cable ties for cable management.
Accessories Optional for FHD Series Enclosure
Multi-Style Mounting and High-Density Installed in 10G/40G/100G Storage, Telecom and Data Center Housing
-
-
-
FHD-FOSM 24F Splice Tray Optional
-
-
-
FHD Series 24F MTP HD Cassette Optional
-
-
-
FHD Series 24F Adapter Panel Optional
|
Image |
Part Number |
ID# |
Description |
Price |
|
|
FHD MTP Cassettes |
 |
FHD-1U-2MTP12LCDOM4L |
57342 |
MTP-12 to LC UPC Duplex 24 Fibers MPO/MTP Cassette, OM4, Polarity A |
US$ 99.00 |
Add to Cart |
|
|
FHD-1U-1MTP12LCDOM4L |
57024 |
MTP-24 to LC UPC Duplex 24 Fibers MPO/MTP Cassette, OM4, Polarity A |
US$ 120.00 |
Add to Cart |
 |
FHD-1U-1MTP6LCDOM4LA |
57017 |
MTP-12 to LC UPC Duplex 12 Fibers MPO/MTP Cassette, OM4, Polarity A |
US$ 55.00 |
Add to Cart |
 |
FHD-1U-2MTP12LCDSMFL |
57341 |
MTP-12 to LC UPC Duplex 24 Fibers MPO/MTP Cassette, Single Mode, Polarity A |
US$ 110.00 |
Add to Cart |
|
|
FHD-1U-1MTP12LCDSMFL |
57023 |
MTP-24 to LC UPC Duplex 24 Fibers MPO/MTP Cassette, Single Mode, Polarity A |
US$ 150.00 |
Add to Cart |
 |
FHD-1U-1MTP6LCDSMFLA |
57016 |
MTP-12 to LC UPC Duplex 12 Fibers MPO/MTP Cassette, Single Mode, Polarity A |
US$ 63.00 |
Add to Cart |
|
FHD Adapter Panels |
 |
FHD-FAP12LCDXSMF |
35488 |
Fiber Adapter Panel with 12 LC Duplex OS2 Singlemode Adapters (Blue), Zirconia Ceramic |
US$ 11.00 |
Add to Cart |
 |
FHD-FAP12LCDX10GMM |
41998 |
Fiber Adapter Panel with 12 LC Duplex OM3/OM4 Multimode Adapters(Aqua), Zirconia Ceramic |
US$ 12.00 |
Add to Cart |
 |
FHD-FAP6SCDXSMF |
35484 |
Fiber Adapter Panel with 6 SC Duplex OS2 Singlemode Adapters (Blue), Zirconia Ceramic |
US$ 8.00 |
Add to Cart |
 |
FHD-FAP6SCDZ10GMM |
51284 |
Fiber Adapter Panel with 6 SC Duplex OM3/OM4 Multimode Adapters (Aqua), Zirconia Ceramic |
US$ 9.00 |
Add to Cart |
 |
FHD-FAP8MTPHA |
35508 |
Fiber Adapter Panel with 8 MTP(12/24F) Key-up/Key-down Adapters (Black), Horizontal |
US$ 74.00 |
Add to Cart |
 |
FHD-FAP12MTPHA |
35510 |
Fiber Adapter Panel with 12 MTP(12/24F) Key-up/Key-down Adapters (Black), Horizontal |
US$ 110.00 |
Add to Cart |
|
Cable Management and Splicing Accessories |
 |
FHD-FOSMF-24F |
64246 |
24 Fiber Optical Splice Tray for FHD Fiber Enclosure |
US$ 15.00 |
Add to Cart |
|
|
FHD-FOSMF-12F |
64247 |
12 Fiber Optical Splice Tray for FHD Fiber Enclosure |
US$ 14.00 |
Add to Cart |
 |
FHD-FMS |
64569 |
2 Packs Fiber Slack Management Spool for FHD Fiber Enclosure |
US$ 3.00 |
Add to Cart |
 |
FHD-FEBRC |
64570 |
2 Packs Bend Control Clip for FHD Rack Mount Fiber Enclosure |
US$ 1.80 |
Add to Cart |
