FM SKU#:SKU00616E2
Model#:DZC-B1.1CR
MFG PART#:

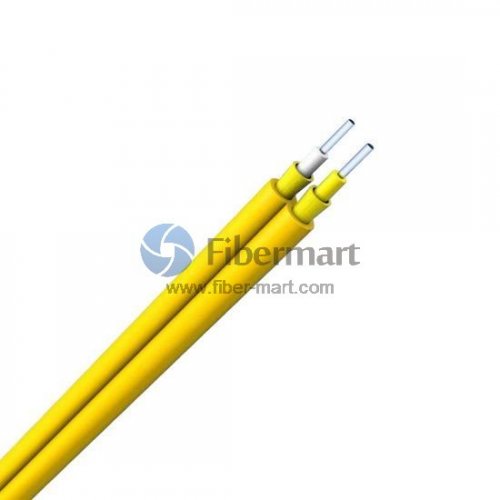

The duplex zipcord tight buffer cable is easily split into two single core cable, suitable for patch cord making. And this a kind of indoor cable, could be used in the interconnection of fiber optic equipment.
This duplex cable consist of two child single core fiber. Each single fiber is coated with 250µm soft plastic, and then covered with a 900µm tight buffer thick layer of hard plastic, which add some fiber protection. The Kevlar yarn material ensure a good performance of tensile strenghth. And the Flame retardant outer jacket could be used in Riser enviroment. The cable diameter of each child single-fiber is 1.6mm, 2.0mm, 3.0mm optional.
Item Details
Fiber Count: 2 Fibers Fiber Type: Single-mode Corning Fiber Out Jacket: Riser Cable DIA.: 1.6mm, 2.0mm, 3.0mm Optional Fiber Color: YellowCable Structure
|
Features
Soft, flexible and easy to do stripping, splicing and cabling Easily split into two single core cable Good mechanical and environmental characteristics The mechanical and physical characteristics of the outer jacket meet the requirement of relevant standards Kevlar yarn material ensure a good performance of tensile strength 900µm tight buffer protect the fiber well
| | Application
Used in patch cords and pigtails Interconnection of fiber optic equipment
|
Package
 |  |
| Package 1 | Package 2 |
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths. |
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Tight buffer Diameter | Out Sheath
Diameter | Weight | Minimum Allowable Tensile Strength
(N) | Minimum Allowable Crush Load
（N/100mm) | Minimum Bending Radius
(MM) | Storage
Temperature |
| （MM) | （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） |
| 0.6 | 1.6x3.4 | 6 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 0.6 | 1.8x3.8 | 7 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 0.9 | 2.0x4.2 | 9 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 0.9 | 2.4x5.0 | 11 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 0.9 | 2.8x5.8 | 13 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 0.9 | 3.0x6.2 | 15 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| G.652 | 50/125µm | 62.5/125µm |
Attenuation
(+20°C) (dB/km) | @850nm | | ≤3.0 | ≤3.0 |
| @1300nm | | ≤1.0 | ≤1.0 |
| @1310nm | ≤0.36 | | |
| @1550nm | ≤0.22 | | |
| Bandwidth (Class A) (MHz·km) | @850nm | | ≥600 | ≥200 |
| @1300nm | | ≥1200 | ≥600 |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc (nm) | ≤1260 | | |
