FC/APC-FC/APC Duplex Single-mode (9/125) Tracer fiber patch cord

FM SKU#:SKU00253T
Model#:SM-FCA-FCA-TDX-FM
MFG PART#:

FC/APC-FC/APC Duplex Single-mode (9/125) Tracer fiber patch cord

Tracer fiber patch cord offers quick and accurate method of identifying the termination point of optical patch cords. Each end of Tracer fiber patch cord features a flashing light allowing technicians to visually trace individual patch cords from one end to another without pulling or affecting the patch cord. We can provide special power sources which is easily attached to the Tracer fiber patch cord . This causes the LED on each end to begin flashing 30s and stay in lit.

Fiber Patch Cord Tracer must be working with the power driving to identify the exactly cable.

Characteristics

• Main function: tracking fiber patch cords
• Fiber Type:Single-mode (9/125)
• Connector Type:FC/APC-FC/APC
• Easy and Quick identification
• Not effect patch cord function
• No need to pre-labeling
• Low insertion loss
• High return loss
• LED light blinks every 2 seconds, and persists after 30 seconds
• Simultaneous visual and acoustic trace
• Economical and User-friendly
• Good repeatability,changeability and temperature stabilization

Applications

• WANs, LANs, CATV
• Telecommunications
• Optical Networks
• Testing /Measurement Instruments
• Fiber to the Home

Specifications

• IL: 0.25dB
• Max Crush Strength: 300N(ψ3.0)
• Conducting Distance: 300 M/3V
• Temperature: -30ºC~80ºC
• RL: ≥50dB
• Insertion times: 500
• Repeatability: ≤0.1dB

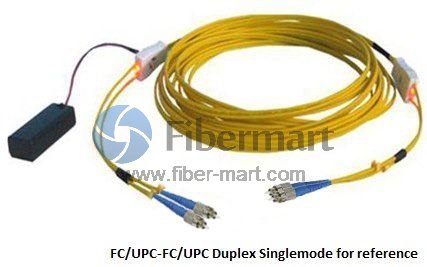

Sample Picture

Fiber-Mart is an professional manufacturer & supplier of Fiber Patch Cord Tracer, it could be customized in any length. If you have any question about it,please feel free contact us at [email protected]
