Industrial RS-232 a convertidor de fibra a dos caras multimodo, 1310nm 2km

FM SKU#:SKU00003H
Model#:FM-RS232-MD-2
MFG PART#:

Serial to Fiber Converters, also called Fiber optic modem, is a device used in optical network communications for sending and receiving data which provides simultaneous and reliable transmission of RS-232 (RS-485 or RS-422) serial interfaces over fiber optical cables over the distances up to 20 km.

Fiber-Mart Industrial RS-232 to Multi-mode Duplex Fiber Converter,1310nm 2km is an industrial grade bi-directional externally powered converter which converts a standard full-duplex RS-232 serial signal to a Multi-mode SC or ST or FC connector type fiber optic link. A data direction auto-turnaround feature automatically enables the RS-232 transmit and receive data signals when data is present, avoiding the need for software drivers, and making the device fully plug-and-play.
This serial to fiber Converter can be connected with RS-232 port of computer or other devices, solve the problem of traditional RS-232 communication conflict between distance and rate.

To use picture of RS485 Modem application for reference.

Key Features

• Transmission distance: Multi-mode 2km
• Working wavelength: duplex 1310nm
• Fiber connector: SC/ST/FC (for option)
• Meet EIA/RS-232 transmission standards at data rates up to 120kb/s.
• Asynchronous point to point rate up to 120kb/s ( RS-232)
• Plug-and-Play (hot-pluggable)
• 600W surge protection, 15KV static protection
• Support 220 VAC input, consumption 2W
• RoHS, CE, and FCC certified

Item Information

• Manufacturer: Fiber-Mart Co., Ltd
• Type: RS-232 to Fiber Converter
• Enclosure: External Power supply
• Package: paper box
• Order includes:
  1 X USER MANUAL
  2 X Power Supplies, +12 Volt, 1.5 Amp, Stripped and Tinned Leads
  1 x RS-232 interfaces fiber modem transmitter and 1 x RS-232 interfaces fiber modem receiver

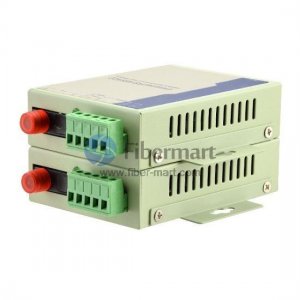

Sample Picture



Ordering Information

Specifications:
