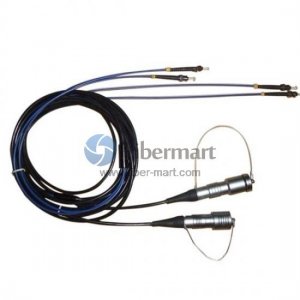

Push-Pull Waterproof Plug to Plug Cable Connector 4 Fiber

FM SKU#:SKU01363R
Model#:PPWP-PPWP-4F-FM
MFG PART#:

Self-Latching Push Pull Waterproof Connector

The self-latching system is renowned worldwide for its easy and quick mating and features. It provides absolute security against vibration,shock or pull on the cable, and facilitates operation in a very limited space, Connection loss is small, high reliability, rugged, waterproof, dustproof and resistant to harsh environments, etc. , can provide a core, 2 fibres, 4 fibres, 2 fibres 2 power, 2 fibres 4 power and a variety of multi-core electrical connectors and other models can also be designed and manufactured according to customer needs, can be used for outdoor harsh environments.

Features

• Using self-locking plug connection technology for fast connections.
• Three keys to position the multi-core fiber design to ensure the correctness and a blind plug connection.
• All-dielectric high-strength copper alloy case, high strength, but also the production of materials based on customer requirements
• Connector plug and socket comes with dust cover, ensure the quality of the connection.
• Has a corrosion-resistant, waterproof, dustproof, etc.
• Cable Length: 1M
• Fiber Numer: 4 fiber
• Connector: Self-latching push pull waterproof plug connector to Self-latching push pull waterproof plug connector

Applications

• Emergency repair quick connect system
• Radio and television industry, high-definition camera system
• Military exercise communications devices
• Mine communication system to connect
• Railway emergency communication system to connect
• Power industry emergency communication system
• Connect the mine communication system

Kind Note:

As plug should work with socket, this product should be ordered together with Push-Pull Waterproof Socket to Socket Cable Connnector 4Fiber, thus not be order individually
