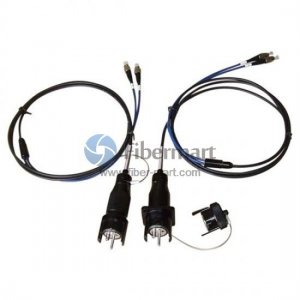

Wall-Mounted Military Field Optic Cable Connector 2 Fibers

SKU: #12872

(0 Comentarios)

P/N: WM-MF-MF-2F-FM

Desde: US$368.75

Por favor, elija:

Longitud:

Tirando de malla

Detalles personalizados:

Order Today, Ship before 06/15/2026, from U.S. or Hong Kong

Detalles
Ficha datos
Tags
FAQ

Model#:WM-MF-MF-2F-FM
MFG PART#:

Military Field Optic Cable Connector

Features

Moulded plastic compound body, for long use
Cross the panel with seal design, simultaneous connector 2 to 6 fibers
Neutral mechanism, connector and receptacle random linking
Ceramic ferrule and sleeve: PC,UPC polishing
Cable length: 1M
Fiber number: 2 fiber
Connector: wall-mount military field cptic cable connector to wall-mount military field cptic cable connector

Applications

Optical fiber military communication networks
Military computer networks
Vehicle-borne, air-borne or carrier-borne equipments

Specifications

Item	Parameter
Fiber type	Singlemode			Multimode
	2 fibers	4 fibers	6 fibers	2 fibers	4 fibers	6 fibers
Insert loss	≤0.6	≤0.8	≤1	≤0.6	≤0.8	≤1
Repeatability	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2
Vibration	10Hz～500Hz,98m/s2
Shock	490m/s2
Durability(per time)	1000cycles
Working temperature	-40℃ up to +85℃
Temperature cycle	-40℃ up to +85℃, three cycles
Fibers	2 fibers		4 fibers		6 fibers
Cable Crush Resist	1200N(long-term) 1400N(long-term)		600N(long-term) 800N(short-term)
Cable Outer Diameter	5.0mm		6.5mm		6.5mm

Fibermart OS2 Singlemode Military-Grade Tactical TPU Fiber Patch Cable Datasheet

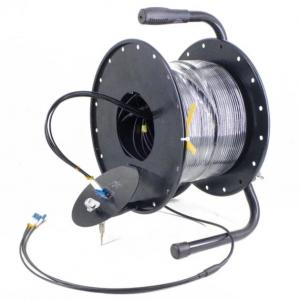

Field Deployable Fiber Cable Reel Datasheet 2026

Datasheet to Download
