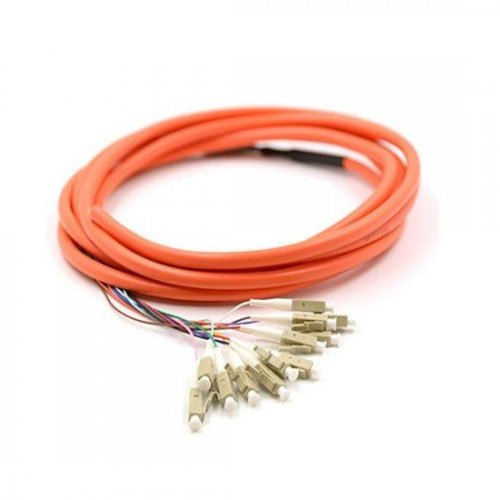

24 Fibers LC/SC/FC/ST/E2000 OM1/OM2 Multimode Bunch Fiber Optic Pigtail

제품 항목: #13703

(0 사용자 리뷰)

P/N: FM12SM-STU-BP-XX-X

시작 시간: US$23.00

선택해주세요:

길이:

케이블 직경:

커넥터:

맞춤형 세부정보:

Order Today, Ship before 06/12/2026, from U.S. or Hong Kong

설명
데이터 시트
태그
FAQ

24 Fibers LC/SC/FC/ST/E2000 OM1/OM2 Multimode Bunch Fiber Optic Pigtail

Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The bunch fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.

Connector A	LC/SC/FC/ST/E2000	Connector B	Unterminated
Fiber Category	OM1/OM2	Jacket Color	Orange
Fiber Count	24	Polish	UPC
Wavelength	850nm	Durability	>1000 Times
Insertion loss	0.3dB	Interchangeability	0.2dB
Return loss	50dB	Vibration	0.2dB
Operating temperature	-40~75C	Storage temperature	-45~85C

Key Features and Applications

Low insertion loss, Low back reflection loss Flexible and easy to strip fibre buffering Identifiable fibre buffer colours under all lighting conditions Reduces installation time Avoids incorrect patching by possible fiber flipping

Data Centres, premise installations Telecomunication networks Local area networks(LAN) Wide area networks(WAN) Indoor Applications

Fiber Optic Pigtail for Fusion Splicing

Fiber pigtail cables provide a fast way to make factory terminations in the field.

OEM Service

Fiber-MART.COM supports customized service, such as fiber type, fiber connector, jacket material, pigtail length for 12 packes fiber optic pigtail. Please feel free to contact [email protected].

Packaging & Labeling

This easy to take and well-protected fiber optical pigtail bag package, blister package or roll package have been labelled and marked by Fiber-MART.COM as default.

Datasheet to Download

Add your Tags

배송 시간

: FedEx IP: 영업일 기준 1-4일 이내; FedEx IE: 영업일 기준 4-6일 이내; DHL: 영업일 기준 2-6일 이내; EMS: 영업일 기준 4-15일 이내; UPS: 영업일 기준 1~3일 이내; 홍콩 우편 항공 우편: 영업일 기준 10-30일 이내
