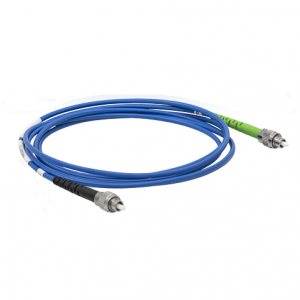

AR-Coated Multimode Fiber Patch Cable 400 - 700nm SMA905 Connector 2M

AR-Coated Multimode Patch Cables for 400 - 700 nm (SMA905 Connectors)

Item #	Fiber Type	Core	Cladding	Operating Wavelength Range^a	Fiber Attenuation^b (Click for Graph)	NA	AR Coating	AR Plot	Length	Bend Radius
Item #	Fiber Type	Core	Cladding	Operating Wavelength Range^a	Fiber Attenuation^b (Click for Graph)	NA	AR Coating	AR Plot	Length	Short Term^c	Long Term
50L02S-A	FG050LGA	Ø50 µm ± 2%	Ø125 ±1 µm	400 - 700 nm		0.22	R_avg < 0.75% from 350 - 700 nm		2 +0.075/-0.0 m	23 mm	30 mm
105L02S-A	FG105LCA	Ø105 µm ± 2%	Ø125 ±1 µm	400 - 700 nm						23 mm	30 mm
200L02S-A	FG200LCC	Ø200 ± 8 µm	Ø240 ± 5 µm	400 - 700 nm						23 mm	24 mm

The operating wavelength range of the patch cable is determined by the wavelength range of both the bare fiber and AR coating.
The AR coating is designed for 350 - 700 nm, but the fiber attenuation is higher in the UV and limits the operating wavelength range of the patch cable.
Limited by the minimum bend radius of the outer FT05SS tubing.

Datasheet to Download
