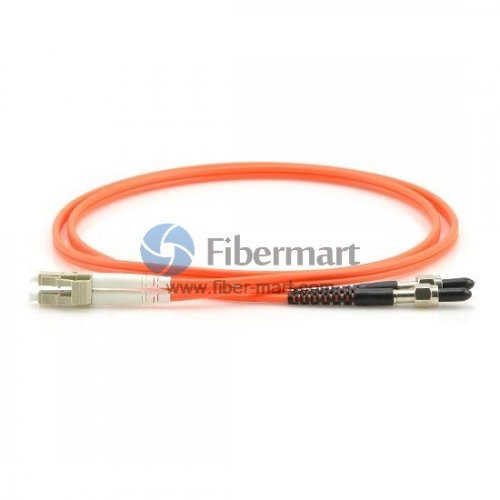

SMA905-LC 이중 OM1 파이버 패치 케이블

The numerical aperture of the Quartz fiber：

0.22-0.37

Fiber Diameter(mm)

0.2

0.3

0.4

0.5

0.6

0.65

0.8

Minimum Bending Radius

10D (D：optical fiber core diameter)

Fiber Cor(coating layer):

1：1.05 or 1：1.4

Numerical Aperture

0.21-0.37

Transmission(%/m0)

Transmission(0.20-0.4um)

85-98

Visible Light(0.4-0.7um)

97-99

Near-Infrared(0.76-1.6um)

90-99

Heliun-Neon(0.6328um)

99

YAG(1.06um)

98

Argon(0.5145um)

98

Transmission Power

>130w(fibre [email protected])

Connector Type

Inner Hole Size

Concentricity

Roundness

Core Material

Metal Ferrule Zirconia Ferrule

0.127~1.200mm

≤3.0μm

≤2.0μm

stainless steel cupronickel

Connector Type

Tailstock of Connector

Bare

fiber clamp

Ferrule Inside Diameter

Concentricity

RoundnEss

Core Material

length

Metal Ferrule

With groove

Standard

(Default)

With

127-2000 um

≤5um

≤2um

stainless steel

1m,

2m...

custom

Without groove

(Default)

Zirconia Ferrule

Lengthen

(custom)

Without (Default)

cupronickel
