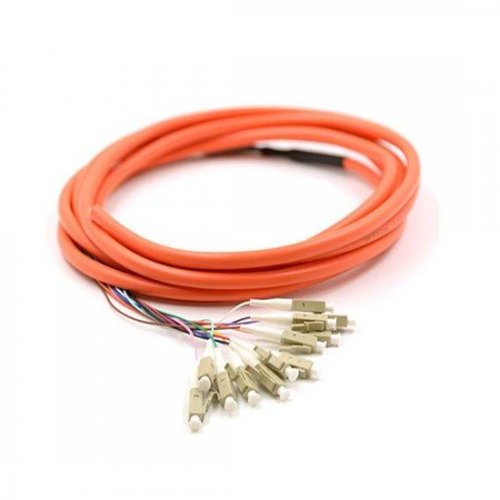

6 Fibers LC/SC/FC/ST/E2000 OM1/OM2 Multimode Bunch Fiber Optic Pigtail

Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The bunch fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.


Connector A LC/SC/FC/ST/E2000 Connector B Unterminated
Fiber Category OM1/OM2 Jacket Color Orange
Fiber Count 6 Polish UPC
Wavelength 850nm Durability >1000 Times
Insertion loss 0.3dB Interchangeability 0.2dB
Return loss 50dB Vibration 0.2dB
Operating temperature -40~75C Storage temperature -45~85C











Key Features and Applications




Low insertion loss, Low back reflection loss Flexible and easy to strip fibre buffering Identifiable fibre buffer colours under all lighting conditions Reduces installation time Avoids incorrect patching by possible fiber flipping

Data Centres, premise installations Telecomunication networks Local area networks(LAN) Wide area networks(WAN) Indoor Applications





Fiber Optic Pigtail for Fusion Splicing

Fiber pigtail cables provide a fast way to make factory terminations in the field.











OEM Service

Fiber-MART.COM supports customized service, such as fiber type, fiber connector, jacket material, pigtail length for 12 packes fiber optic pigtail. Please feel free to contact [email protected].











Packaging & Labeling

This easy to take and well-protected fiber optical pigtail bag package, blister package or roll package have been labelled and marked by Fiber-MART.COM as default.
