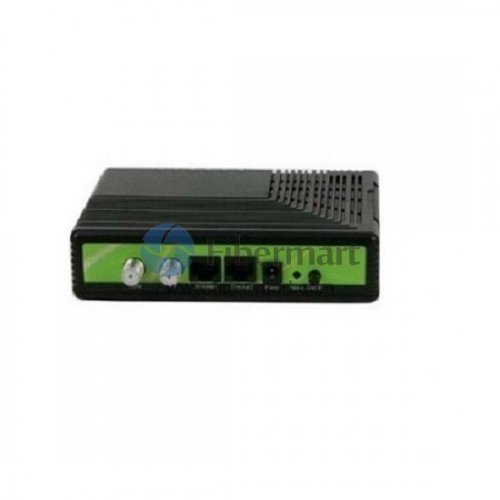

Indoor CATV EOC slave with 2 RJ45 ports

Press Esc key to close this popup
  • Indoor CATV EOC slave with 2 RJ45 ports

Indoor CATV EOC slave with 2 RJ45 ports

Item de produto: #9624
P/N: sku9624
US$52.43



Order Today, Ship before 04/03/2024, from U.S. or HK
  • Descrição
  • Ficha dados
  • Tags
FM SKU#:SKU01606H
Model#:FM302
MFG PART#:FM302

Indoor CATV EOC slave with 2 RJ45 ports

FM302 supplies one RF hybrid signal input port, one RF CATV output port and two 100M full-duplex RJ45 output Ethernet ports to FMve access to both TV and computer. FM302 supports bandwidth set, and supports to limit he max uplink and downlink bandwidth.

Features

Good anti-jamming capability with OFDM (kind of MCM, Multi-Carrier Modulation) and cFMnnel-adaptive technology.
  • Highly adaptable to network, amplifier and distributor
  • Highly effective filter, lower interference to CATV
  • Supply VLAN, IGMP and QoS
  • Support SNMP, WEB and CLI management
  • Support remote software upgrade
  • Managed intensively by central EOC, support TELNET management
  • No need to configure, start work once connected

  • Specification

    System ParameterTechnical Index
    System BandwidthPhysical layer data rate 200Mbps
    IP data throughput 100Mbps per channel
    ModulationOFDM;BSPK, QPSK, 1024/256/64/16/8-QAM
    MAC ProtocolTDMA and CSMA
    EOC technologyHomePlug AV
    Carrying Capability253 per channel, total 1012 slaves
    Protocol and StandardIEEE 802.1Q
    IGMP v1, v2
    IEEE 802.1P QoS
    NMSWEB; CLI; SNMP
    Data InterfaceTwo 10/100Base-TX RJ45 input port
    Auto MDI/MDIX
    Comply with 802.3, IEEE802.3u
    TV InterfaceOne RF port
    Metric thread F type
    Output level: 108dBμV
    Insertion Loss: <1.5dB
    Impedance: 75Ω
    Hybrid InterfaceOne RF hybrid signal output ports
    Metric thread F type
    Frequency: 2-870MHz
    Output Level: 108dBμV
    Impedance: 75Ω
    Light IndicatorDATA (Cable connection LED)
    ETH1, ETH2 (Ethernet port LED)
    SYS (System LED)
    PW (power LED)
