Optical Fiber Link Wavelength Converter

4 Ports 10G XFP FM-P-OTP800-OEO(10G) Service Card for Fiber Link Wavelength Conversion

FM-P-OTP800-OEO(10G) is an optical fiber link wavelength converter (fiber amplifier). It regenerates optical signals in the principle of optical-electrical-optical to realize the amplification and wavelength conversion of optical signals. Wavelength division multiplexing can be realized by using C/DWDM multiplexer/de-multiplexer, which especially applies to optical transport systems such as 125M/155M/622M/1G/2G5/s SDH/SONET, Ethernet etc. It provides rapid and cost-efficient solutions to regeneration of optical signals as well as transmission of rare fiber resources.

Key Features

• It supports a maximum port rate of 10Gb/s
• The wavelength of the transmitter is at C-Band，which supports DWDM wavelengths in compliance with ITU-T standards
• It can be operated and controlled independently
• It supports automatic loopback test
• It supports CDR function, which can optimize output
• It supports 3R function. For neighboring ports, the way for data transmission can be set

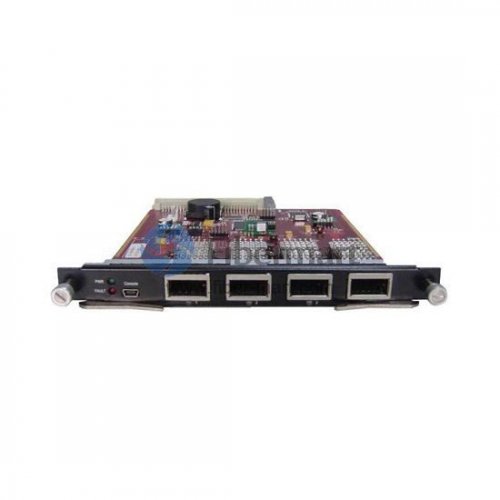

Front Panel Appearance

Valid Slots

The FM-P-OPT800-OEO(10G) board occupies one slot.
Valid Slots in the Sub-racks
a. In the FM-P-OTP800-2S rack mount, there is no slot designed for SC control board.
b. In the FM-P-OTP800-4S rack mount, the valid slot of the board is SLOT1 only.
c. In the FM-P-OTP800-11S rack mount, the valid slot of the board is SLOT1 only.

Application

• 1. The FM-P-OTP800-OEO(10G) card can be used to convert the signals into DWDM standard wavelength compliant with ITU-T G.694.1. The conversion in the reverse direction can be achieved. The optical ports on the WDM side provide the dual fed and selective receiving function.

• 2.The FM-P-OTP800-OEO(10G) can be used in two different application scenarios: transparent transmission of two channels of optical signals at any rate, and regeneration of four channels of OTU optical signals.

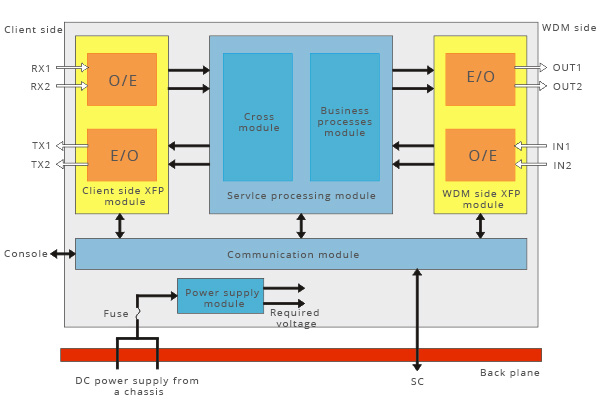

a. Flow of Transparent Transmission of Two Channels of Signals at Any Rate

b. Flow of Regeneration of Four Channels of OTU Signals



For the signal flow of the FM-P-OTP800-OEO(10G), the transmitting and the receiving directions are defined. The transmitting direction is defined as the direction from the client side to the WDM side, and the receiving direction is defined as the reverse direction.
