S2800-24T4F Fanless 24-Port 100/1000BASE-T Gigabit Managed Switch with 4 Combo SFP Slots

24x 100/1000Base-T with 4x 1GB Combo Network Switch S2800-24T4F

S2800-24T4F high performance Metro Ethernet switch is designed to meet the demand of cost-effective Gigabit access or aggregation for enterprise networks and operators. It adopts high performance processor to provide full speed forwarding and line-dormant capacity to offer customs multitudinous service features.
S2800-24T4F supports multiple configuration modes to make it easy for network management and maintenance. It offers flexible port combination form to facilitate user operations so that you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch. The switch comes with a four-year limited warranty, including any quality problems during the free maintenance.

Product Details

Product Highlights

S2800-24T4F Gigabit Managed Switch Introduction

Layer 2 Full Wire Speed Gigabit Forwarding Capability

Up to 48Gbps backplane bandwidth Up to 42Mpps packet forwarding rate ACL / binding / attack protection and other functions do not affect performance

Rich Two-tier Business Capability

512 multicast groups, IGMP SnoopingV1 / V2 / V3 8 priority queues, SP / WRR / SP + WRR Port-based QinQ IEEE 802.1Q VLAN tagging DHCP snooping and IP Source Guard

Function Optimization for WEB Configuration of Internet Bar

Automatic and Manual IP+VLAN+MAC+Port binding Smart port, set up server / application business optimization port Diskless optimization, network splitter configuration and boot optimization Game acceleration, built-in common games and customizable acceleration of game port

Perfect Management and Maintenance

Web management interface optimized for enterprise users Support SNMP, Telnet, cluster Looback port loopback detection, LLDP neighbor detection Real-time statistics of occupancy / traffic based on Telnet port

Supported Optical Transceivers

1G SFP 1G BIDI SFP 1G CWDM SFP 1G DWDM SFP 1G BASE-T

High Performance Switch for Enterprise Networks

Build and expand network with flexible port combination form.

Provide high bandwidth aggregation connectivity for multiple switches in network to enhance network capacity.

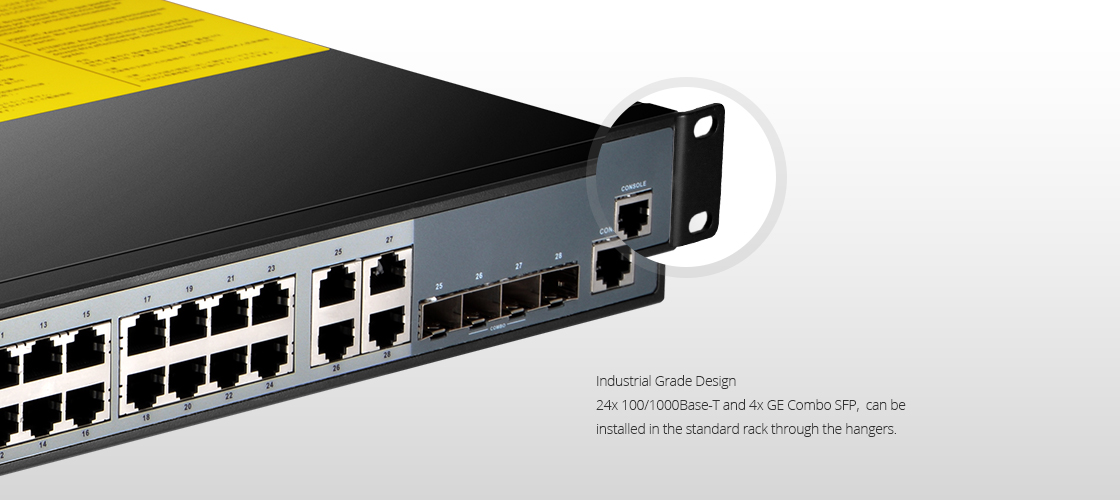

Front and Rear Panel Overview

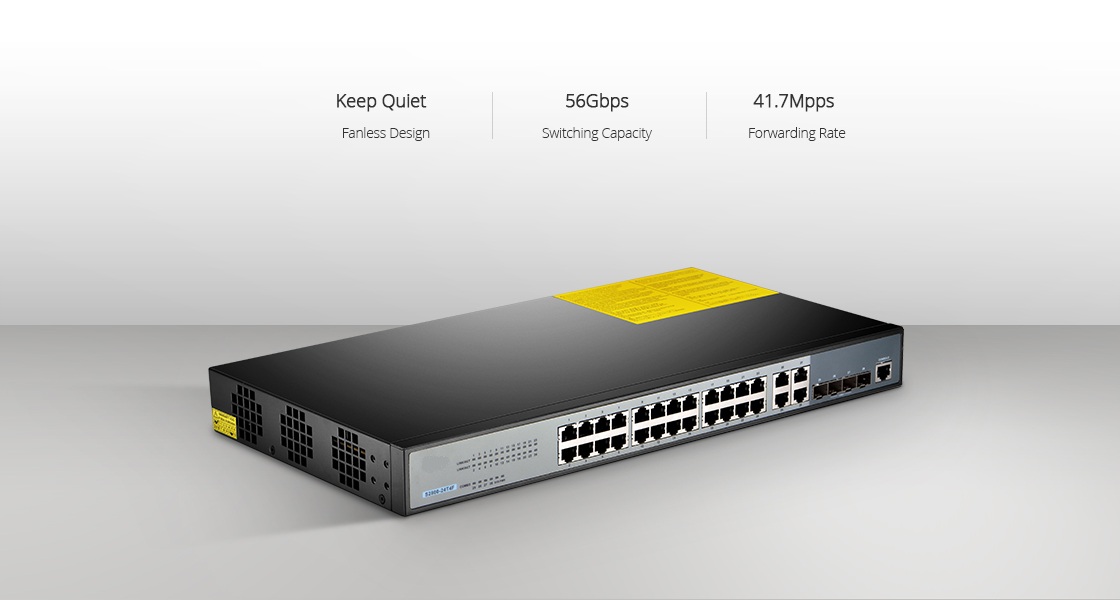

Ideal Combination of Affordability and Capabilities for SMBs

Fanless, energy-saving switch ensures quiet operation in the offices and higher reliability over time

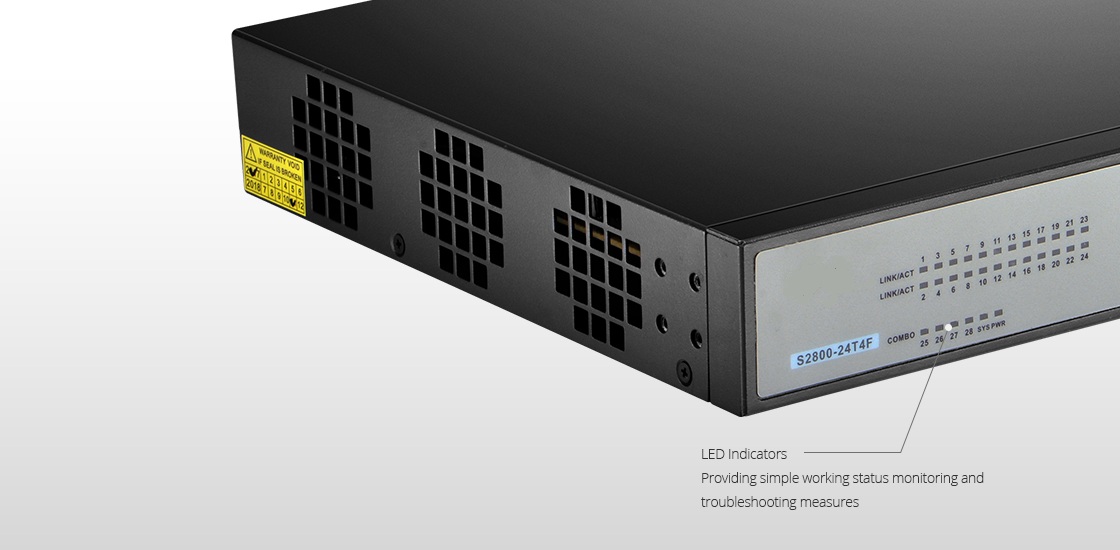

Port Indicators and System Status Indicators
