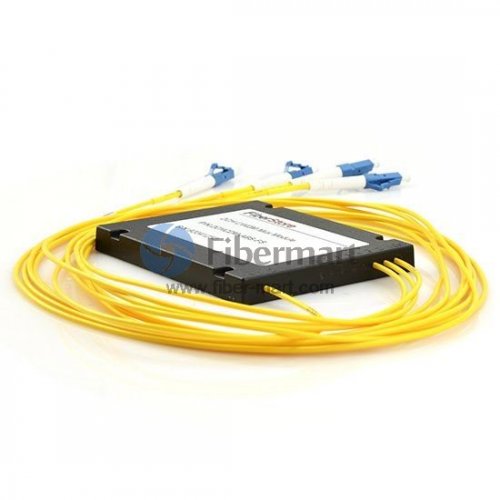

Módulo de 1 vía de ABS con canal simple DWDM OADM Este / Oeste

SKU: #56
P/N: 1S-ABS-FMDADM
US$69.00

Por favor, elija:



Special Port











( Order Today, Ship before 05/15/2021, from Hong Kong )
  • Detalles
  • Pedido de soporte
  • Otras observaciones
  • Etiquetas:

FM SKU#:SKU01585R
Model#:1S-ABS-FMDADM
MFG PART#:

Simplex DWDM OADM for East or West Traffic

The Simplex DWDM/AD modules add (multiplex) and drop (demultiplex) selected wavelengths over dual fiber Simplex DWDM MUX or DEMUX link for East-and-West Traffic.

Fiber-Mart DWDM OADM ( DWDM/AD) modules are Dense Wavelength Division Multiplexing (DWDM) Optical Add and Drop Multiplexers (OADM). "Add" and "drop" here refer to the capability of the device to add one or more new wavelength channels to an existing multi-wavelength WDM signal, and to drop (remove) one or more channels, passing those signals to another network path.

Using high performance filter technology, the DWDM/AD is a passive optical add/drop multiplexer designed to optically add/drop one or multiple DWDM channels into one or two fibers. It is an ideal solution for Metro-Core, Metro-Access and Enterprises, comprise a family of flexible, cost-effective solutions that expand the bandwidth capacity of existing fiber in point-to-point, ring, or bus configurations' applications.

Add/drop channels are interfaced to any of Fiber-Mart DWDM transceivers on the equipment side, and we also provide optional port configurations such as: Monitor Port, 1310nm passband port and Express port according to customer request. Available in 100GHz or 200GHz (0.8/1.6nm), 19" Rack Mount, LGX module or Pigtailed ABS box packaging.

Front Panel Details


a
Common port:
  • Trunk input and output in west and east traffic.
  • LC, SC, ST and FC connectors available.
b
Add/Drop port for specific wavelength:
  • Add and Drop on west or east.
  • LC, SC, ST and FC connectors available.
  • Compliant to ITU-T G.657A1 DWDM standard, 100GHz Grid.


NOTE:

  • Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same
  • We provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice, need more details, please contact at [email protected]
  • When using with 1310nm legacy SDH/SONET, CWDM wavelengths 1270, 1290, 1310, 1330 and 1350nm should not be used.
  • When using with 1550nm legacy SDN/SONET, CWDM wavelengths 1510, 1530, 1550, 1570 and 1590nm should not be used.

Item Details

  • 1 channel DWDM OADM
  • 1 x Input Port + 1 x Output port: Simplex connector
  • All Add/Drop Channels for West or East traffic: Simplex Connector; 100GHz Grid (0.8 nm). Note: 200 GHz Grid (16nm) are also available on request.
  • 1 x ABS Pigtailed box housing
  • OADM complement to the express DWDM product line
  • Compliant to ITU-T G.657A1 DWDM standard
  • Protocol and rate transparent for applications up to 10Gbp
  • Metro distance, up to 80 km
  • Entirely passive device, no power supply needed
  • It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
  • Front panel is equipped with adapters according to customer choice (see options)
  • ISO 9001 manufacturing facility

Mechanical Details for Housing




Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.






Si cualquier opción que no se indique en su pedido, por favor escriba su opción o solicitud en su orden a la fibra Mart, y el contacto con nosotros.
