MFG PART#:

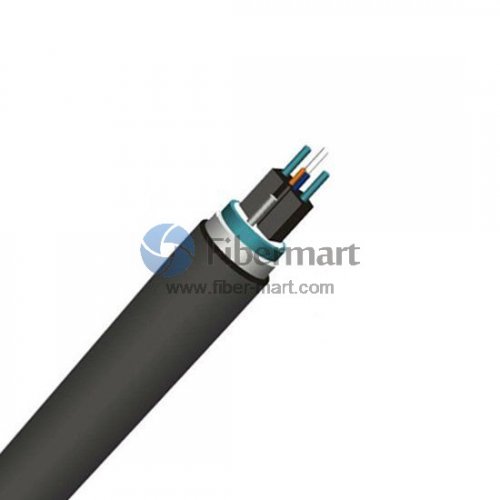

Single-armored FTTH Duct Cable - GJFDC
It is specially design for connecting user's equipment with outdoor feeder cable, particularly suitable for duct installation. The optical fiber unit is positioned in the center. Two parallel strength members are placed at two sides. The cable is with a jacket to become FTTH Drop Cable. Then FTTH Drop Cable is completed with waterproof tape, AL-plastic tape and outer jacket.
The two parallel FRP/metal/K-FRP strength member improves the tensile strength. The cable is completed with PE sheath protects cable from ultraviolet radiation/the LSZH (LSZH, Low smoke, Zero halogen) material jacket, which has good flame retardant performance. Water blocking tape & AL-plastic tape has good water proof ability.
Cable Structure
 |
Features
Environmental protection- Low smoke, zero halogen and flame retardant sheath/PE sheath protects cable from ultraviolet radiation. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property. Used in aerial and duct access cabling. Soft and flexible, good bending performance.Two strength members ensure good performance of crush resistance, tensile strength to protect the fiber.AL-plastic tape makes the cable crush resistant and moisture proof. The purpose of a water-proof tape is to help prevent the ingression of water into the cable.
| | Application
Used in aerial and duct access cabling Installation in small bending environment Suitable for the connection between indoor and outdoor
|
Package
 |  |
| Package 1 | Package 2 |
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths. |
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count | Outside
Diameter | Cable Weight | Tensile Load
(N) | Crush Load
（N/100mm) | Bend Radius
(MM) | Storage
Temperature |
| (mm) | (kg/km) | short term | long term | short term | long term | short term | long term | （℃） |
| 1 | 7 | 52 | 60 | 30 | 1000 | 300 | 30 | 15 | -20°C~+60°C |
| 2 | 7 | 52 | 60 | 30 | 1000 | 300 | 30 | 15 | -20°C~+60°C |
| G.657A | 50/125µm | 62.5/125µm |
Attenuation
(+20°C) (dB/km) | @850nm | | ≤3.0 | ≤3.0 |
| @1300nm | | ≤1.0 | ≤1.0 |
| @1310nm | ≤0.36 | | |
| @1550nm | ≤0.22 | | |
| Bandwidth (Class A) (MHz·km) | @850nm | | ≥600 | ≥200 |
| @1300nm | | ≥1200 | ≥600 |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc (nm) | ≤1260 | | |
