12本ファイバー62.5 /125μmマルチモードシングルアーマーシングルジャケットストレートルーズチューブスチールワイヤー強度防水用屋外ケーブル - GYTA

FM SKU#:SKU00064E2
Model#:GYTA(S)-12A1b
MFG PART#:

GYTA fiber optic cable is used for duct or aerial applications.These aluminum tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.

It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant; Cable filling materials ensure high reliability; APL makes the cable crush resistant and moisture proof. So, the GYTA has a very good watertight performance.

Item Details

• Fiber Count : 12 Fibers


• Strength Member Materials: Steel Wire


• Fiber Type: 62.5/125μm Multimode


• Armor Layer: Aluminum tape


• Outer Sheath: PE (Default)

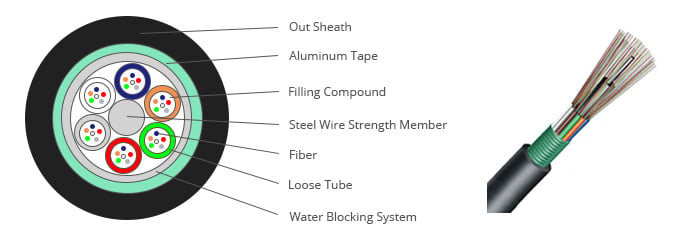

Cable Structure

Features Good mechanical and temperature performance. High strength loose tube that is hydrolysis resistant. Tube filling compound to ensure a critical fiber protection. Special design to prevent loose tube shrinking. Crush resistance, water blocking and flexibility. PE sheath protects cable from ultraviolet radiation. Use the steel wire as the central strength member, 100% cable core filling and APL moisture barrier can ensure the cable watertight.		Application Laying modes: Aerial & Conduit/Duct. Rural communication Local trunk line CATV Computer networks system

Package

Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart
