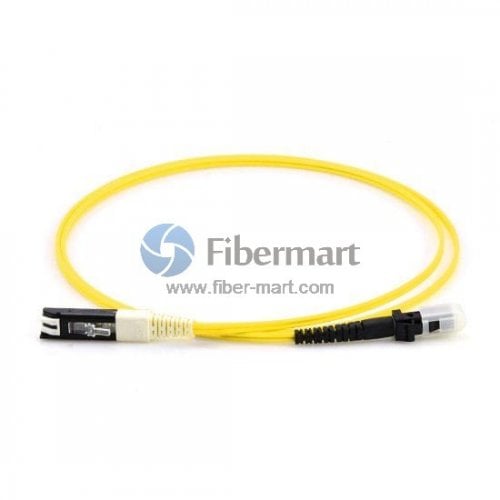

1M VF45-MTRJ 9/125umシンモードデュプレックスパッチケーブル

製品アイテム: #933

(0 カスタマーレビュー)

P/N: SM-VF-45-MTRJ-1M-FM

ベース価格: US$66.25

選択して下さい:

ケーブルジャケット

カスタマイズされた詳細:

Order Today, Ship before 06/09/2026, from U.S. or Hong Kong

説明
データシート
商品タグ
FAQ

FM SKU#:SKU00181T
Model#:SM-VF-45-MTRJ-1M-FM
MFG PART#:

1M VF45-MTRJ 9/125um Singemode Duplex Patch Cables

Volition VF-45 patch cables are manufactured using GGP(Glass/Glass/Polymer) fiber optic cables and industry standard ST, SC, FC, LC, MTRJ and VF-45 fiber optic connectors. GGP fiber cable assemblies are ideal for panel-to-panel cross-connects, equipment back planes, under desk and other applications that require reliability and mechanical strength. Volition VF-45 patch cables are ideal for applications requiring tight bends, durability and depend ability. They're great for exposed fiber optic cable situations, such as under-desk applications where their mechanical strength and tight bend radius makes them more resistant to kicks, pulls and bends.

This price on the website is for 1M length,please feel free to enquiry us for the other length standard

Characteristics

GGP Fiber
Proven 3MTM Technology
Allows Tighter Bend Radius (3/8 inch)
Easier to Route and Manage
Exceptional Strength and Durability
Withstands Abuse

Specifications

Item	Specifications
Attenuation:	< 0.75 dB max
Reflection:	> 20 dB max
Mating durability:	500 cycles, <0.75 dB max
Strength of coupling:	> 33 N, < 0.75 dB max
Plug cable retention:	Tensile load > 66 N, Side Pull > 6.6 N, < 0.75 dB max
Plug flex:	100 Cycles, ± 90 degrees, 0.5 kg, < 0.75 dB max
Plug twist:	10 Cycles, ± 2.5 revolutions, 15 N, < 0.75 dB max
Cold:	-10°C for 96 hours, < 0.3 dB increase
Heat:	+60°C for 14 days, < 0.3 dB increase
Thermal cycling:	-10°C to 60°C, 5 Cycles, < 0.3 dB increase
Vibration:	10 to 55 Hz, 30 min. each axis, < 0.3 dB increase
Connector Style:	Crimp, Polish
Connector Type:	VF45-SC

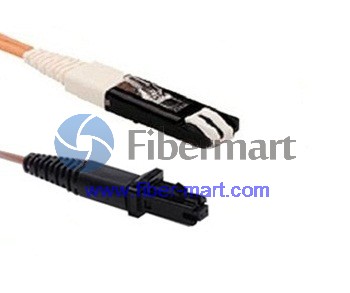

Sample Picture

Details

Order Information

Length in Meters: 1; 1.5; 2; 3; 5; 6; 8; 15; 30;Custom
Cable Jacket Type: R-Riser; L-LSZH;Custom
Fiber Type by Core Size: 50/125(MM); 62.5/125(MM); 9/125(SM);Custom
Second Connector End: V-VF-45 Plug;ST;SC;LC;Custom
First Connector End is Always Volition VF-45 Plug
