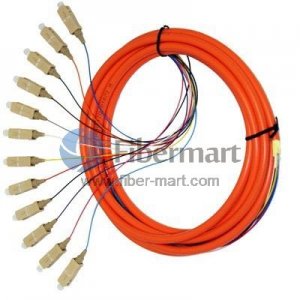

24-fiber 0.9mm OM2 Multimode LC/SC/ST/FC Bunch Pigtail

FM SKU#:SKU00043JR
Model#:OM2-24F-B-FM
MFG PART#:

24-fiber 0.9mm 50/125 OM2 Multimode LC/SC/ST/FC Bunch Pigtail

Fiber pigtail cables provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line.
Fiber-Mart.COM provide wide degree flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3 types, simplex fiber, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.


Warm Tips:The default fiber diameter for the cable is 0.9mm,if you'd like to customize other types as 2.0mm,3.0mm,please kindly enquiry us. The diameter refers to the thickness of the cable,the size is able to match the corresponding equipment port.

Key Features

• Low insertion loss and back reflection loss
• Good exchangeability
• Good Durability
• High temperature stability
• Compliant to IEC, TIA/EIA, NTT and JIS specifications

Specifications

These Multimode 24 fiber pigtails with 900 micron buffer are ready for splicing. Each fiber strand in the kit has a color-coded buffer for easy identification and the colors are industry standard. In this 24-pack, 24 strands of fiber are terminated on one end with LC or SC, ST, FC connectors. Connectors are ceramic with Ultra PC (UPC) finish. Each cable comes with test results and a lifetime guarantee.

Custom Information

Fiber-Mart offers custom-made pigtails with a wide variety of options:
a. “Unjacketed” fiber pigtails usually installed inside ODF unit.
b. Multi-Strand fiber pigtails without a jacket are ideal for fusion splicing.
c. Multi-Strand fiber pigtails with fan-out are designed for patch panels or cable ducts where space-saving is required.
d. 2, 4, 6, 8, 12, 24 and 48 Strand fiber counts available.
Note :All pigtails can be customized in any fiber type, length, connectors and fiber counts for your requirement.
