24ポート10 / 100M POEスイッチ

FM SKU#:SKU00037L1
Model#:FM-POE3624
MFG PART#:

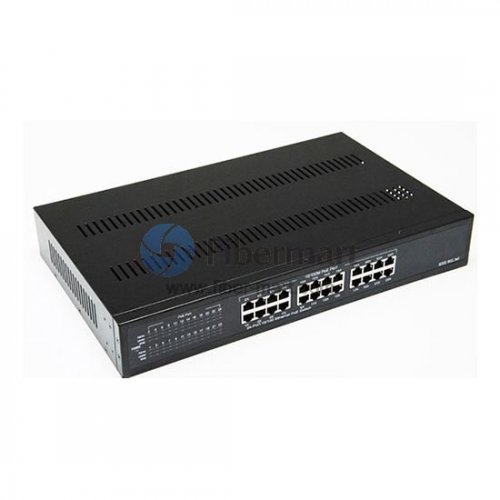

24-Port 10/100M POE Switch

Modern business networks are used for increasingly diverse applications – traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today’s converged network often need to be supported not just in terms of data –equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution.
The 24-Port 10/100M PoE Switch is an unmanaged 10/100Mbps Ethernet PoE switch designed to enhance workgroup performance while providing a high level of flexibility. It provides 24 10/100Mbps ports and 24 IEEE802.3af Power over Ethernet (PoE) ports for workstation.

Key Features

• IEEE802.3af Power over Ethernet (PoE) Standard Compliant.
• 24 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports.
• Built-in 24 PoE Port. ( Port 1 ~ Port 24).
• Supports PoE Power Maximum 15.4 watts for each PoE port.
• Supports POE Power Device(PD) classification identify.
• Store and Forward Switching Method.
• Built-in 2.75Mb RAM Data Buffer and 4K entries MAC Address Table.
• IEEE802.3x Flow Control for Full-Duplex: Back Pressure Flow Control for Half-Duplex Mode.
• Supports 802.1Q VLAN, Port-Based IEEE802.1p QoS.
• 1000Mbps Support based on Type of SFP, LC (option).
• No Special Networking Cable Required.
• Plug and Play.
• IEEE802.3at Standard Options.

Ordering Information
